FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer
FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer – product image
FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer – image 2
FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer – image 3
FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer – image 4
FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer – image 5

FOAMit 10 Gallon Mist Unit with 3 Nozzles and Timer

SKU MU-10N-3-TM
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

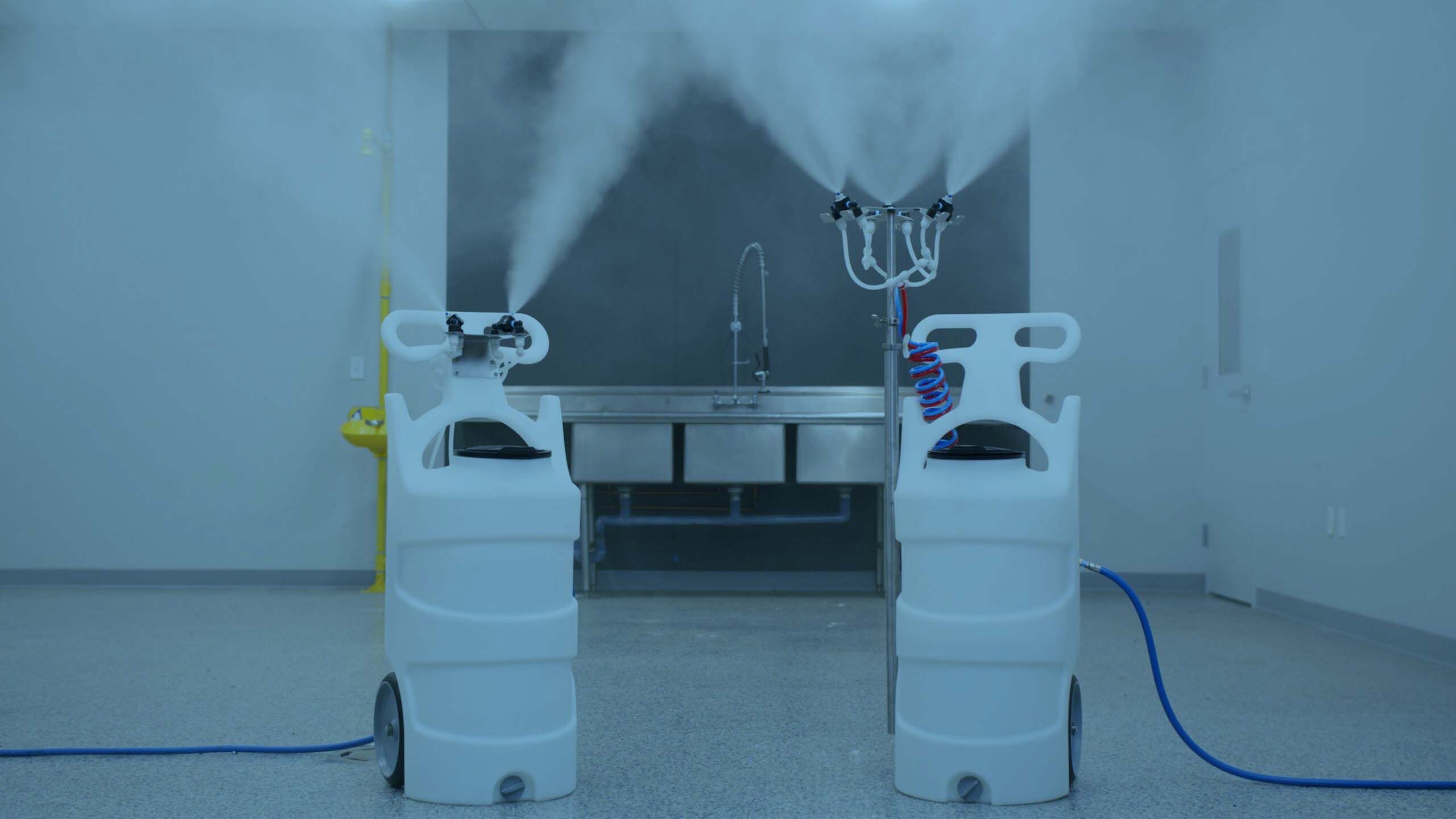

The FOAMit MU-10N-3-TM is a 37.9 litre portable mist unit powered by compressed air, with an electrically powered delay timer. It draws pre-mixed solution and applies it as a fine mist (15 microns at 3.4 bar) through three nozzles on a telescoping mast adjustable from 1.1–2.6m.

The delay timer lets operators clear a space before misting starts, which suits overnight treatment. A full tank runs for approximately 1 hour.

Key features

  • Efficient air consumption of approximately 255 l/min (9 cfm)
  • Easy-to-use single-shot delay timer for cleared spaces and overnight cleaning
  • Three misting nozzles on a telescoping mast to fill large or small spaces
  • See-through tank shows the product level
  • Quick-change pump
  • Hinged back plate for tool-free access to components
  • Hinged lid that cannot be lost
  • Front-facing drain for easy tank draining
  • In-line strainer protects the pump from debris

Options

  • Pump seals: Santoprene (standard), Viton (MU-10NV-3-TM) or Kalrez (MU-10NK-3-TM)
  • Colour-coded lid (9 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Mist unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix
Tank Capacity
37.9 litres

Technical information

Capacity: 37.9 litres

Power: Compressed air and electricity

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 14 l/h per nozzle (42 l/h total)

Droplet size: 15 microns at 3.4 bar (50 psi)

Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)

Run time: Approx. 1 hour from a full tank

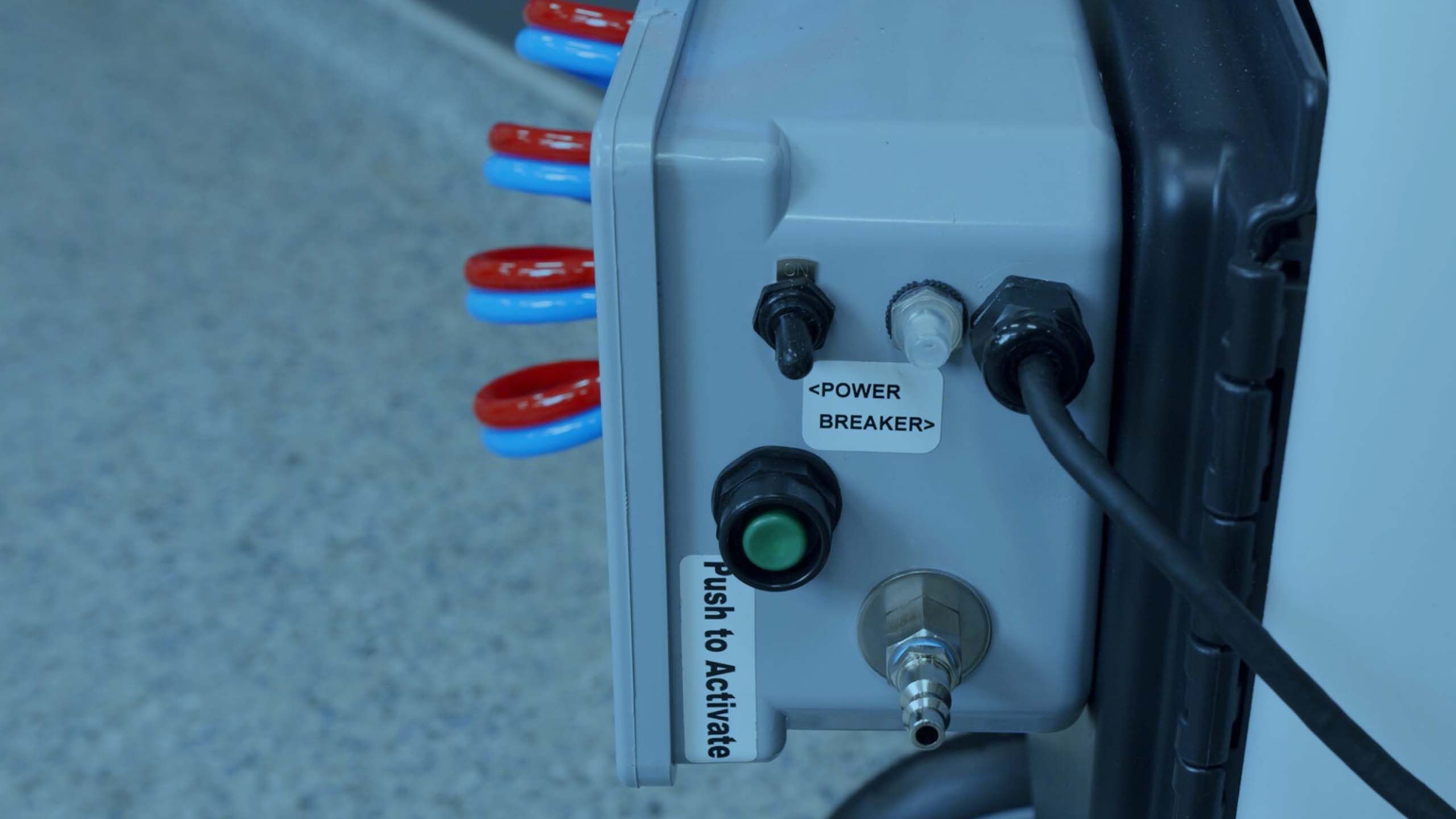

Timer: Single-shot timer with delay

Air supply: 3.4 bar (50 psi), 254.9 l/min (9 cfm)

Electrical supply: 120 V AC, 60 Hz, 2 A (GFCI-protected outlet)

Liquid temperature: 4.4–37.8°C

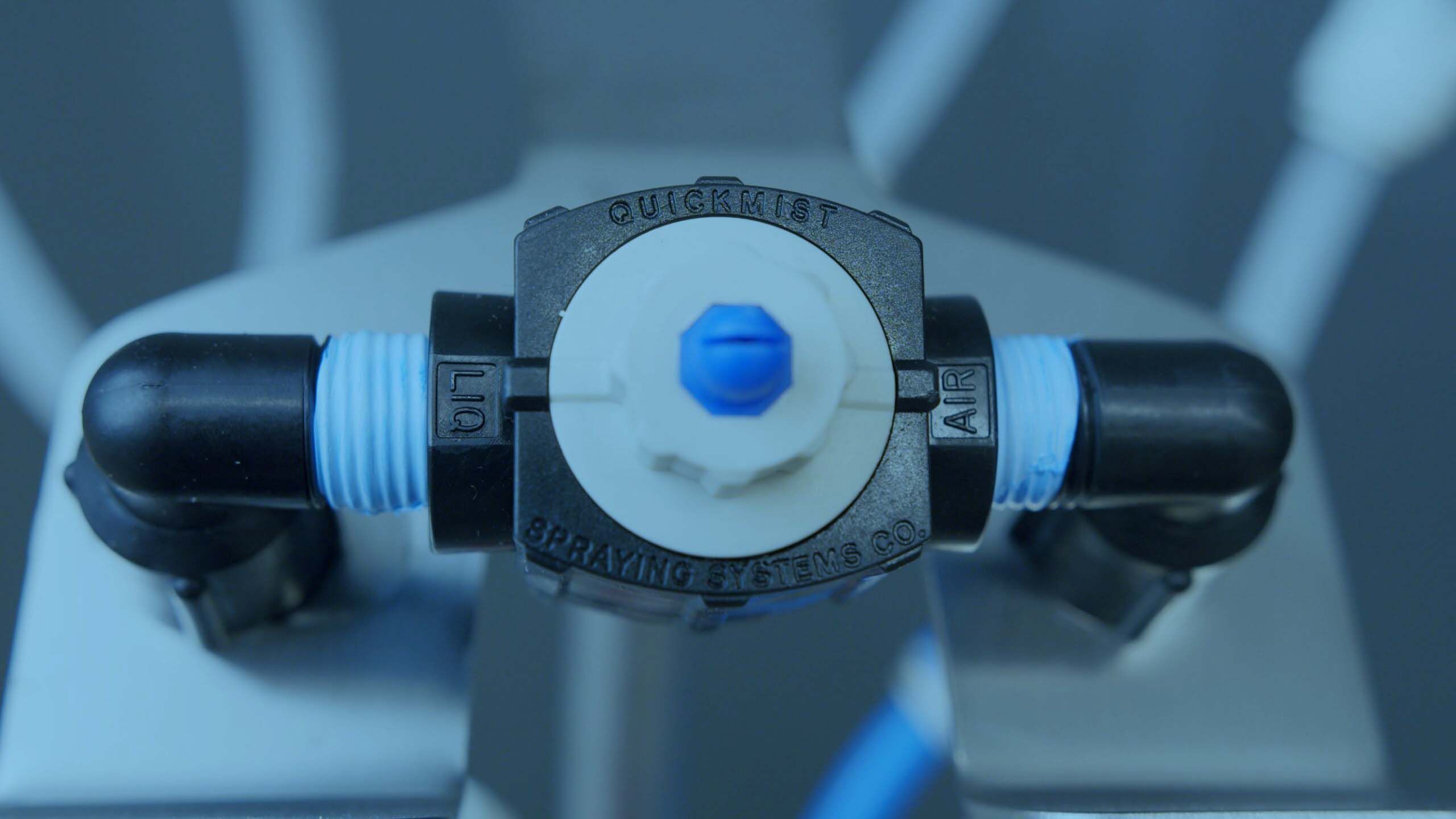

Nozzles: 3 pneumatic mist nozzles

Mast height range: 1.1–2.6m (3.5–8.5ft)

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm (10") non-marking

Height: 1040mm

Part number: MU-10N-3-TM

Supplied with: Mist unit with 3 nozzles on telescoping mast and timer

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
