FOAMit 10 Gallon Mist Unit with 3 Nozzles and Telescoping Mast
The FOAMit MU-10N-3 is a 37.9 litre portable mist unit powered by compressed air. It draws pre-mixed solution and applies it as a fine mist (15 microns at 3.4 bar) through three nozzles on a telescoping mast adjustable from 1.1–2.6m.

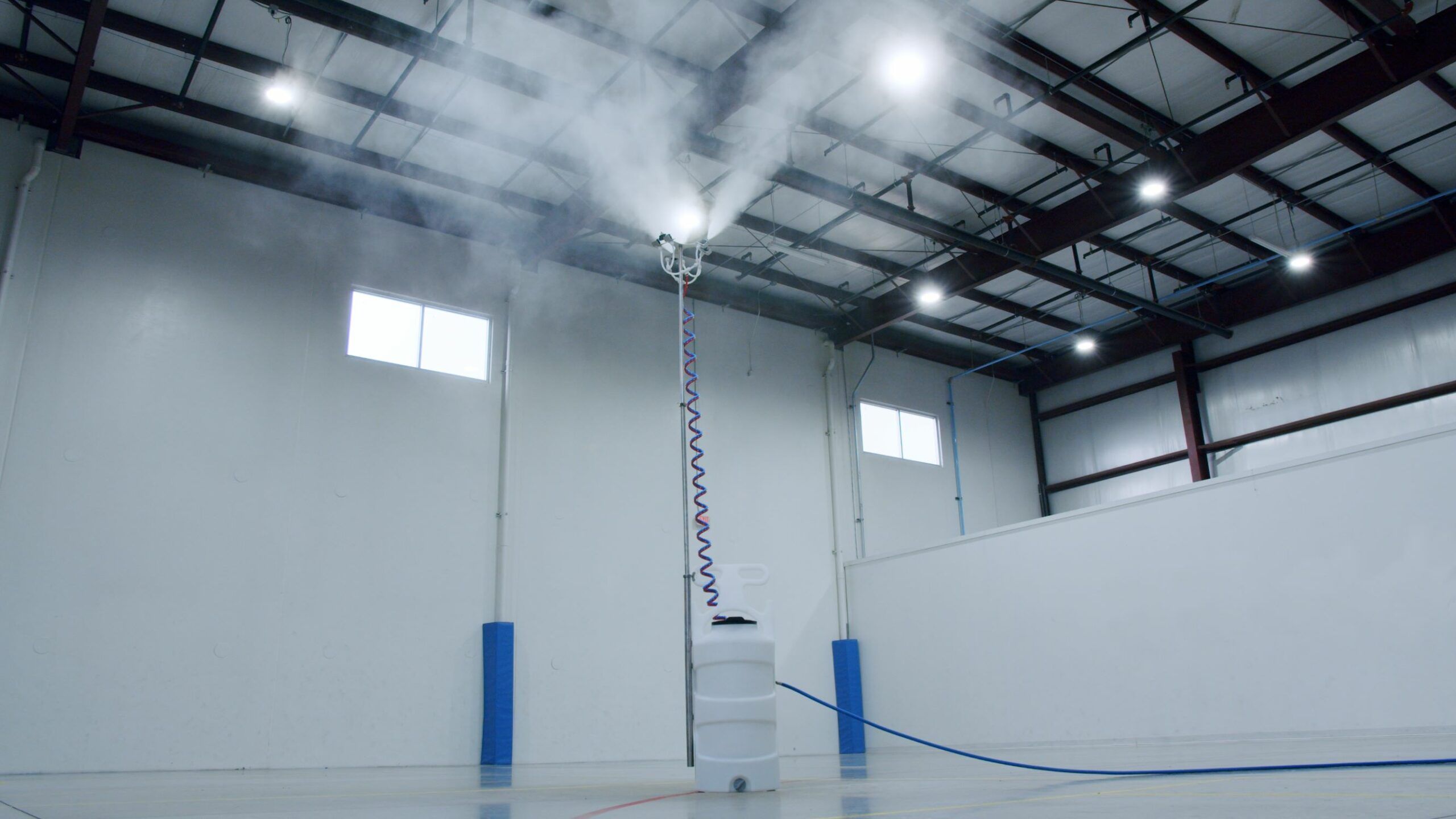

The mast helps the mist fill large or small spaces, and a full tank runs for approximately 1 hour.
For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.
Capacity: 37.9 litres
Power: Compressed air
Chemical pickup: Pre-mixed solution
Products drawn: One
Flow rate: 14 l/h per nozzle (42 l/h total)
Droplet size: 15 microns at 3.4 bar (50 psi)
Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)
Run time: Approx. 1 hour from a full tank
Air supply: 3.4 bar (50 psi), 254.9 l/min (9 cfm)
Liquid temperature: 4.4–37.8°C

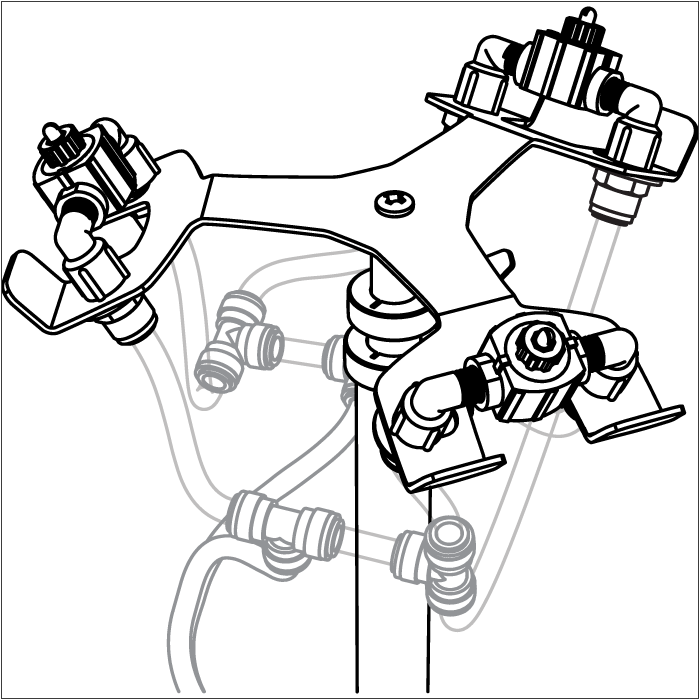

Nozzles: 3 pneumatic fog nozzles
Mast height range: 1.1–2.6m (3.5–8.5ft)
Suction line: 9.5mm (3/8") ID
Pump seals: Santoprene, Viton or Kalrez
Wheels: 2 × 254mm (10") non-marking
Height: 1040mm
Part number: MU-10N-3
Supplied with: Mist unit with 3 nozzles on telescoping mast, user manual
Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
