FOAMit 10 Gallon Mist Unit with 2 Nozzles

SKU MU-10N-2
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The FOAMit MU-10N-2 is a 37.9 litre portable mist unit powered by compressed air. It draws pre-mixed chemical solution and mists it through two handle-mounted pneumatic nozzles at a droplet size of 15 microns, running for approximately 1.5 hours from a full tank.

Air use is low at 198.3 l/min (7 cfm), and the see-through tank shows at a glance how much product has been dispensed.

Key features

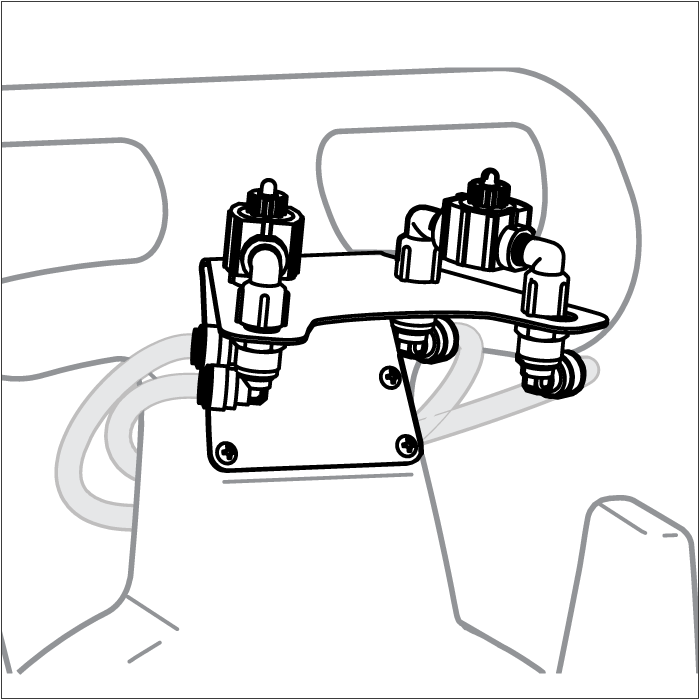

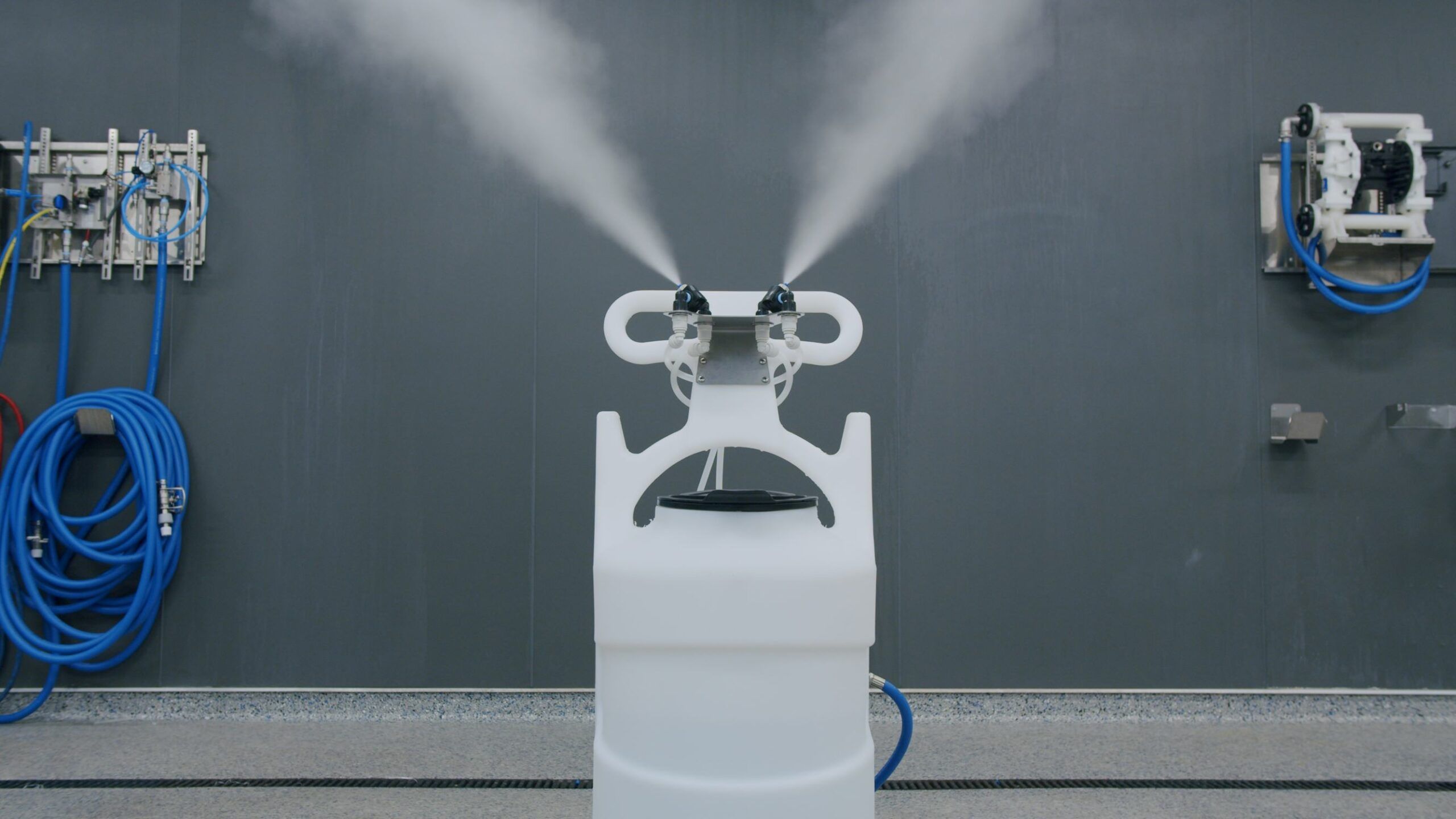

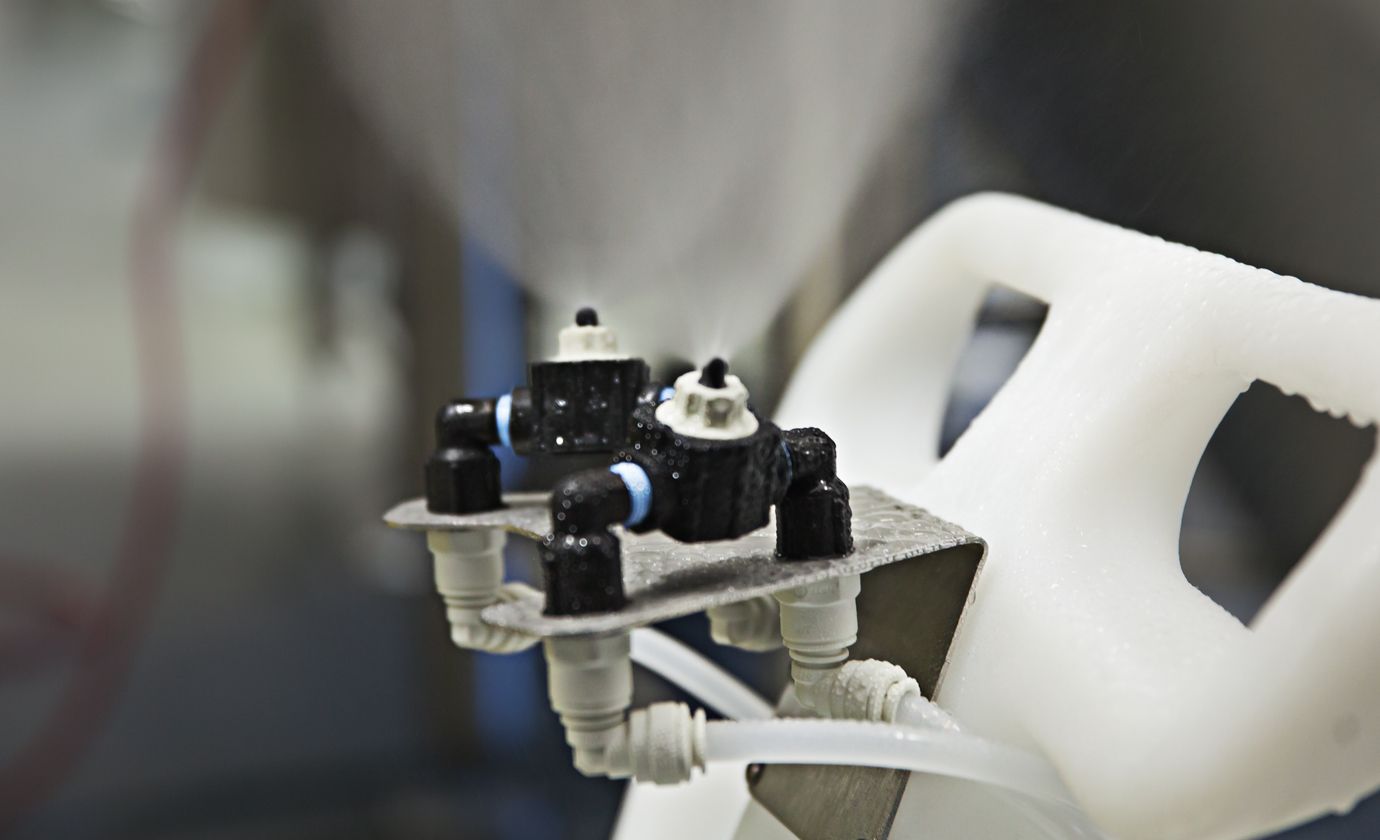

  • Two mist nozzles mounted on the unit handle, 15 micron droplets at 3.4 bar (50 psi)
  • Low air consumption of 198.3 l/min (7 cfm)
  • See-through 37.9 litre tank
  • Quick-change pump
  • Hinged back plate for tool-free access to components
  • Hinged lid that cannot be lost
  • Front-facing drain for easy tank draining
  • In-line strainer protects the pump from debris

Options

  • Pump seals: Santoprene (standard), Viton (MU-10NV-2) or Kalrez (MU-10NK-2)
  • Colour-coded lid (9 colours)

For help choosing the right unit or seals for your chemical, call 015395 66193 or email sales@flowjet.co.uk.

Specifications

Brand
Foamit
Machine Format
Mobile / Trolley
Unit Type
Mist unit
Pump Seals
Santoprene, Viton, Kalrez
Power Source
Air Operated
Chemical Pickup
Pre-mix
Tank Capacity
37.9 litres

Technical information

Capacity: 37.9 litres

Power: Compressed air

Chemical pickup: Pre-mixed solution

Products drawn: One

Flow rate: 14 l/hour per nozzle, 28 l/hour total

Droplet size: 15 microns at 3.4 bar (50 psi)

Coverage: 1 litre of solution covers approx. 28.3m³ (1,000 cu ft)

Air supply: 3.4 bar (50 psi), 198.3 l/min (7 cfm)

Run time: Approx. 1.5 hours from a full tank

Liquid temperature: 4.4–37.8°C

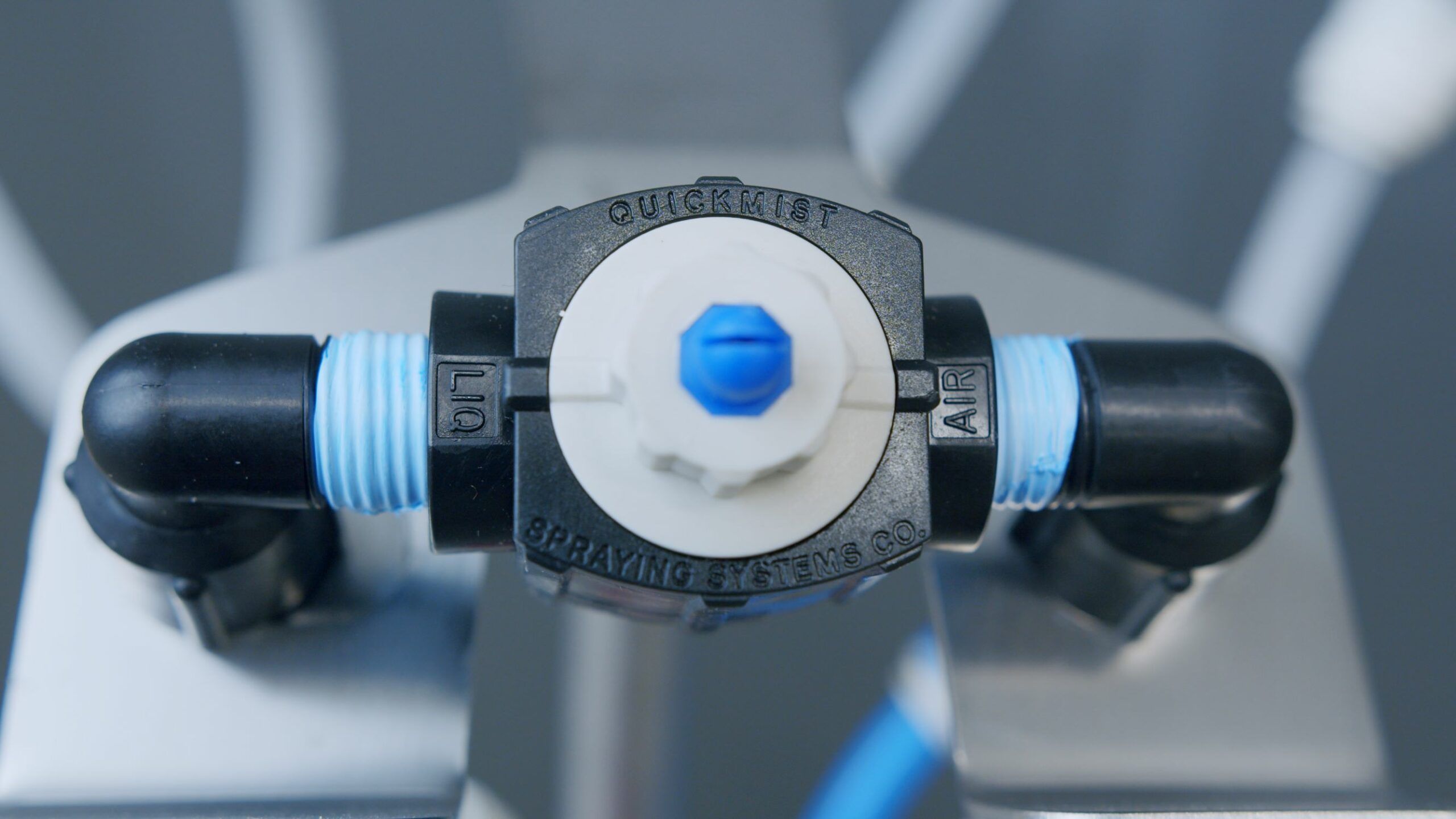

Nozzles: 2 × pneumatic mist nozzles, handle-mounted

Suction line: 9.5mm (3/8") ID

Pump seals: Santoprene, Viton or Kalrez

Wheels: 2 × 254mm (10") non-marking

Dimensions: Height 1040mm

Part number: MU-10N-2

Supplied with: Mist unit with 2 nozzles, user manual

Chemical compatibility: Chemicals must be suitable for this application and compatible with the unit materials and pump seals. Check the chemical's SDS.
