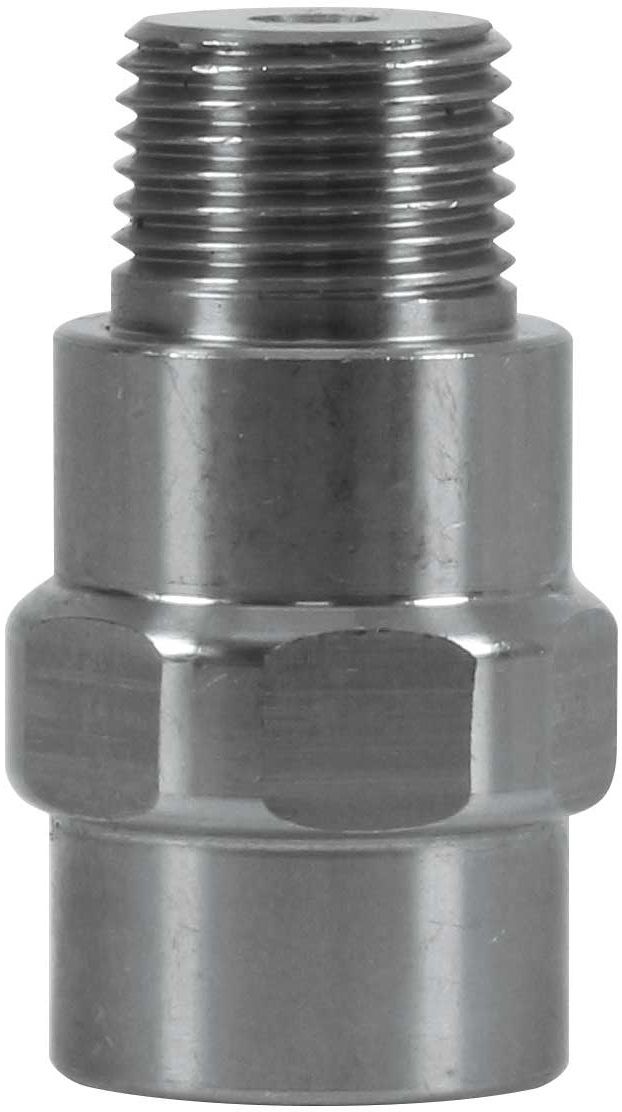

Flow Restrictor Body 3/4" M - 3/4" F

Stainless steel in-line flow restrictor body (water reducer) with a 3/4" male inlet and 3/4" female outlet, rated to 400 bar and 150°C, for areas that need strict control of water use.

Specification

• Part number: 710000000550
• Type: flow restrictor body
• Material: stainless steel
• Inlet: 3/4" BSP male
• Outlet: 3/4" BSP female
• Maximum pressure: 400 bar
• Maximum temperature: 150°C
• Length: 55mm

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.
