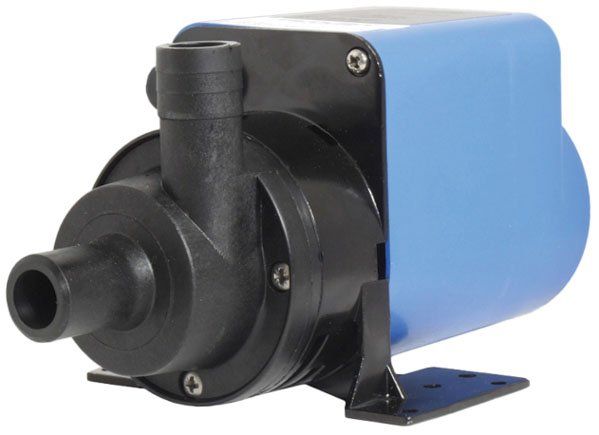

Flojet-Totton NDP25/2 Magnetic Drive Pump – 230V Seal-Less Chemical Circulation Pump (Part No: 113951)

Product Overview

The Flojet-Totton NDP25/2 is a compact, non-metallic magnetic drive centrifugal pump designed for the continuous transfer and recirculation of aggressive chemicals, chilled water, and high-purity liquids. With its seal-less, leak-free design and polypropylene construction, this pump ensures chemical resistance and low-maintenance performance, making it perfect for use in restricted spaces such as photographic, reprographic, X-ray, and industrial processing equipment.

Key Features

✅ Seal-less Design: Magnetic drive eliminates mechanical seals for leak-free, maintenance-friendly operation
✅ Non-Metallic Build: Polypropylene pump housing and EPDM O-ring for excellent chemical resistance
✅ Versatile Voltage Compatibility: Operates on 230V, 50/60Hz with low energy consumption (0.01kW motor)
✅ Compact & Lightweight: Ideal for installations where space is limited
✅ Continuous Duty Rated: Designed for non-stop operation in recirculation systems
✅ Ingress Protection: Rated IP22 for safe indoor use
✅ Port Size: 22mm plain inlet and outlet ports for easy hose connection

Performance Specifications

Max Head:
• 1.6 metres @ 50 Hz
• 2.1 metres @ 60 Hz

Max Flow Rate:
• 27 Lpm @ 50 Hz
• 21 Lpm @ 60 Hz

Power Supply: 230V AC, 50/60 Hz
Motor Power: 0.01 kW
Pump Housing: Polypropylene
O-Ring Material: EPDM

Applications

The NDP25/2 Magnetic Drive Pump is ideal for:
• Continuous circulation of aggressive chemicals
• Handling of chilled water and high-purity liquids
• Use in photographic, X-ray, reprographic, and industrial processing equipment
• Applications where compact size and reliability are critical

Why Choose This Pump?

The Flojet-Totton NDP25/2 delivers quiet, efficient, and chemical-resistant performance in a leak-proof design. With no mechanical seals to wear, this pump is perfect for sensitive fluid handling tasks and environments requiring high cleanliness and reliability.

Order Now

Get high-performance fluid circulation in a compact form with the Flojet-Totton NDP25/2 Magnetic Drive Pump – available now at Flowjet Cleaning Equipment.
