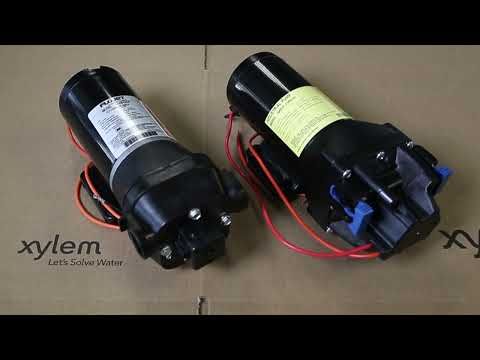

Product Overview

The Flojet VersiJet Series 4-Chamber Bypass Pump – 24V is a high-performance industrial diaphragm pump designed for demanding fluid transfer, spraying, circulation, filtration, and dispensing applications. Featuring a robust 4-chamber design, this pump delivers up to 13.2 litres per minute with smooth, efficient flow and reduced pulsation.

Equipped with an internal 3.4 Bar bypass system, integrated backflow preventer, and durable Santoprene diaphragm with Viton check valves, the Q352F-16N7-2P is built for reliability in commercial, agricultural, industrial, and OEM environments. Its self-priming capability and ability to run dry without damage make it an excellent choice for continuous-duty applications.

Key Features

• Direct replacement for discontinued Flojet R4105-343
• Maximum flow rate: 13.2 L/min
• 24 Volt DC motor
• Current draw: 5.3 Amps
• Internal bypass set at 3.4 Bar
• No pressure switch for continuous operation
• 4-chamber diaphragm design for smoother flow
• Santoprene diaphragm for excellent durability
• Viton check valves for enhanced chemical resistance
• Self-priming up to 2.4 metres
• Integrated backflow preventer
• Quick Connect ports supplied with 1/2" hose barb fittings
• Glass-filled polypropylene pump housing
• Suitable for fluid temperatures from 4°C to 60°C
• Can run dry without damage
• Heavy-duty coated motor for extended service life
• Quiet and efficient operation

Applications

Ideal for:

• Chemical transfer systems
• Agricultural spraying equipment
• Industrial washdown systems
• Fluid circulation applications
• Cooling systems
• Filtration equipment
• Water transfer systems
• Dispensing and dosing applications
• OEM machinery installations

Why Choose This Pump?

The Flojet VersiJet Q352F-16N7-2P offers superior performance compared to traditional 3-chamber pumps, providing smoother flow, quieter operation, and improved durability. The integrated bypass system helps protect the pump and connected equipment, while the Viton valve construction offers excellent compatibility with a wide range of chemicals. Designed for demanding environments, this pump delivers reliable performance even during extended operation.

Order Now

Upgrade your fluid handling system with the Flojet VersiJet Series Q352F-16N7-2P 24V Bypass Pump. Available from Flowjet Cleaning Equipment with expert technical support and fast UK delivery.
