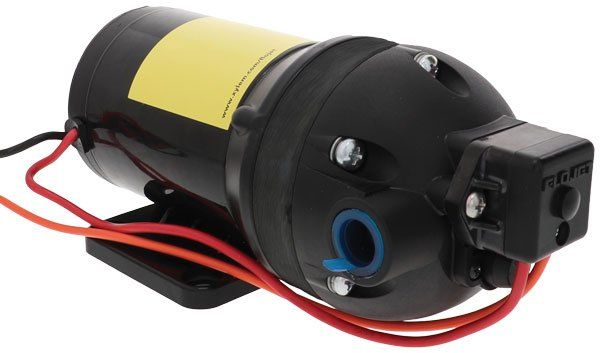

Flojet NextGen Triplex Series Demand Pump - 24V T152F-71CS-1P

Flojet NextGen Triplex Series demand diaphragm pump for 24 Volt DC supplies. It has an integrated pressure/demand switch set at 6.9 bar, an internal bypass and a maximum flow of 5.7 LPM.

Specification

• 6.9 bar switch setting
• 5.7 LPM max flow
• Internal bypass
• 24 Volt DC, 3.5 amps
• Santoprene diaphragm
• EPDM check valve
• 3/8" NPTF ports
• Self-priming, up to 2.4m
• 4 to 60°C fluid temperature

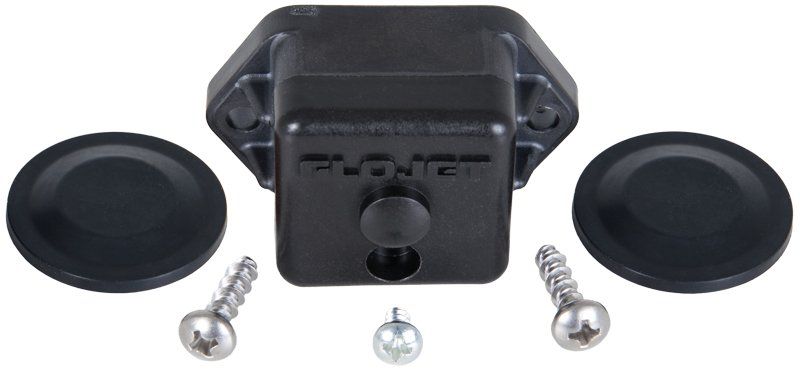

• Integrated pressure/demand switch
• Glass filled nylon pump housing
