Flojet NextGen Triplex Series Bypass Pump - 24V T152F-36N7-1P

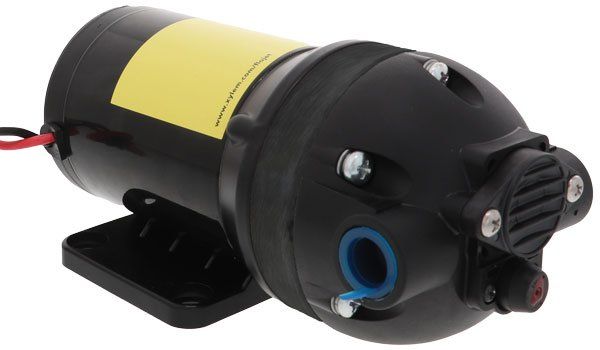

Flojet NextGen Triplex Series Bypass Pump - 24V T152F-36N7-1P – image 1
Flojet

Flojet NextGen Triplex Series Bypass Pump - 24V T152F-36N7-1P

SKU T152F-36N7-1P
Max pressure
3.4 bar
Max flow
5.7 LPM
£250.96 ex VAT
£301.15 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Flojet NextGen Triplex Series bypass diaphragm pump for 24 Volt DC supplies. It has a 3.4 bar internal bypass with integrated back flow preventer, no pressure switch, and a maximum flow of 5.7 LPM.

Specification

  • 3.4 bar bypass
  • 5.7 LPM max flow
  • No pressure switch
  • 24 Volt DC, 2.5 amps
  • Santoprene diaphragm
  • Viton check valve
  • 3/8" NPTF ports
  • Self-priming, up to 2.4m
  • 4 to 60°C fluid temperature
  • Internal bypass with integrated back flow preventer
  • Glass filled polypropylene pump housing

Flojet NextGen Triplex Series 24V DC bypass diaphragm pump, 5.7 litres per minute, 3.4 bar bypass, Santoprene diaphragm, Viton valve.

Specifications

Brand
Flojet
Max Pressure Rating
3.4 bar
Max Flow Rating
5.7 LPM
Temperature
60°C
Electrical Supply
24 Volts
Diaphragm Material
Santoprene
Priming
Self Priming
Weight
3.05 kg

Technical information

3.4 Bar bypass

5.7 Lpm max flow

No pressure switch

24 Volt DC, 2.5 amps

Santoprene diaphragm

Viton check valve

3/8"NPTF ports

Self-priming, up to 2.4m

4 to 60°C fluid temperature

Internal bypass w/ integrated back flow preventer

Glass filled polypropylene pump housing
