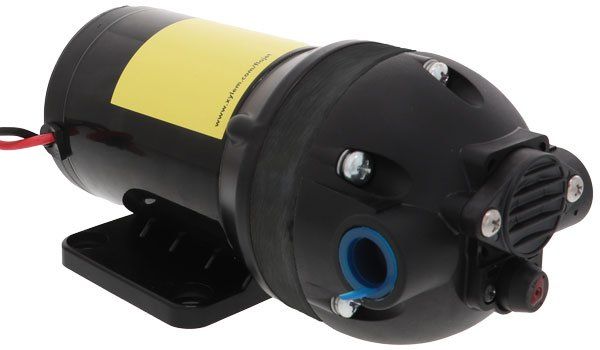

Flojet NextGen Triplex Series Bypass Pump - 24V T152F-31N7-1P

Flojet NextGen Triplex Series bypass diaphragm pump for 24 Volt DC supplies. It has a 3.4 bar internal bypass with integrated back flow preventer, no pressure switch, and a maximum flow of 5.7 LPM.

Specification

• 3.4 bar bypass
• 5.7 LPM max flow
• No pressure switch
• 24 Volt DC, 2.5 amps
• Santoprene diaphragm
• EPDM check valve
• 3/8" NPTF ports
• Self-priming, up to 2.4m
• 4 to 60°C fluid temperature
• Internal bypass with integrated back flow preventer
• Glass filled polypropylene pump housing
