Product Overview

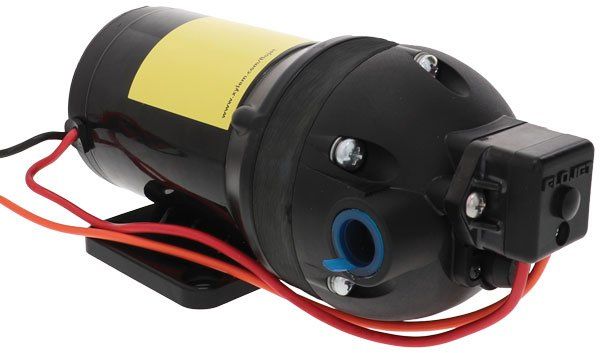

The Flojet NextGen Triplex Series Demand Pump 12V (Part No. T151F-71CS-1P) is a high-quality industrial diaphragm pump designed to provide reliable automatic water and fluid delivery across a wide range of commercial, agricultural and OEM applications. Developed as the successor to the highly respected Duplex II series, the NextGen Triplex range delivers improved durability, quieter operation and longer service life.

Featuring an integrated demand pressure switch with a 6.9 Bar (100 PSI) shut-off setting and an internal bypass, the pump automatically starts and stops as flow is required, maintaining consistent system pressure while reducing unnecessary motor wear.

Its Santoprene diaphragm, EPDM check valves, and glass-filled nylon housing provide excellent chemical resistance and long-term reliability. The pump is self-priming up to 2.4 metres and is capable of running dry for short periods without damage, making it ideal for mobile and fixed installations.

Key Features

• Genuine Flojet NextGen Triplex industrial demand pump
• 12 Volt DC permanent magnet motor
• Maximum flow rate of 5.7 LPM
• Pressure switch setting: 6.9 Bar (100 PSI)
• Integrated automatic pressure/demand switch
• Internal bypass for smoother operation
• Self-priming up to 2.4 metres
• Santoprene diaphragm for excellent durability
• EPDM check valves suitable for a wide range of fluids
• Glass-filled nylon pump housing
• TENV motor with thermal overload protection
• Quiet, efficient operation
• Compact design for easy installation
• Suitable for intermittent duty applications

Technical Specification

Typical Applications

The Flojet NextGen Triplex pump is suitable for numerous industrial and commercial applications including:

• Agricultural sprayers
• Water transfer systems
• Pressure spraying equipment
• Chemical dosing
• Cooling systems
• Filtration systems
• Beverage and food processing equipment
• Mobile service vehicles
• Caravan and marine water systems
• OEM equipment

Why Choose the Flojet NextGen Triplex Pump?

Replacing the proven Duplex II range, the NextGen Triplex series benefits from improved diaphragm technology, enhanced motor protection and quieter operation while maintaining the dependable performance Flojet pumps are renowned for. Its automatic demand operation, compact footprint and robust construction make it an excellent choice for professional fluid handling applications.

Need Help Choosing the Correct Flojet Pump?

Our experienced team can help you select the correct Flojet pump for your application, advise on compatibility, and supply genuine replacement parts and accessories.
