Flojet LFP Series Demand PumpsFlojet LFP Series Demand Pumps

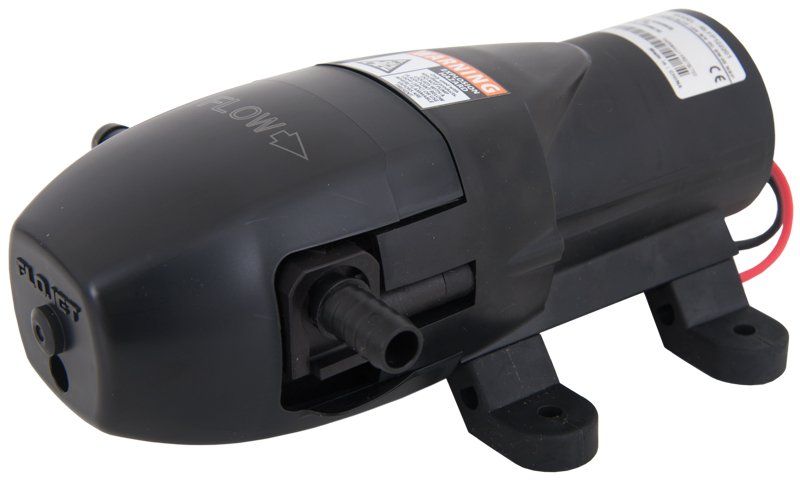

Flojet LFP Series Demand Pump - 24V RLFP222202D
Flojet LFP Series Demand Pump - 24V RLFP222202D
Flojet

Flojet LFP Series Demand Pump - 24V RLFP222202D

SKU RLFP222202D
Max pressure
1.7 bar
Max flow
3.8 LPM
£111.17 ex VAT
£133.40 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Flojet LFP Series 24V DC demand diaphragm pump, rated to 3.8 litres per minute with a 2.4 bar pressure switch setting and a maximum operating pressure of 1.7 bar. The integrated pressure switch starts and stops the pump on demand.

It has a polypropylene housing, a Santoprene diaphragm and an EPDM check valve, and 3/8" hose barb ports. It has no bypass, self-primes up to 1.8m and draws up to 2 amps. It is rated for intermittent duty.

Specification

Part numberRLFP222202D
BrandFlojet
ModelLFP Series, RLFP222202D
Voltage24V DC
Maximum current2 amps
Maximum flow3.8 litres per minute
Pressure switch setting2.4 bar
Maximum operating pressure1.7 bar
Pressure switchIntegrated
BypassNone
DiaphragmSantoprene
Check valveEPDM
HousingPolypropylene
Ports3/8" hose barb
Self-primingUp to 1.8m
Duty cycleIntermittent

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Flojet LFP Series 24V demand pump, 3.8 litres per minute, 2.4 bar switch, Santoprene diaphragm, EPDM valve.

Specifications

Brand
Flojet
Max Pressure Rating
1.7 bar
Max Flow Rating
3.8 LPM
Electrical Supply
24 Volts
Diaphragm Material
Santoprene
Weight
0.97 kg

Technical information

2.4 Bar switch setting

1.7 Bar max operating pressure

3.8 Lpm max flow

No bypass

24 Volt DC, 2A max

EPDM check valve

Santoprene diaphragm

3/8" hose barb ports

Self-priming, up to 1.8m

Integrated pressure/demand switch

Polypropylene housing

Intermittent duty cycle

Compare similar products

Detail
This product

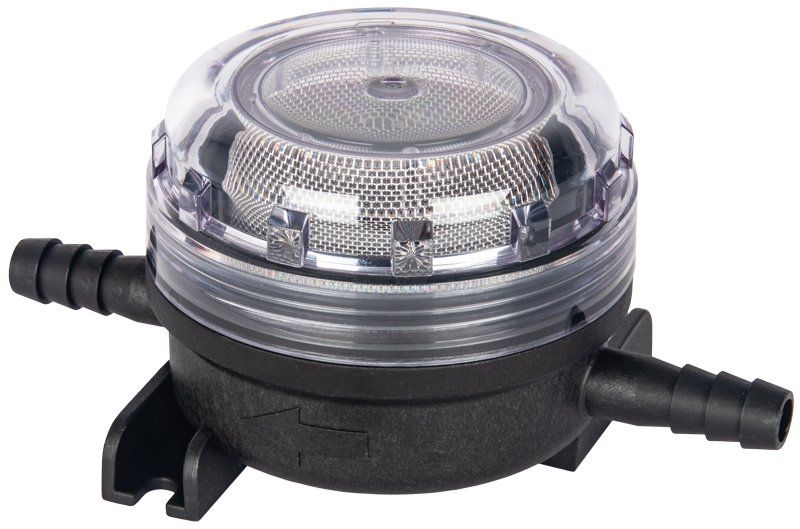

Flojet 1740 Series Inline Filter 3/8" Hose Tail
Price£111.17 ex VAT
£133.40 inc VAT
£29.55 ex VAT
£35.46 inc VAT
Max pressure1.7 bar5 bar
Max flow3.8 LPM–
AvailabilityIn stockIn stock

Documents

RLFP Technical DataRLFP Technical Data
RLFP Series User ManualRLFP Series User Manual
Data Sheet pdf_link_2

Flojet RLFP Technical Data.pdf

Data Sheet pdf_link_3

Flojet RLFP Series User Manual.pdf
