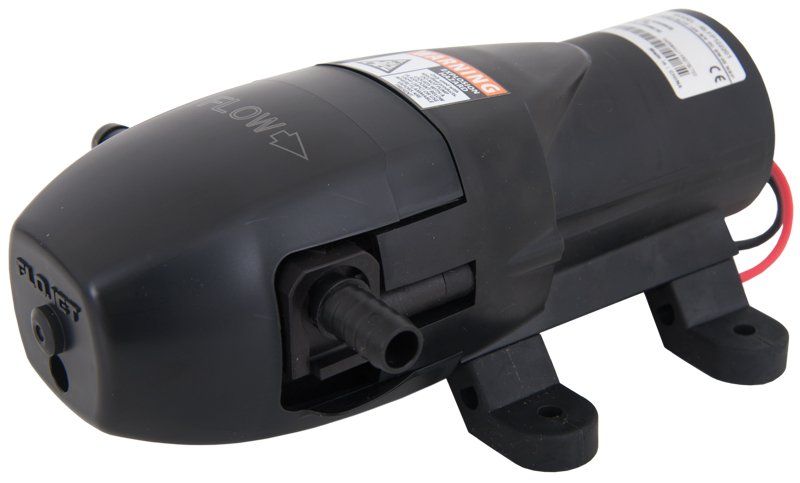

Flojet LFP Series Demand Pump – 24V (Part No: RLFP222201D)

Product Overview

The Flojet LFP Series Demand Pump – RLFP222201D is a compact, low-flow 24V diaphragm pump engineered for precision delivery in spraying, cooling, filtration, and chemical transfer applications. With a 3.8 Lpm max flow rate, 2.4 Bar switch setting, and Santoprene diaphragm with Viton check valves, this model provides excellent chemical compatibility, reliable performance, and smooth demand-based operation. Ideal for intermittent duty and systems requiring controlled pressure without bypass.

Key Features

✅ Pressure Switch Setting: 2.4 Bar (automatic cut-off)
✅ Max Operating Pressure: 1.7 Bar
✅ Max Flow Rate: 3.8 Lpm
✅ Voltage: 24 Volt DC (2A max draw)
✅ Self-Priming: Up to 1.8 metres vertical lift
✅ Diaphragm Material: Santoprene – long-lasting and chemical resistant
✅ Check Valve Material: Viton – excellent for aggressive fluid compatibility
✅ Ports: 3/8" hose barb connections
✅ Pump Housing: Polypropylene – corrosion and chemical resistant
✅ Switch Type: Integrated demand/pressure switch for automated start/stop
✅ Duty Cycle: Intermittent use

Applications

The Flojet RLFP222201D is ideal for:
• Chemical washdown systems
• Evaporative cooling
• Automotive fluid transfer and exchange
• Fogging, misting, and boom sprayers
• General industrial fluid handling
• Beverage dispense and transfer systems
