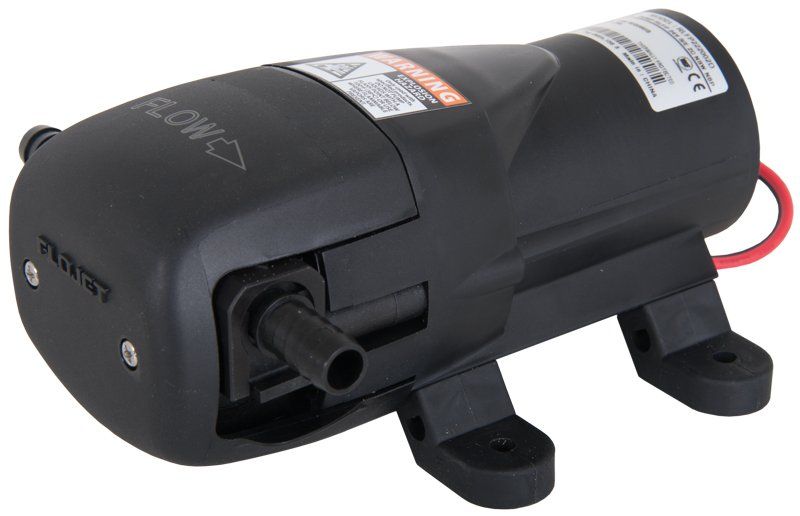

Flojet LF Series Demand Pump – 24V (Part No: RLFP222002D)

Product Overview

The Flojet LF Series 24V Pump (RLFP222002D) is a compact, self-priming diaphragm pump engineered for light-duty fluid transfer, spraying, and cooling applications. With a maximum pressure of 2.75 Bar and 3.8 Lpm flow rate, this model is well-suited for systems that require external or manual control, as it is supplied without a pressure switch or bypass. Built with Santoprene diaphragm and EPDM check valves, it offers dependable chemical resistance for intermittent duty in a wide range of environments.

Key Features

✅ Max Operating Pressure: 2.75 Bar
✅ Max Flow Rate: 3.8 Lpm
✅ Voltage: 24 Volt DC (3.5A max draw)
✅ No Pressure Switch: Suitable for externally controlled systems
✅ No Bypass: Offers consistent pressure regulation
✅ Self-Priming: Up to 1.8 metres vertical lift
✅ Diaphragm: Santoprene – flexible and chemical-resistant
✅ Check Valve: EPDM – compatible with many light chemicals and water-based fluids
✅ Ports: 3/8" hose barb
✅ Pump Housing: Polypropylene – lightweight and corrosion-resistant
✅ Duty Cycle: Intermittent use

Applications

Ideal for:
• General industrial fluid transfer
• Evaporative cooling systems
• Chemical washdown systems
• Fogging / misting systems
• Automotive fluid exchange
• Boom sprayers and beverage dispensing
• OEM integration where system control is external

Why Choose This Pump?

The Flojet RLFP222002D is an excellent choice for low-flow, precision-controlled systems where an integrated pressure switch or bypass is not required. Its compact footprint, chemical compatibility, and efficient 24V operation make it suitable for a wide range of applications requiring intermittent but dependable performance.
