Float Valves & Water Ball Valves Float Valves & Water Ball Valves
Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM
Nilfisk float valve assembly with adjustable black float and inlet filter for Neptune and MH Series pressure washers
Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM – image 2
Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM – image 3
FLOAT VALVE KEW - ALTO
Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM – image 5
Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM – image 6
Nilfisk Spares

Nilfisk Float Valve Assembly with Adjustable Float and Inlet Filter 101117784, 22 LPM

SKU 701405
Max flow
22 LPM
Max temperature
60°C
Inlet
¾" BSP Male
Outlet
¾" BSP Male · Thread chart
£53.60 ex VAT
£64.32 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Float valve assembly with an adjustable black float and a water inlet filter, for controlling the water level in the header tank of Nilfisk pressure washers. It shuts off the supply once the tank reaches the set level, and the filter keeps debris out of the tank.

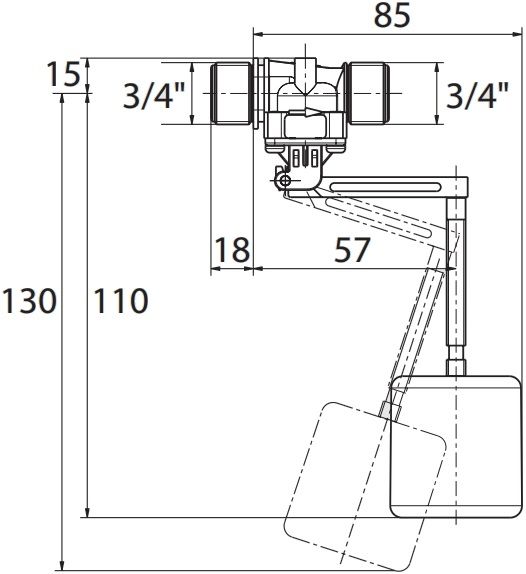

It has a 3/4" BSP male connection, works from 0.3 to 10 bar with a maximum flow of 22 litres per minute and a maximum temperature of 60°C, and is WRAS approved. It is 110mm high and 74mm deep. It weighs 0.06kg.

Specification

Part number701405
BrandNilfisk Spares
TypeFloat valve with adjustable float and inlet filter
Maximum pressure0.3 to 10 bar
Maximum flow22 litres per minute
Maximum temperature60°C
Brand / SeriesNilfisk Spares
ReplacesNilfisk 101117784
Connection3/4" BSP male
Height110mm
Depth74mm
ApprovalWRAS approved
SuitsReplaces Nilfisk part 101117784 on Nilfisk Neptune range and MH Series pressure washers.
Weight0.06kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
Nilfisk Spares
Max Flow Rating
22 LPM
Inlet
¾" BSP Male
Outlet
¾" BSP Male
Max Temperature Rating
60°C
Length
110mm
Colour
White
Weight
0.06 kg

Technical information

Maximum pressure: 0.3 to 10 bar

Maximum flow: 22 litres per minute

Maximum temperature: 60°C

Connection: 3/4" BSP male

Type: Float valve with adjustable float and inlet filter

Brand / Series: Nilfisk Spares

Height: 110mm

Depth: 74mm

Approval: WRAS approved

Weight: 0.06kg

Replaces: Nilfisk 101117784

Suits: Replaces Nilfisk part 101117784 on Nilfisk Neptune range and MH Series pressure washers.

Compare similar products

Detail
This product
NITO Series 6 Quick Release Coupling – Chrome Brass x 3/4" Female (6350), 25 Bar
Price£53.60 ex VAT
£64.32 inc VAT
£12.80 ex VAT
£15.36 inc VAT
Max pressure–25 bar
Max flow22 LPM–
Max temperature60°C–
Inlet¾" BSP MaleNito Quick Release 6 Series ⌀ 19.4 mm
Outlet¾" BSP Male¾" BSP Female
AvailabilityIn stockIn stock
