Electric Motor Bellhousing - 160/180F

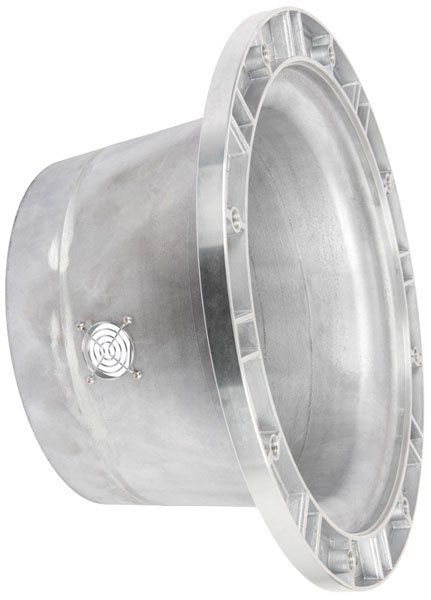

Electric Motor Bellhousing - 160/180F – image 1

Electric Motor Bellhousing - 160/180F

SKU 602-1105
£247.59 ex VAT
£297.11 inc. VAT
Out of stockWe are sorry, this product is currently out of stock. Call 015395 66193 for availability.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Cast aluminium bellhousing for mounting Interpump IPG 70, 71 and 72S series pumps with an "A" flange to an IEC 160 or 180 frame electric motor with a B35 flange. It measures 350mm in diameter by 228mm long and has inspection and drain holes.

Specification

  • Part number: 602-1105
  • For IPG 70/71/72S pumps with "A" flange
  • To IEC 160/180F B35 motors
  • ø350x228L, mm
  • Cast aluminium construction
  • With inspection and drain holes
  • Suitable for IPG pumps with 70/71/72 series power frame

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Specifications

Weight
5 kg

Technical information

For IPG 70/71/72S pumps with "A" flange

To IEC 160/180F B35 motors

ø350x228L, mm

Cast aluminium construction

With inspection and drain holes

Suitable for IPG pumps with 70/71/72 series power frame
