Ehrle HSC1140 Oil-Fired Static Hot Pressure Washer, 415V, 180 Bar, 16.7 LPM

Ehrle HSC 1140 Oil Hot Static Pressure Washer – 415V | 180 Bar | 16.7 LPM

Product Overview:

The Ehrle HSC 1140 Oil is a high-quality industrial hot static pressure washer, designed for continuous-dutyperformance in harsh environments. Built around a rugged powder-coated steel frame, this floor-standing unit is suitable for fixed installations—indoors or outdoors—and thrives in commercial and industrial cleaning operations.

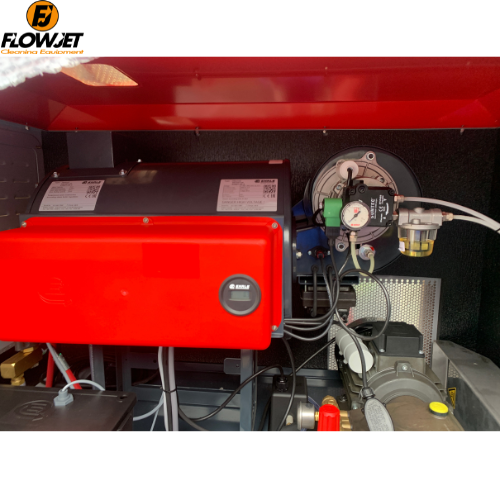

Delivering an impressive 180 Bar at 16.7 LPM, this unit is powered by a Triplex brass-head pump with ceramic pistons, paired with a diesel-fired burner and advanced Etronic II controls for smooth, intelligent operation. With built-in frost protection, flame monitoring, and total shutdown functionality, the HSC 1140 Oil is packed with safety and efficiency features.

Now with an integrated 60-litre diesel tank and dedicated compartments for 2 x 20-litre detergent containers, this machine is designed for all-day operation and effortless chemical management.

Key Features and Benefits:

• Heavy-Duty Powder-Coated Steel Frame – Floor-mountable and weatherproof

• Integrated 60L Diesel Tank – Built-in capacity for extended hot water cleaning sessions

• Separate Detergent Compartments – Holds 2 x 20L chemical containers for efficient dosing

• Triplex Brass-Head Pump with Ceramic Pistons – High performance with long service life

• Etronic II Smart Control System – Start/Stop function with adjustable timed shutdown

• Total Switch-Off Feature – Automatically powers down after pre-set time (default 20 mins)

• High-Pressure Chemical Application – For deep cleaning and degreasing tasks

• Optical Flame Monitoring with Magic Eye – Built-in safety with photoelectric sensor

• OPH Hour Counter with Service Alerts – Helps manage maintenance intervals

• Frost Protection System – Keeps internal components safe during freezing conditions

• Low Water Sensor and Full Insulation – Prevents damage from dry running or temperature drops

• Quick Release Lance and Trigger System – Easy accessory changes for maximum uptime

Performance Specifications:

• Application: Heavy-Duty / Industrial

• Flow Rate: 16.7 Litres Per Minute

• Operating Pressure: 30 to 180 Bar

• Max Pressure: 200 Bar

• Power Supply: 415V

• Pump Drive: Direct Drive

• Pump Type: Triplex with Brass Head and Ceramic Pistons

• Hot Water Generation: Diesel-Fired Burner

• Integrated Diesel Tank: 60 Litres

• Chemical Storage: Space for 2 x 20L Detergent Containers

• Mounting: Static Floor Standing

• Operating Speed: 1450 RPM

• Control System: Etronic II with Shutdown Delay

• Nozzle Size: 055
