Ehrle KD523 Standard Cold Water Pressure Washer, 230V, 140 Bar, 10 LPM

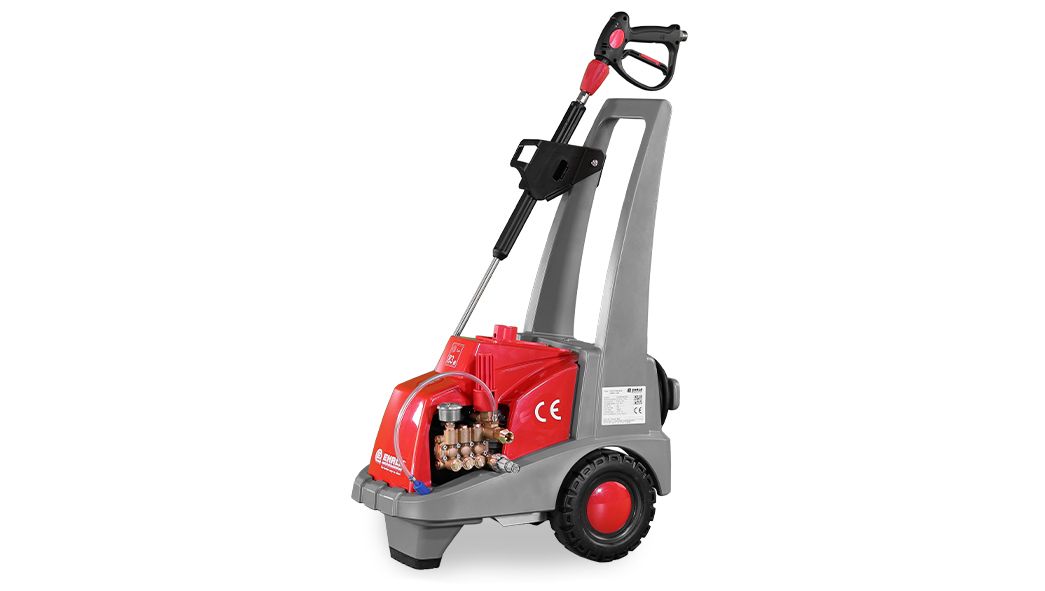

Ehrle KD523 Standard Cold Water Pressure Washer – 230V – 140 Bar – 10 LPM

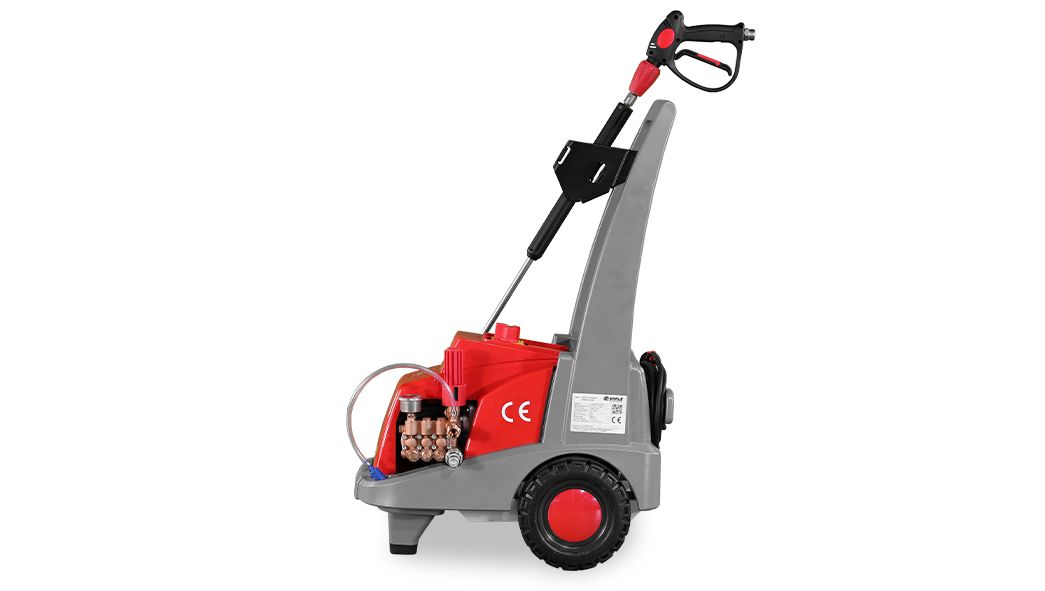

Ehrle KD523 Standard Cold Water Pressure Washer – 230V – 140 Bar – 10 LPM – view 2

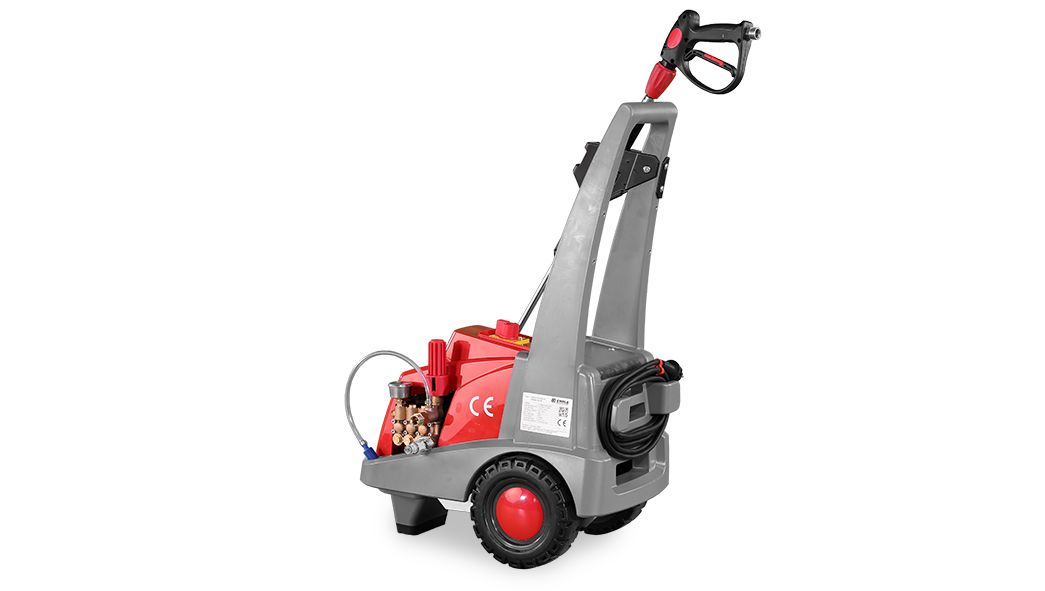

Ehrle KD523 Standard Cold Water Pressure Washer – 230V – 140 Bar – 10 LPM – view 3

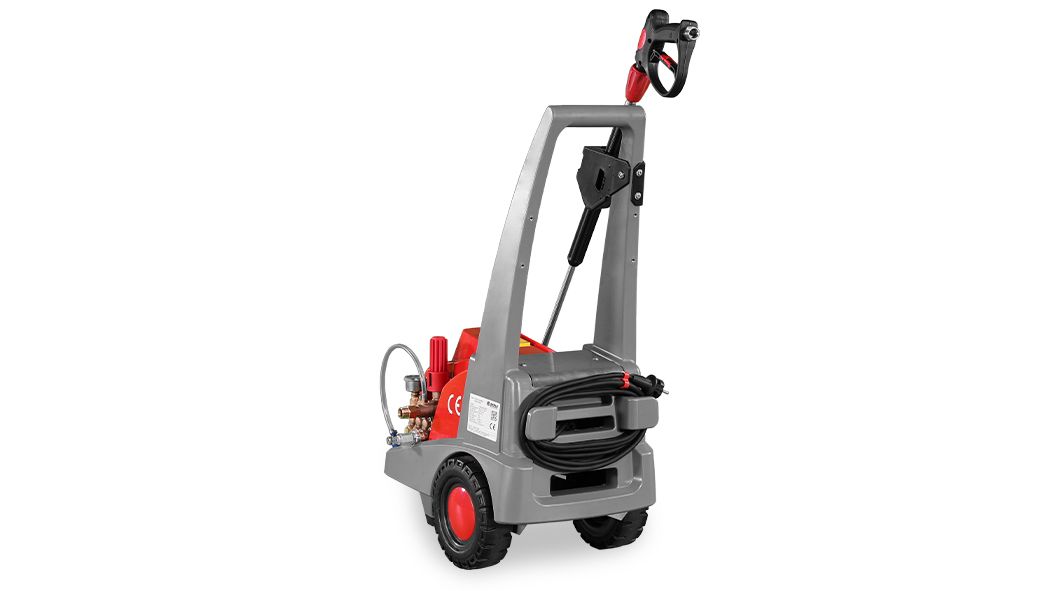

Ehrle KD523 Standard Cold Water Pressure Washer – 230V – 140 Bar – 10 LPM – view 4

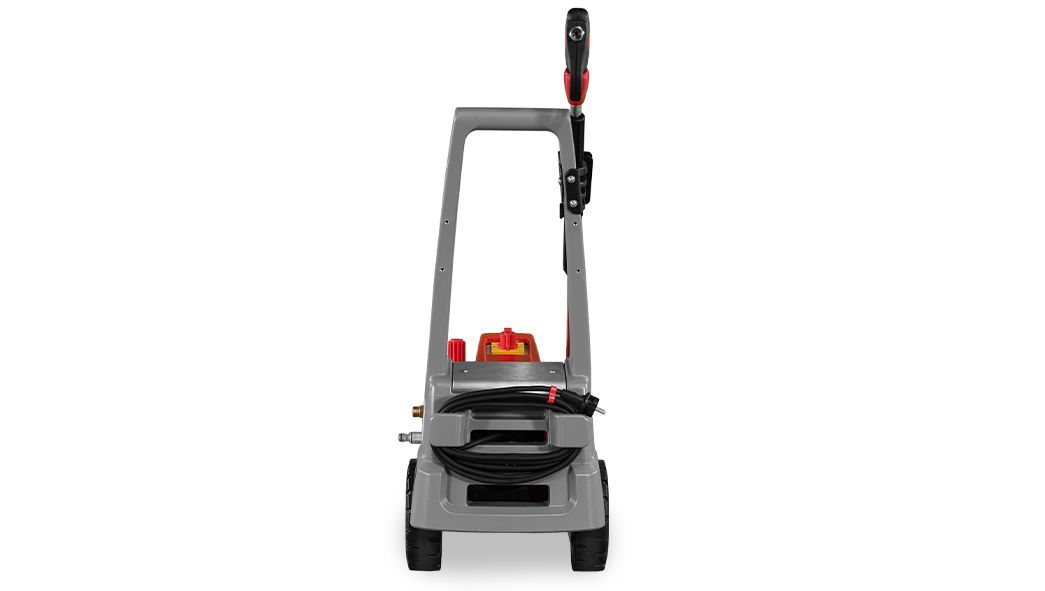

Ehrle KD523 Standard Cold Water Pressure Washer – 230V – 140 Bar – 10 LPM – view 5
Ehrle UK

Ehrle KD523 Standard Cold Water Pressure Washer, 230V, 140 Bar, 10 LPM

SKU 559001
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The Ehrle KD523 Standard is a cold water pressure washer from the Ehrle KD series, running on a 230V single-phase supply. It delivers 30–140 bar working pressure (160 bar maximum) at 300–600 litres per hour.

It comes with 10m DN6 250 bar high pressure hose, trigger gun with swivel, 700mm lance with variable nozzle, stainless steel 25° jet nozzle and low pressure detergent injector with metering valve.

Specification

ModelEhrle KD523 Standard
Article number559001
Power supply230V single-phase, 50Hz
Working pressure30–140 bar
Maximum pressure160 bar
Flow rate300–600 litres per hour (up to 10 litres per minute)
Nozzle size043
Maximum inlet temperature45°C
Pump speed2800rpm
Connected load2.9kW / 12.5A
Fuse16A slow-blow
Supplied with10m DN6 250 bar high pressure hose; Trigger gun with swivel; 700mm lance with variable nozzle; Stainless steel 25° jet nozzle; Low pressure detergent injector with metering valve
Weight34kg

Before installation: Requires a 230V single-phase supply protected by a 16A slow-blow fuse. Have the supply checked by a qualified electrician before installation. Nozzle sizes are listed in our pressure washer nozzle chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Ehrle KD523 Standard cold water pressure washer, 230V single-phase, 30–140 bar, 300–600 litres per hour.

Specifications

Brand
Ehrle UK
Machine Format
Mobile / Trolley
Working Pressure
140
Flow Rate
10
Electrical Supply
230 Volts
Power Source
Electric
Hot or Cold Water
Cold
Weight
34 kg
