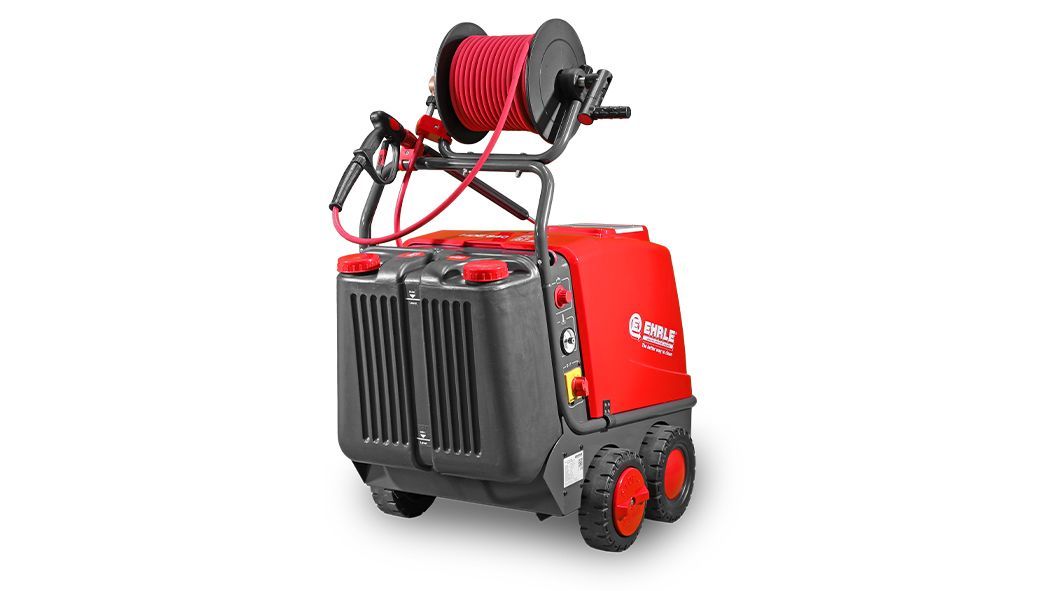

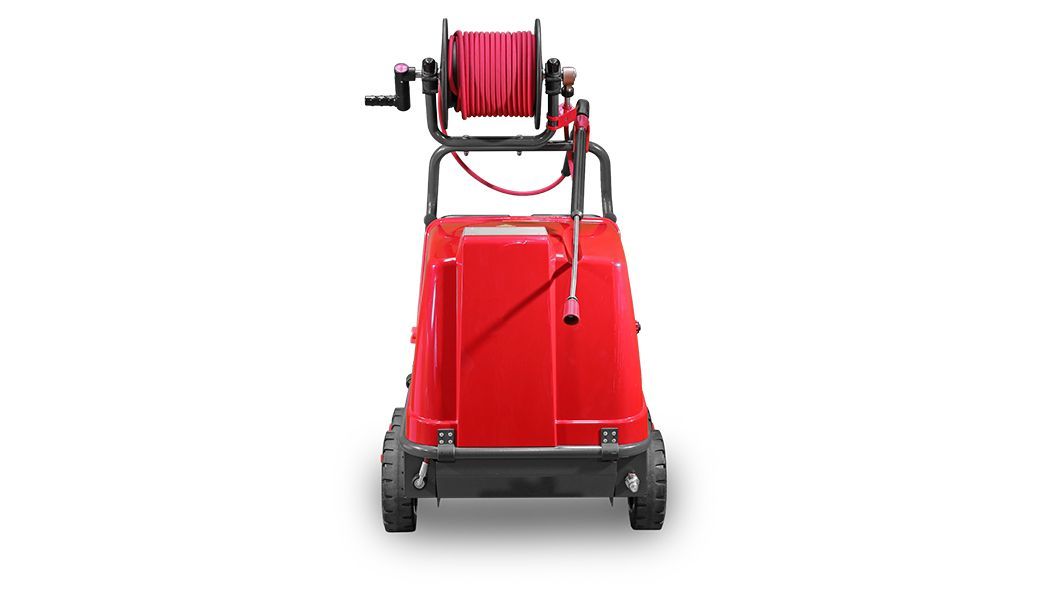

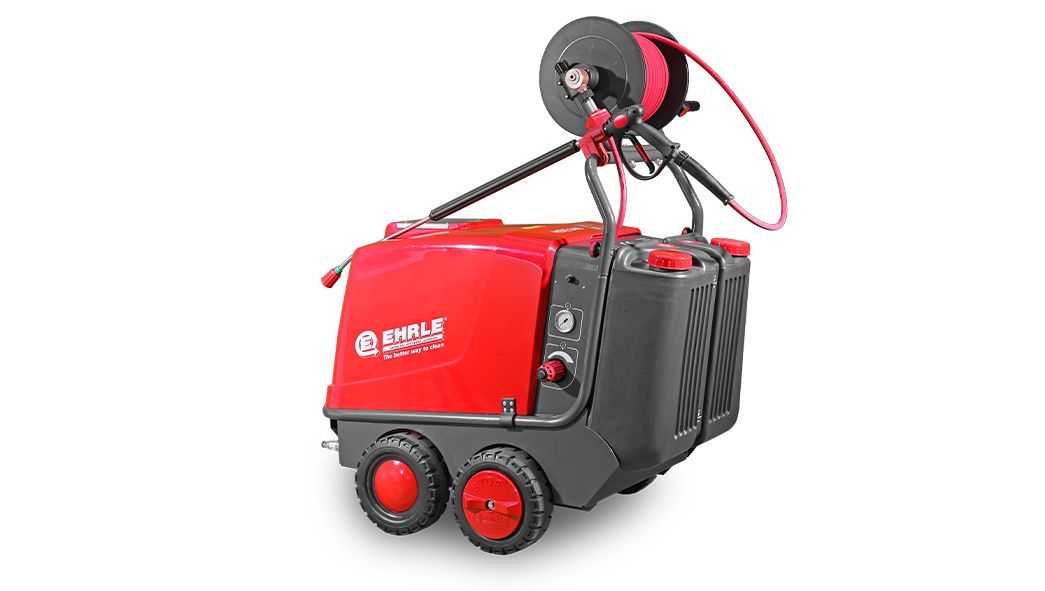

Ehrle HDE840 18kW Premium Hot Electric Pressure Washer, 400V, 140 Bar, 12 LPM, with 20m Hose Reel

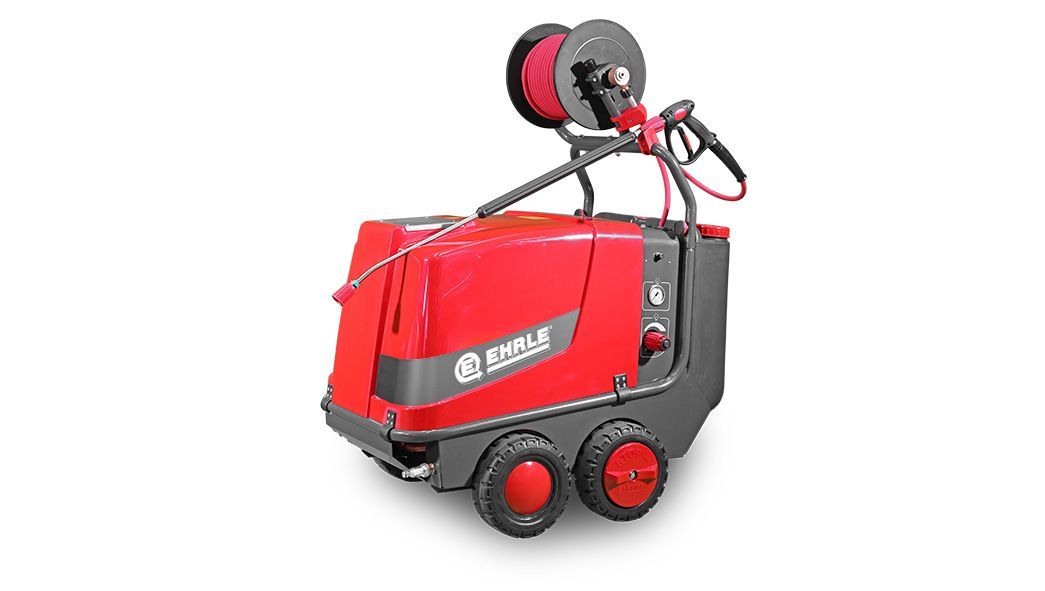

EHRLE HDE840 hose reel hot water pressure washer with 20m hose and turbo lance
Ehrle HDE840 18kW Premium Hot Electric Pressure Washer, 400V, 140 Bar, 12 LPM, with 20m Hose Reel – image 2
Ehrle HDE840 18kW Premium Hot Electric Pressure Washer, 400V, 140 Bar, 12 LPM, with 20m Hose Reel – image 3
Ehrle HDE840 18kW Premium Hot Electric Pressure Washer, 400V, 140 Bar, 12 LPM, with 20m Hose Reel – image 4
Ehrle UKElectrically Heated

Ehrle HDE840 18kW Premium Hot Electric Pressure Washer, 400V, 140 Bar, 12 LPM, with 20m Hose Reel

SKU 107002
£6,603.00 ex VAT
£7,923.60 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Ehrle HDE840 18kW electrically heated hot water pressure washer for 400V three-phase supplies, working at 30 to 140 bar (160 bar maximum) with a flow of 300 to 720 litres per hour. The 18kW heating system and 65 litre stainless steel boiler with pre-heating and buffer storage give hot water from 30 to 80°C.

The triplex piston pump has a chrome nickel hot water resistant head, ceramic pistons and stainless steel valves, running at 1400 rpm. Etronic I controls give start-stop, switch-off delay, standby heating and low water cut-off. Detergent is drawn into the high pressure jet through a metering valve from two integrated 20 litre tanks, and the water supply is separated to DIN EN 1717 Class 4. This version has a 20m hose reel and is supplied with an additional turbo hammer lance. It has a corrosion-resistant chassis, an impact-resistant ABS cover, four large rubber wheels with a two-way wheel brake, accessory storage, a removable drawbar and a 7.5m connection cable.

Specification

Part number107002
BrandEhrle UK
ModelHDE840 18kW
Machine typeElectrically heated hot water pressure washer
Operating pressure30 to 140 bar
Maximum pressure160 bar
Flow300 to 720 litres per hour
Electrical supply400V, 3 phase, 50Hz
Heating power18kW
Hot water temperature30 to 80°C
Boiler65 litre stainless steel
Pump speed1400 rpm
Connected load22.8kW, 32A
Electrical protection3 x 32A slow
Nozzle size045
Chemical applicationHigh pressure, metering valve
Detergent tanks2 x 20 litres
Hose reel20m
What's in the box20m hose reel, quick release trigger gun with M22 female inlet, quick release standard lance, quick release turbo hammer lance

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Ehrle HDE840 18kW electrically heated hot water pressure washer with 20m hose reel, 400V, 140 bar.

Specifications

Brand
Ehrle UK
Machine Format
Mobile / Trolley
Working Pressure
140
Flow Rate
12
Electrical Supply
415 Volts
Power Source
Electric
Hot Water Generation
Electrically Heated
Hot or Cold Water
Hot
Shutdown Feature
Auto Timed Stop/Start
Hose Reel
Yes
Chemical Application
High Pressure Chemical

Technical information

Voltage: 3/N/PE/AC/50Hz/400V

Operating Pressure: 30-140bar/3-14MPa

Max. Pressure: 160bar/16MPa

Discharge capacity: 300-720l/h

Nozzle size: 045

Heating-Power: 18kW

Hot water capacity: 30-80°C

Pump speed: 1400rpm

Connected load: 22,8kW/32A

Electrical protection: 3x32A slow
