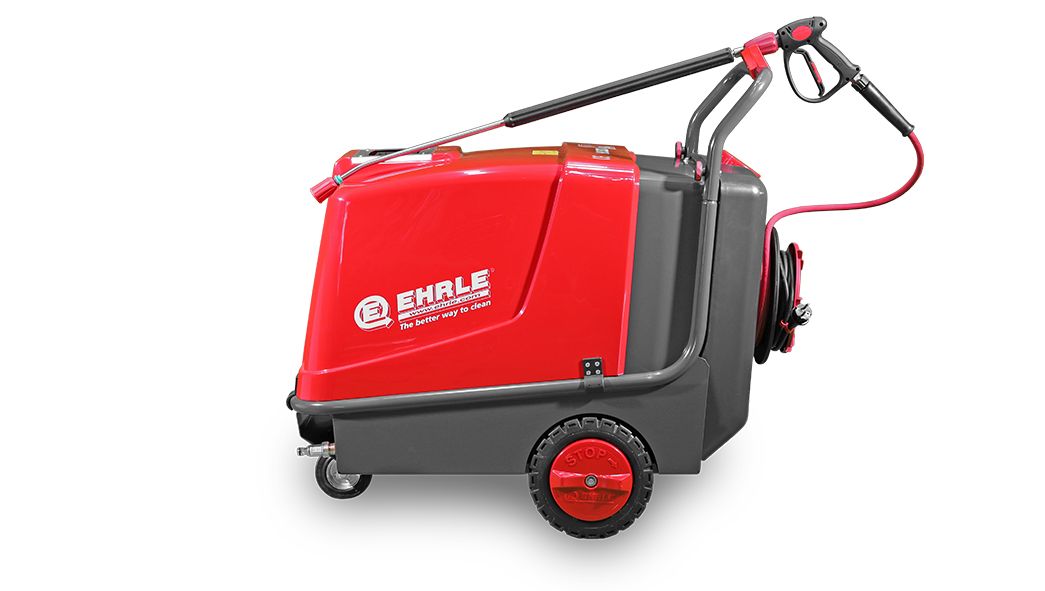

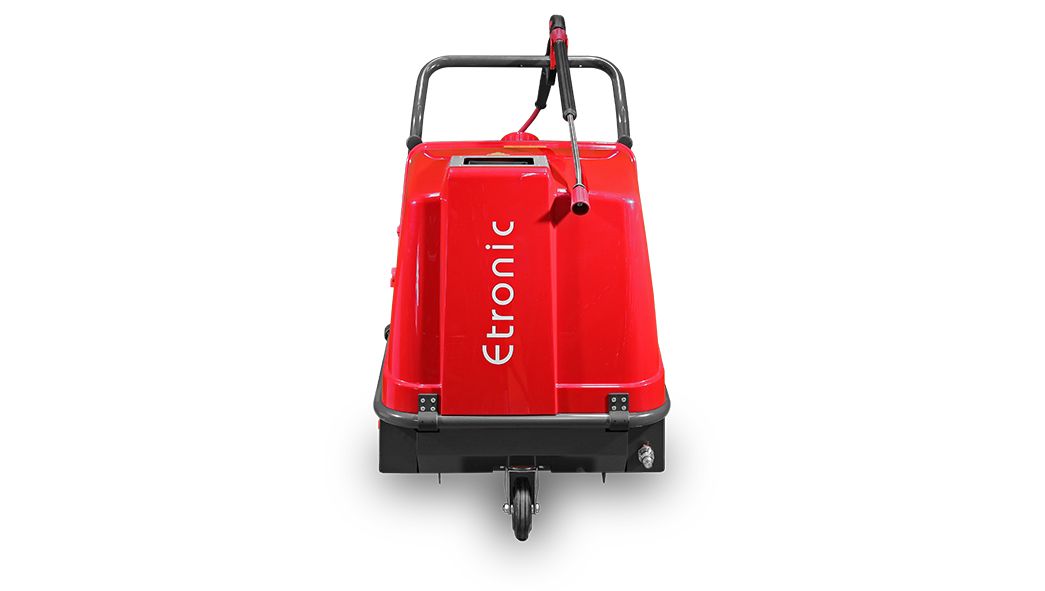

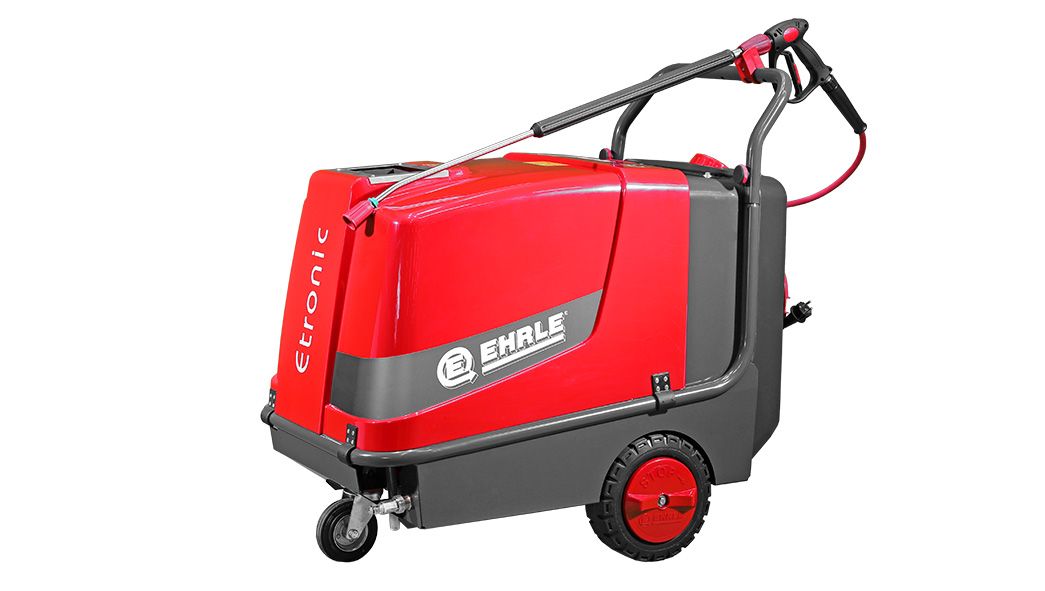

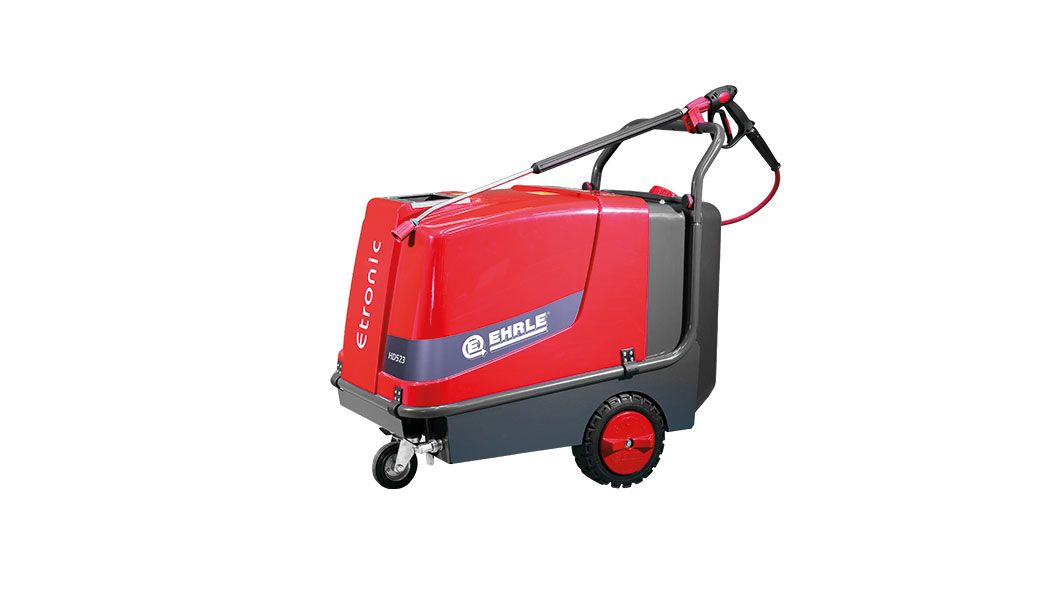

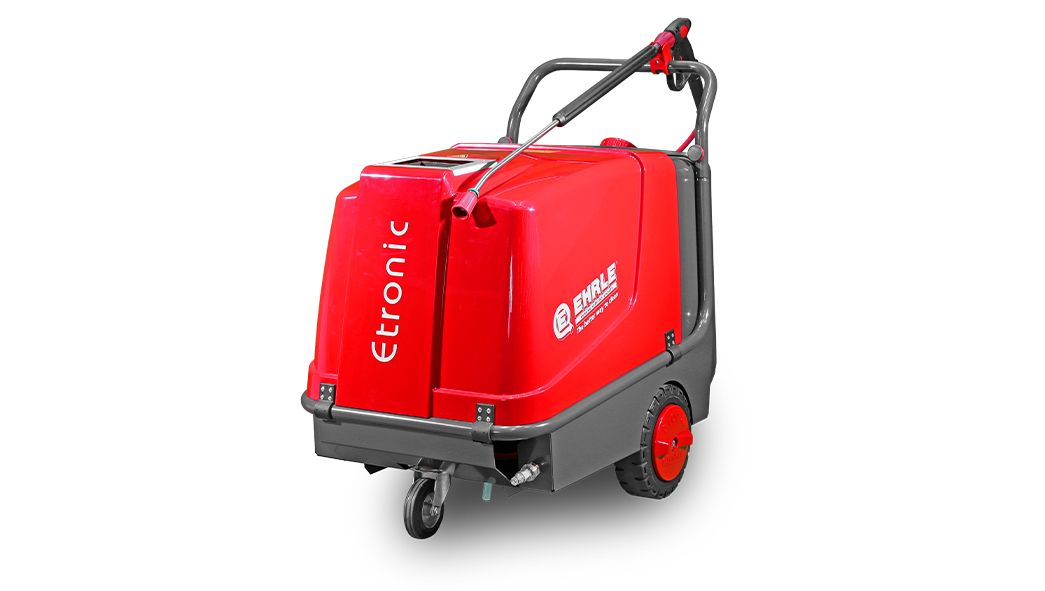

Ehrle HD523 Standard Hot Water Pressure Washer, 230V, 120 Bar, 10 LPM

SKU: 413001
Contact us to order
  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

The Ehrle HD523 Standard is a hot water pressure washer from the Ehrle HD series, running on a 230V single-phase supply. It delivers 30–120 bar working pressure (140 bar maximum) at 300–600 litres per hour, with hot water from 30–98°C.

It comes with Etronic controls, 15m DN8 315 bar high pressure hose, trigger gun with swivel, 900mm lance with variable nozzle and stainless steel 25° jet nozzle. Options: low pressure chemical injector and 900mm lance with control nozzle.

Specification

ModelEhrle HD523 Standard
Article number413001
Power supply230V single-phase, 50Hz
Working pressure30–120 bar
Maximum pressure140 bar
Flow rate300–600 litres per hour (up to 10 litres per minute)
Nozzle size045
Hot water temperature30–98°C
Pump speed2800 rpm
Fuse16A slow-blow
Supplied withEtronic controls; 15m DN8 315 bar high pressure hose; Trigger gun with swivel; 900mm lance with variable nozzle; Stainless steel 25° jet nozzle
OptionsLow pressure chemical injector; 900mm lance with control nozzle
Weight165.5kg

Before installation: Requires a 230V single-phase supply protected by a 16A slow-blow fuse. Have the supply checked by a qualified electrician before installation. Nozzle sizes are listed in our pressure washer nozzle chart.
