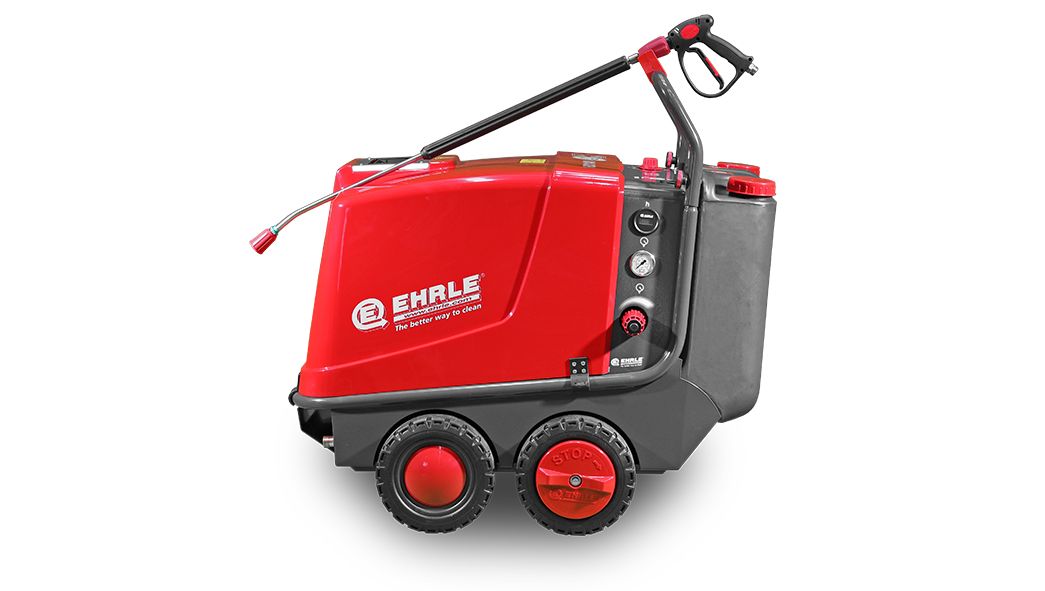

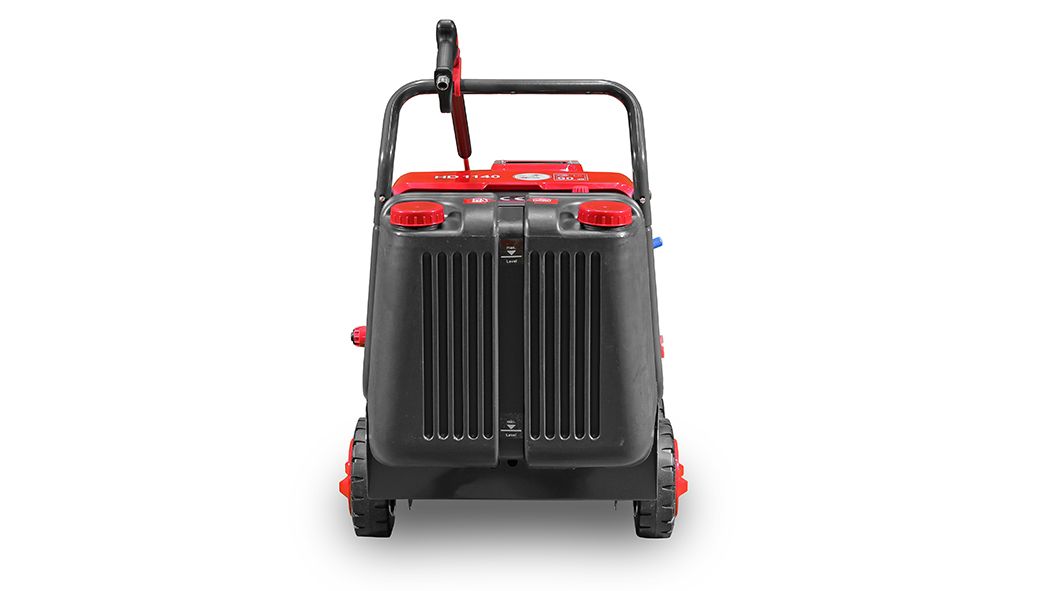

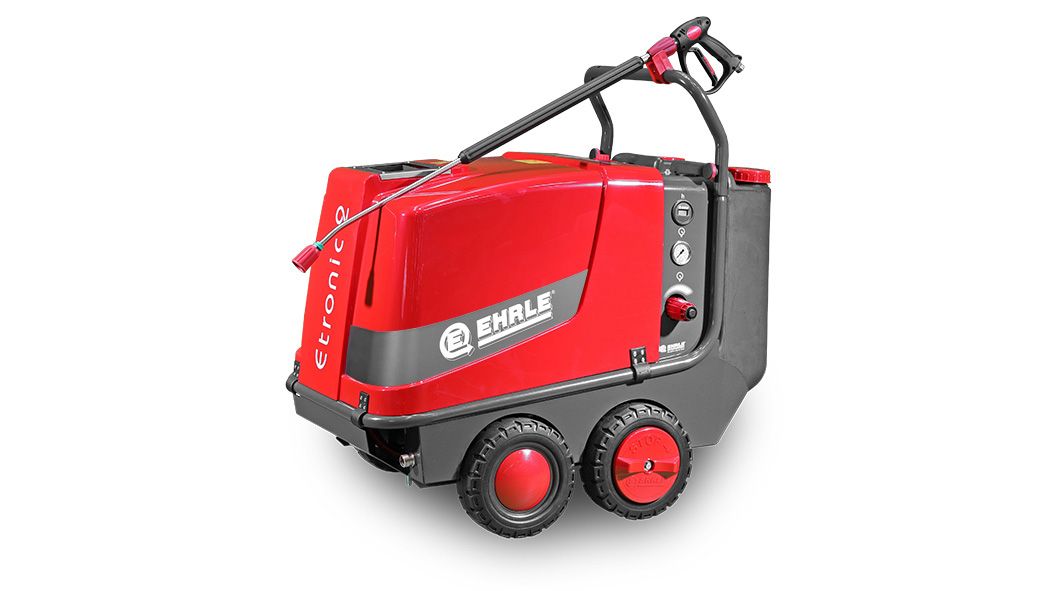

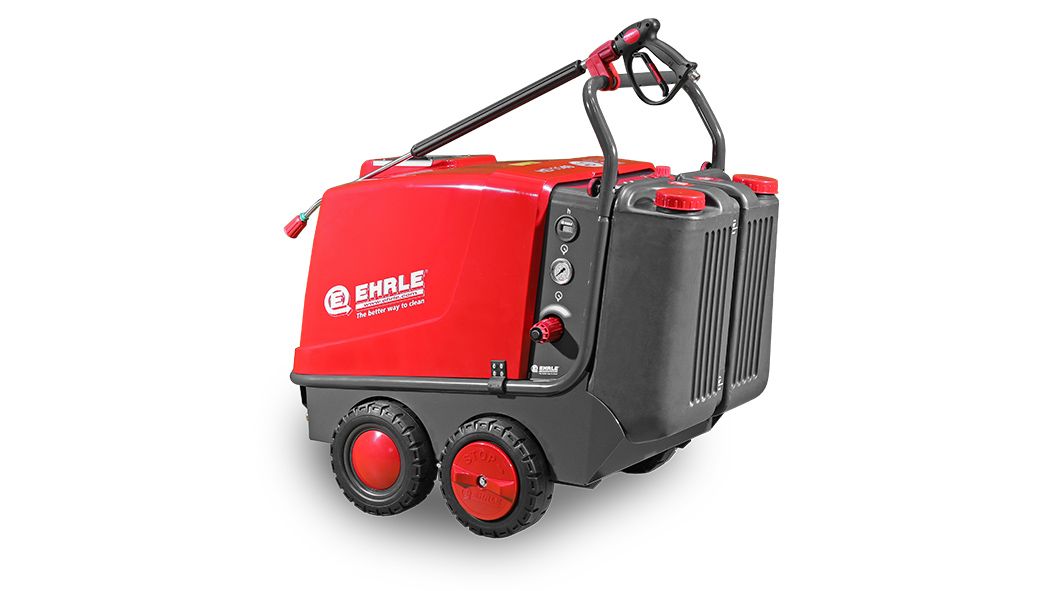

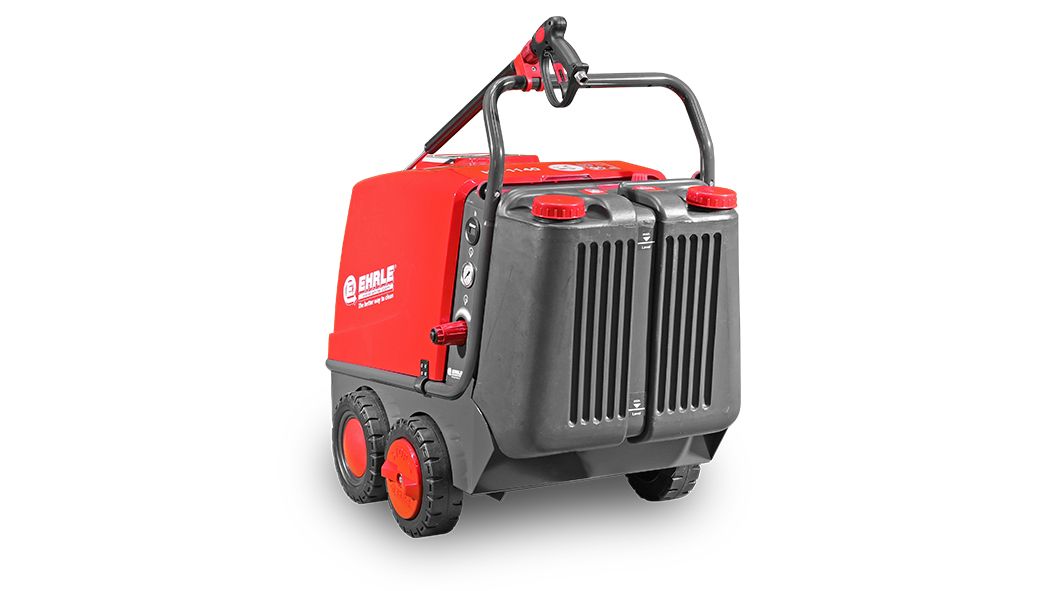

Ehrle HD1140 Standard Hot Water Pressure Washer, 400V, 230 Bar, 16.7 LPM

SKU: 410001
Contact us to order
  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

The Ehrle HD1140 Standard is a hot water pressure washer from the Ehrle HD series, running on a 400V three-phase supply. It delivers 30–230 bar working pressure (250 bar maximum) at 300–1000 litres per hour, with hot water from 30–98°C (150°C).

It comes with Etronic II controls, 10m DN8 315 bar high pressure hose, trigger gun with swivel, 900mm lance with nozzle guard, stainless steel 25° jet nozzle, water supply separation to DIN EN 1717 class 4 and high pressure chemical injection with metering valve.

Specification

ModelEhrle HD1140 Standard
Article number410001
Power supply400V three-phase, 50Hz
Working pressure30–230 bar
Maximum pressure250 bar
Flow rate300–1000 litres per hour (up to 16.7 litres per minute)
Nozzle size045
Hot water temperature30–98°C (150°C)
Pump speed1400rpm
Connected load7.6kW / 13.3A
Fuse3 x 16A slow-blow
Supplied withEtronic II controls; 10m DN8 315 bar high pressure hose; Trigger gun with swivel; 900mm lance with nozzle guard; Stainless steel 25° jet nozzle; Water supply separation to DIN EN 1717 class 4; High pressure chemical injection with metering valve
Weight204kg

Before installation: Requires a 400V three-phase supply protected by a 3x16A slow-blow fuse. Have the supply checked by a qualified electrician before installation. Nozzle sizes are listed in our pressure washer nozzle chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.
