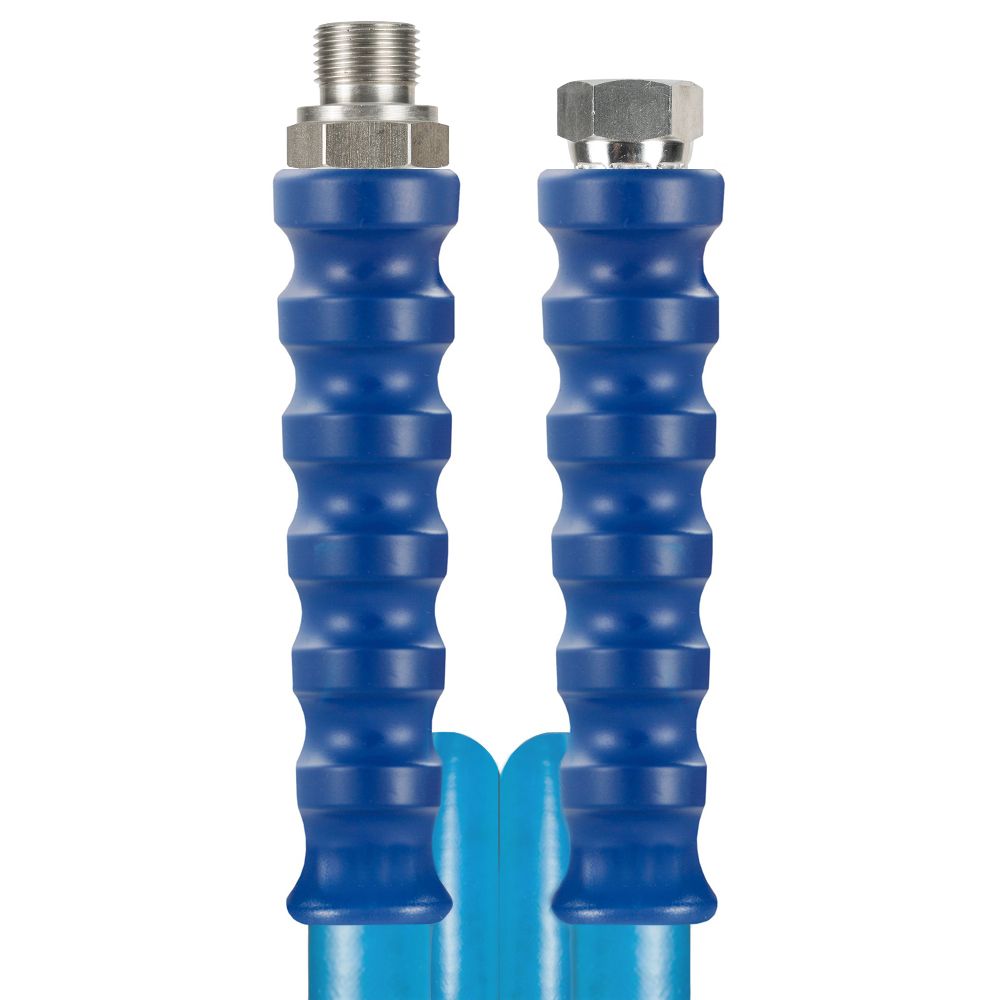

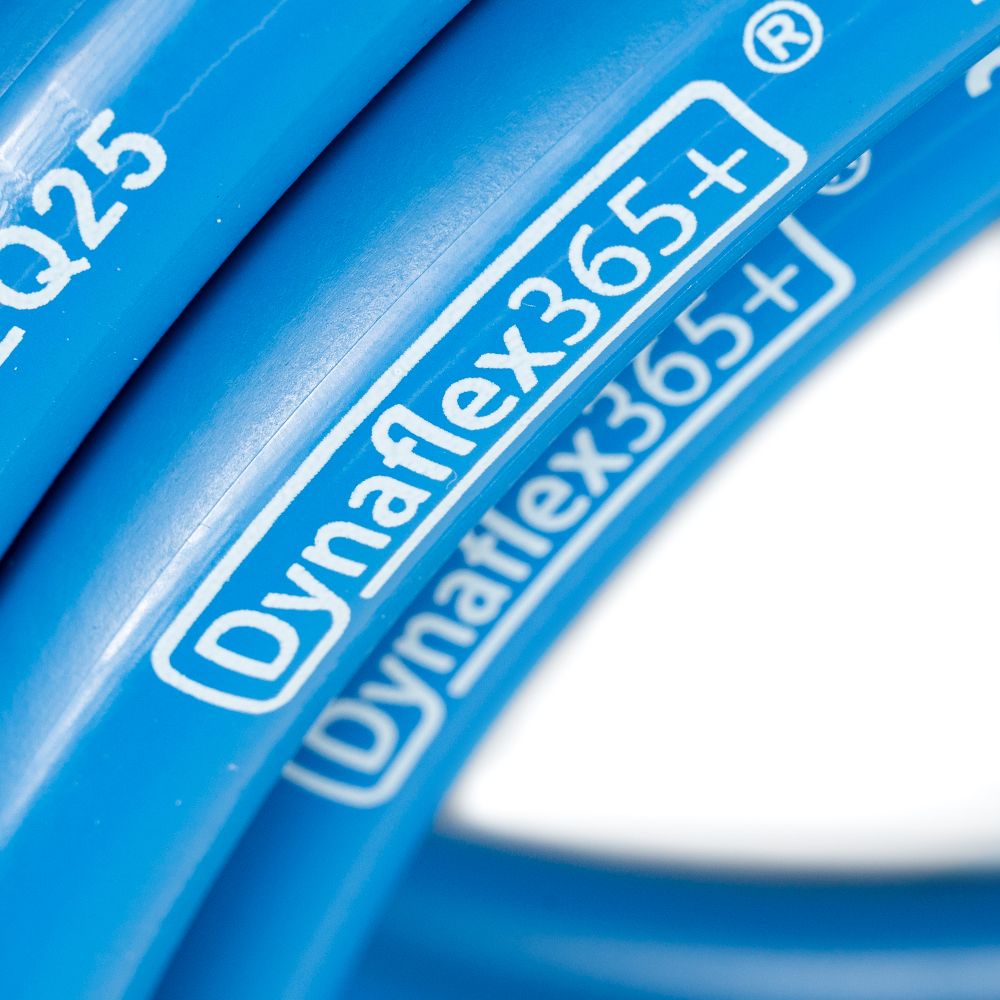

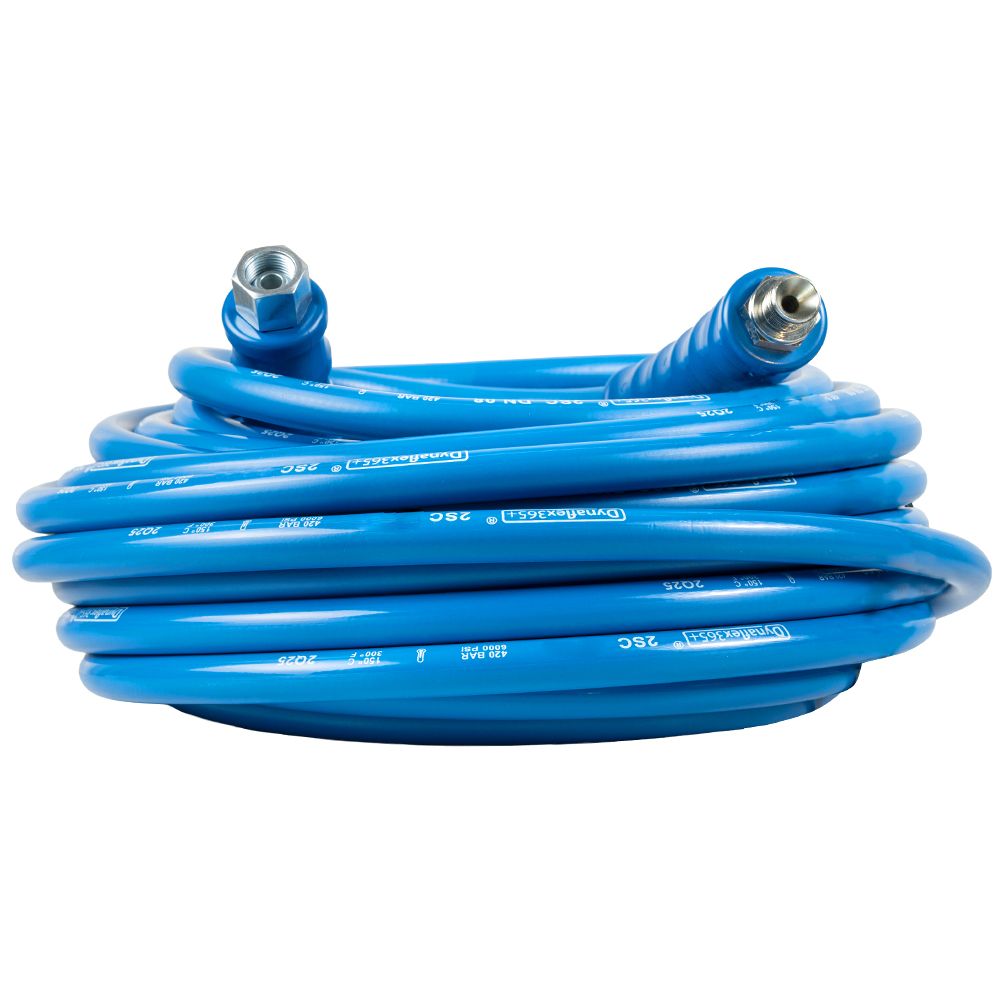

Dynaflex365+ Blue High Pressure Hose, 420 Bar, DN6, DN8 or DN10, Stainless Steel Ends, Smooth, 10m to 30m

Overview

A blue Dynaflex365+ smooth high pressure hose rated to 420 bar and 150°C, available in DN6, DN8 or DN10 bores and lengths from 10 to 30 metres. Stainless steel threaded ends resist corrosion for outdoor, vehicle-mounted and wet washdown use.

Specification

• Range: Dynaflex365+
• Colour: Blue
• Length: DN6 and DN8: 10, 15, 20 or 30 metres; DN10: 10, 15, 20, 25 or 30 metres
• Cover: Smooth synthetic rubber
• Bore: DN6 (6mm), DN8 (8mm) or DN10 (10mm)
• Outer diameter: 13.2mm (DN6), 15.8mm (DN8), 17.2mm (DN10)
• Bend radius: 80mm (DN6), 90mm (DN8), 110mm (DN10)
• Reinforcement: Twin high tensile wire braid
• Working pressure: 420 bar / 6,000 psi
• Burst pressure: 1,600 bar / 23,200 psi at 20°C
• Maximum temperature: 150°C
• Resistance: Abrasion, oil, ozone and weathering

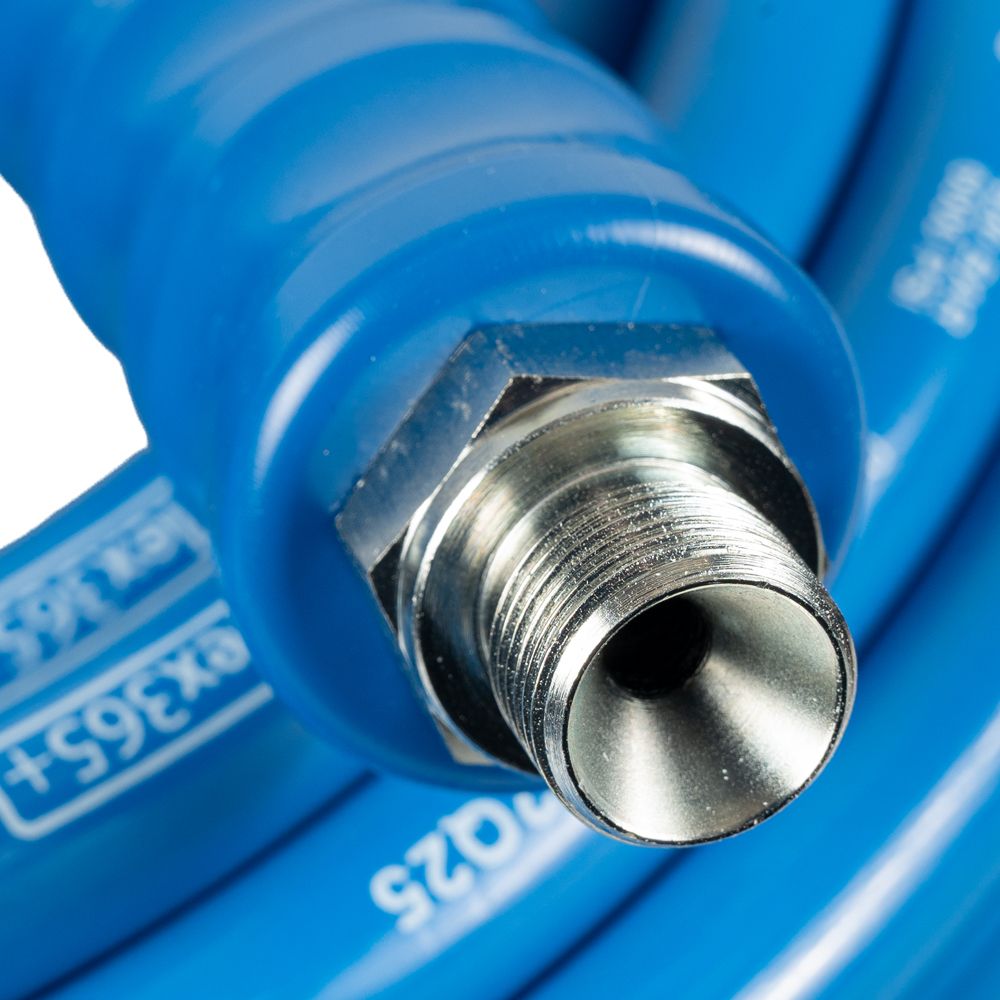

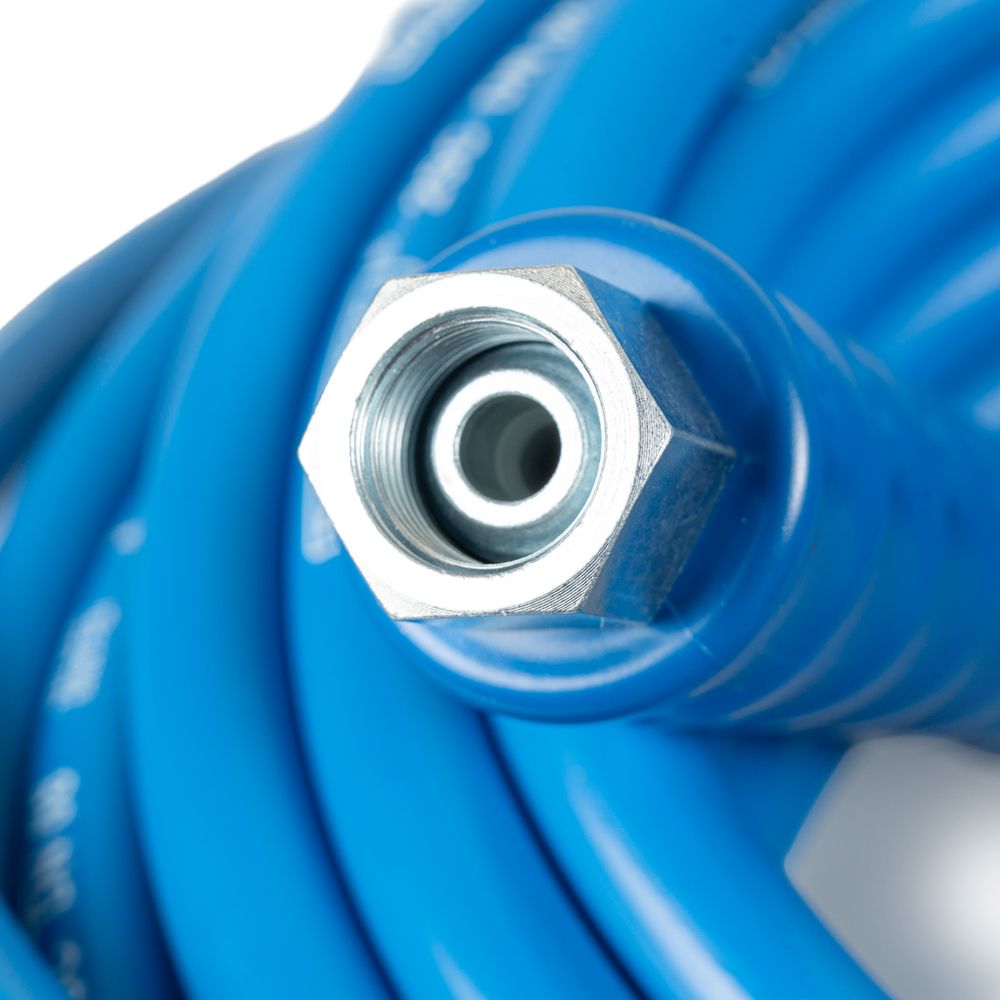

• Ends: DN6: 1/4" M x 1/4" F; DN8 and DN10: 3/8" M x 3/8" F; all stainless steel
• Country of origin: Germany
