CAT Pump 49 LPM 50 Bar 1010

CAT 1010 Pump 49 LPM 50 Bar

SKU 131010
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

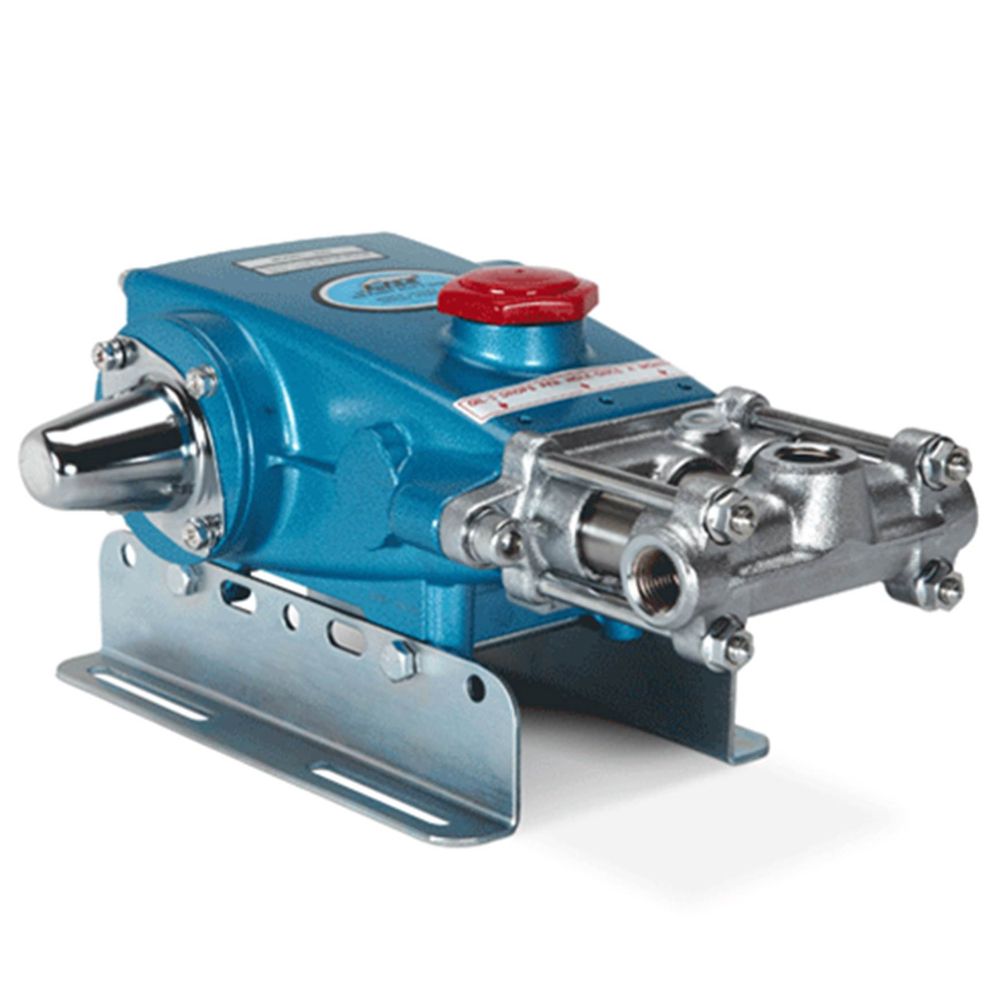

CAT Pumps 1010 triplex piston pump for vehicle washing, site cleaning, test rigs and pressure washers, rated to 50 bar (700 psi) and 49 litres per minute at 900 RPM, needing at least 4.6kW (6.2hp). It has a 25mm shaft.

The triplex design reduces pulsation and the internal seals are cooled in use. It measures 439 x 290 x 160mm. The pump is supplied without oil and must be filled before use. Made in Japan.

Specification

Part number131010
BrandCAT Pumps
Model1010
Maximum pressure50 bar
Maximum flow49 litres per minute
Speed900 RPM
Minimum power required6.2hp (4.6kW)
Shaft25mm
Inlet1" BSP female
Outlet3/4" BSP female
Dimensions439 x 290 x 160mm
Weight12.25kg
Country of originJapan

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

CAT pumps are suitable for vehicle wash, site cleaning, test rigs and pressure washers. CAT pumps are supplied without oil in the chassis and require filling before use.

Specifications

Brand
CAT Pumps
Pumps and Parts by Series
CAT 620 / 820 / 1010 Series
Search By CAT Pump Model
1010
Working Pressure
50
Flow Rate
49
RPM
900
Weight
12.25 kg

Technical information

Inlet: 1" Female

Outlet: 3/4" Female

Maximum Pressure: 50bar / 700psi

Maximum Flow: 49LPM

Minimum Required Power: 4.6kW / 6.2HP

RPM: 900

Shaft Size: 25mm

Commodity Code: 8413502090

Country of Origin: Japan

Weight: 12.25kg
