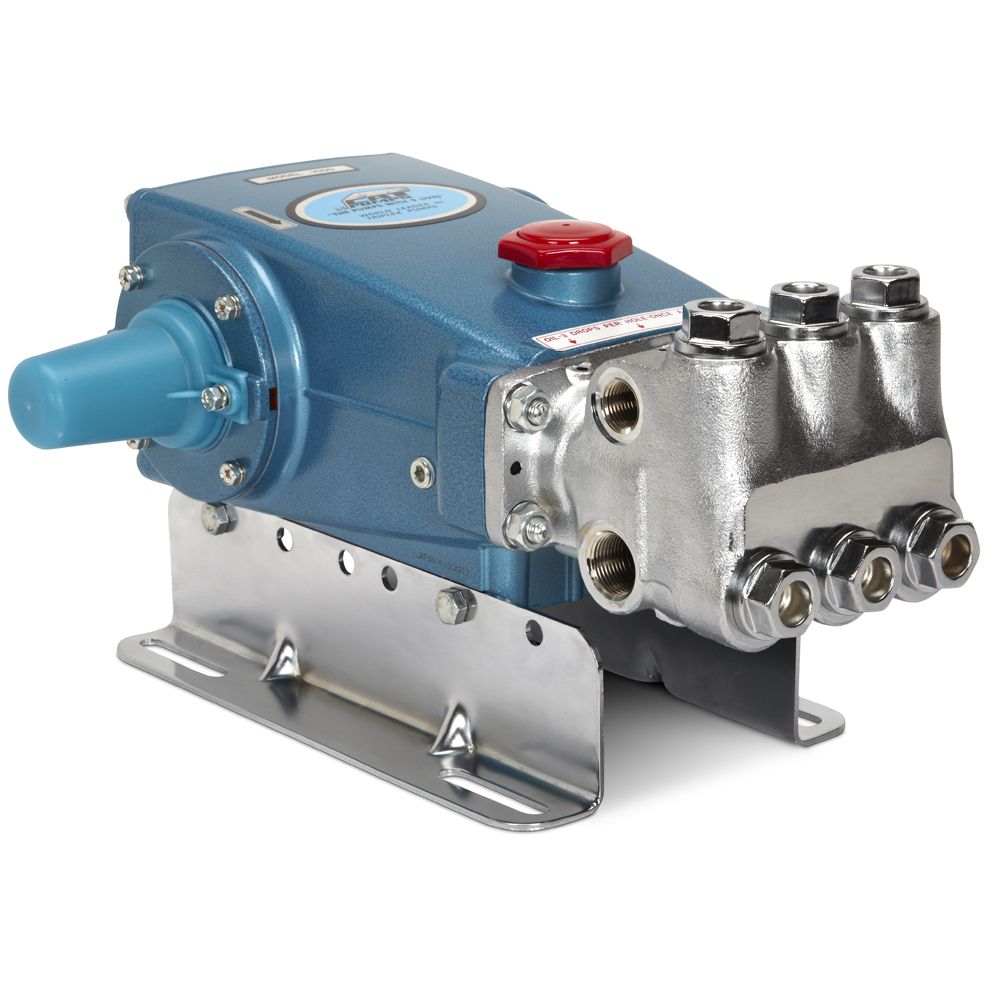

CAT 1050 Pump 38 LPM 150 Bar, 3/4" F x 1/2" F
CAT Pump 38 LPM 150 Bar 1050

CAT 1050 Pump 38 LPM 150 Bar, 3/4" F x 1/2" F

SKU 131050
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

CAT Pumps 1050 triplex piston pump for vehicle washing, site cleaning, test rigs and pressure washers, rated to 150 bar (2,200 psi) and 38 litres per minute at 958 RPM, needing at least 11.0kW (15.0hp). It has a 30mm shaft and a 24mm piston width.

The triplex design reduces pulsation and the internal seals are cooled in use. It measures 414 x 330 x 164mm. The pump is supplied without oil and must be filled before use. Made in Japan. It weighs 20kg.

Specification

Part number131050
BrandCAT Pumps
Model1050
Maximum pressure150 bar
Maximum flow38 litres per minute
Inlet3/4" BSP female
Outlet1/2" BSP female
Speed958 rpm
Minimum power required15.0hp (11.0kW)
Shaft30mm
Piston width24mm
DimensionsCeramic Width 24mm
Weight20kg
Country of originJapan

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
CAT Pumps
Pumps and Parts by Series
CAT 1050 / 1051 Series
Search By CAT Pump Model
1050
Working Pressure
150
Flow Rate
38
RPM
958
HP Power Required
11KW / 15 Hp
Weight
20 kg

Technical information

Maximum pressure: 150 bar

Maximum flow: 38 litres per minute

Inlet: 3/4" BSP female

Outlet: 1/2" BSP female

Speed: 958 rpm

Minimum power required: 15.0hp (11.0kW)
