CAT 270 Pump 13.2 LPM 105 Bar, 1/2" F x 3/8" F
CAT Pump 13.2 LPM 105 Bar 270

CAT 270 Pump 13.2 LPM 105 Bar, 1/2" F x 3/8" F

SKU 13270
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

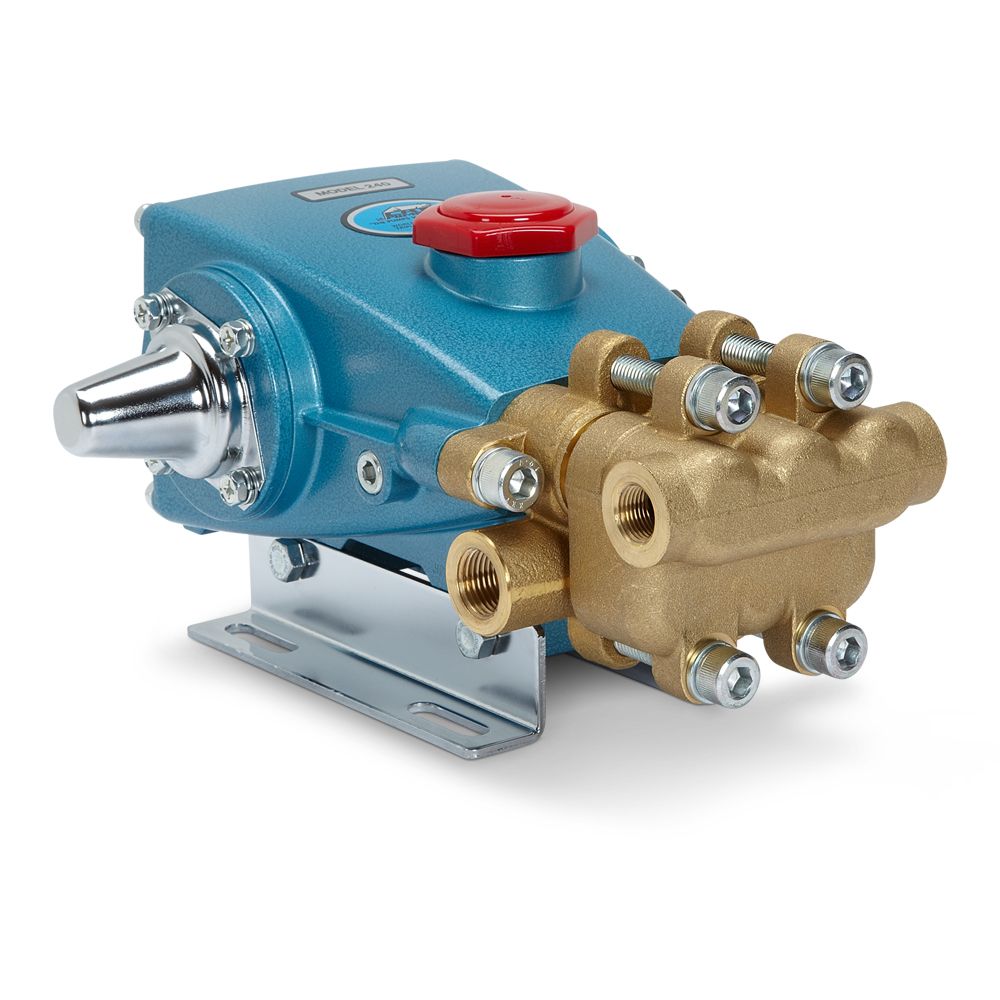

CAT Pumps 270 triplex piston pump for vehicle washing, site cleaning, test rigs and pressure washers, rated to 105 bar (1,500 psi) and 13.2 litres per minute at 1420 RPM, needing at least 2.7kW (3.6hp). It has a 16.5mm shaft and an 18mm piston width.

The triplex design reduces pulsation and the internal seals are cooled in use. The pump is supplied without oil and must be filled before use. Made in Japan. It weighs 6.3kg.

Specification

Part number13270
BrandCAT Pumps
Model270
Maximum pressure105 bar
Maximum flow13.2 litres per minute
Inlet1/2" BSP female
Outlet3/8" BSP female
Speed1450 rpm
Minimum power required3.6hp (2.7kW)
Shaft16.5mm
Piston width18mm
DimensionsCeramic Width 18mm
Weight6.3kg
Country of originJapan

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
CAT Pumps
Pumps and Parts by Series
CAT 230 / 240 / 270 / 280 / 290 Series
Search By CAT Pump Model
270
Working Pressure
105
Flow Rate
13.2
RPM
1420
Weight
6.3 kg

Technical information

Maximum pressure: 105 bar

Maximum flow: 13.2 litres per minute

Inlet: 1/2" BSP female

Outlet: 3/8" BSP female

Speed: 1450 rpm

Minimum power required: 3.6hp (2.7kW)
