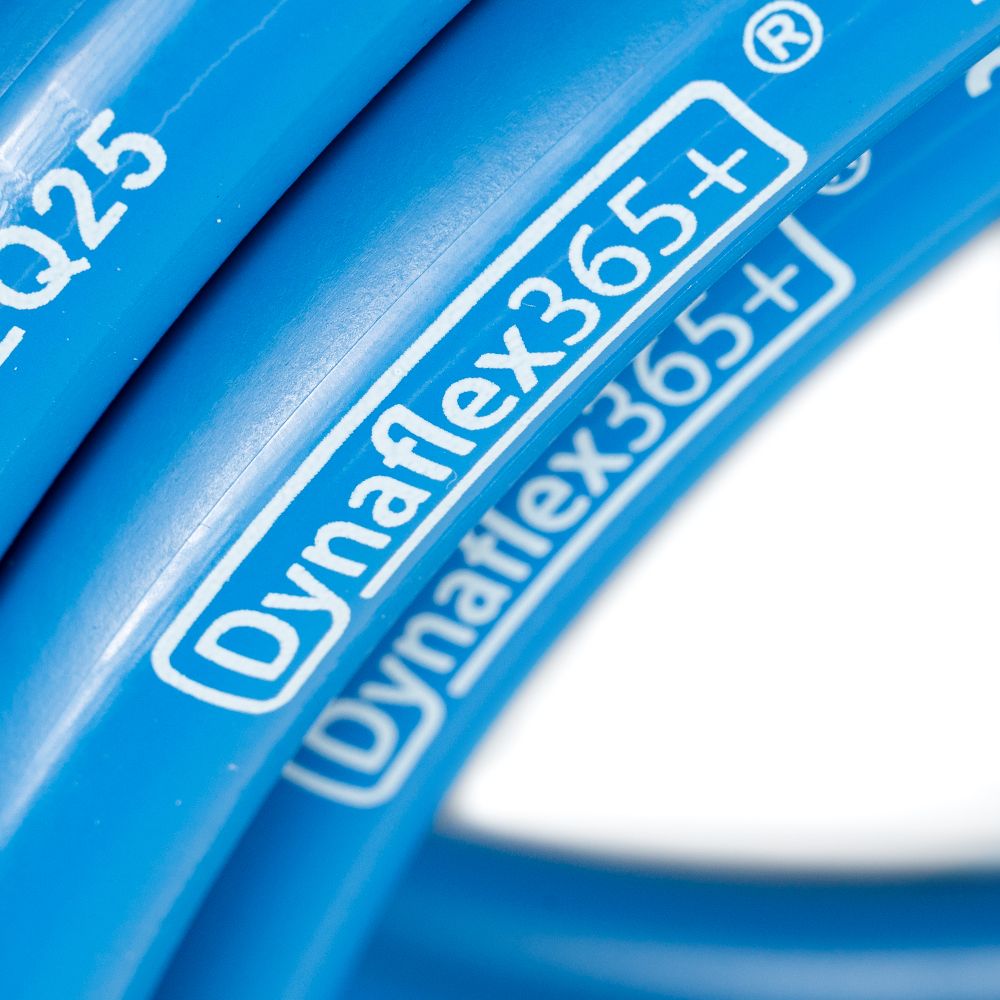

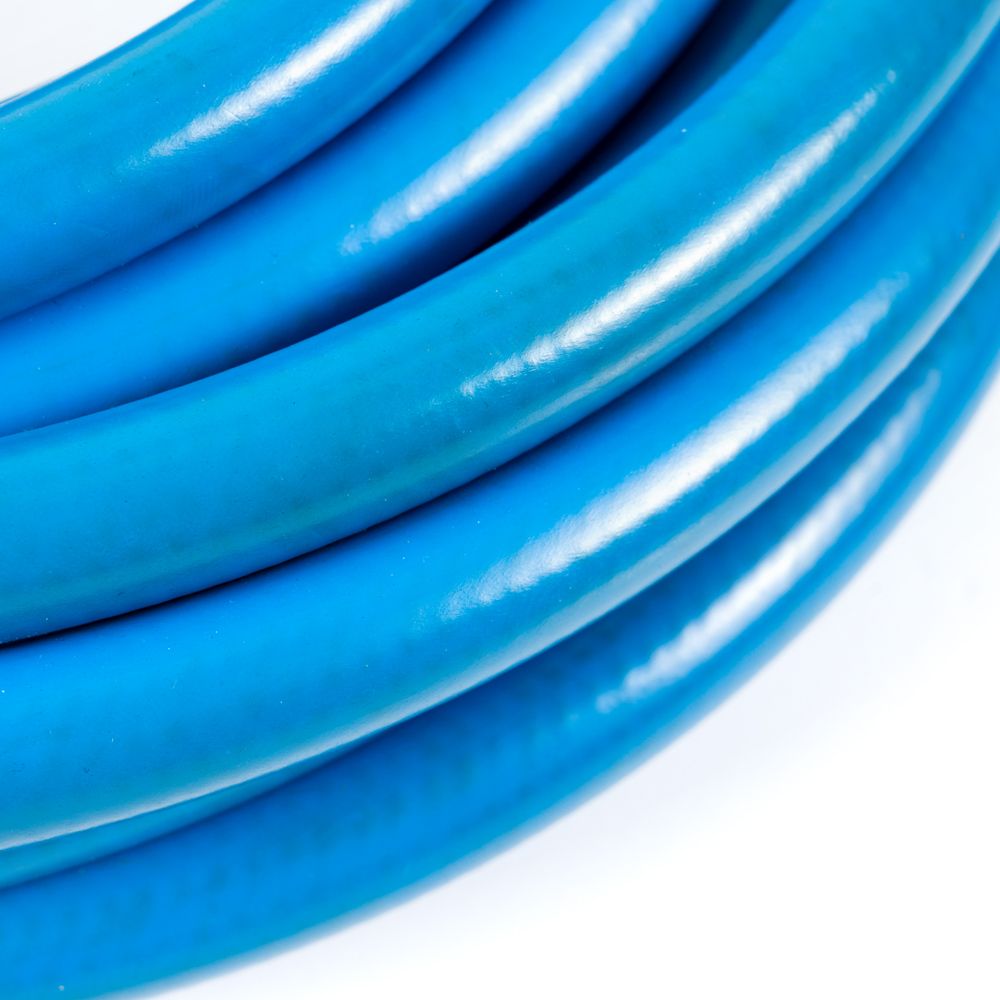

Dynaflex365+ Blue High Pressure Hose, 280 Bar, 1SC, DN10, Smooth, per Metre

Overview

A blue Dynaflex365+ 1SC smooth high pressure hose with a DN10 bore, rated to 280 bar and 150°C, with a 90mm bend radius. It is supplied per metre with no fittings.

Specification

• Range: Dynaflex365+
• Colour: Blue
• Length: Sold per metre
• Cover: Smooth synthetic rubber
• Bore: DN10 (10mm)
• Outer diameter: 16.2mm
• Bend radius: 90mm
• Reinforcement: 1SC, single high tensile wire braid
• Working pressure: 280 bar / 4,060 psi
• Burst pressure: 1,000 bar / 14,500 psi at 20°C
• Maximum temperature: 150°C
• Resistance: Abrasion, oil, ozone and weathering
• Ends: None
• Weight: 0.28kg per metre
• Country of origin: Spain
