Annovi Reverberi XWL36.15 Solid Shaft Pump, 150 Bar, 36 LPM, 1450 RPM

Overview

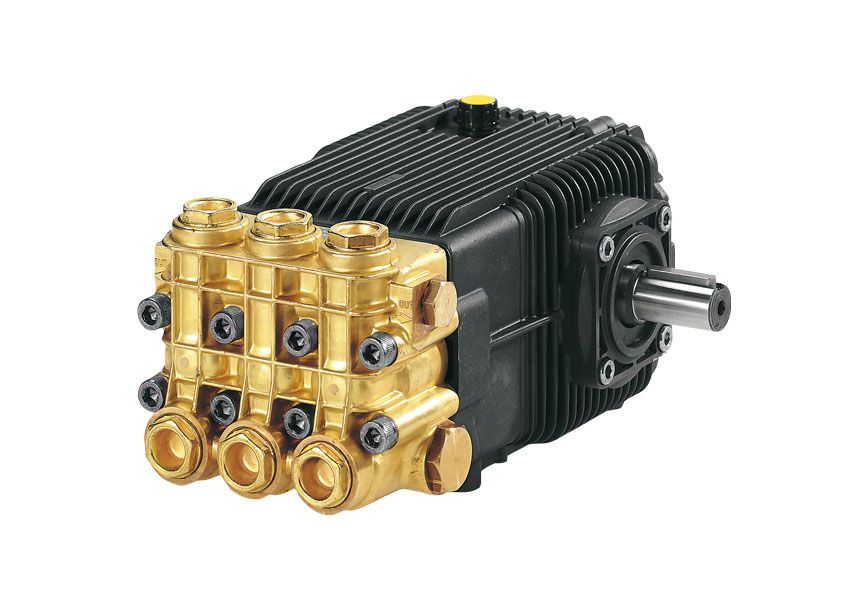

Annovi Reverberi XWL36.15 three piston pump for electric motor drive, delivering 36 litres per minute at 150 bar at 1450 RPM and needing 15hp to run at full pressure.

It has a die-cast aluminium alloy body and cover, a pressed high-strength steel shaft and oversized bearings, and can be coupled to a motor directly or through a flexible joint. The rear cover has an oil drain outlet and sight glass.

Specification

Repair kits

Valve kit 2780, water seal kit 42708, oil seal kit 2873 and piston kit 1849.

Unloader valves

Suitable unloader valves: Gymatic 3B 20802 without chemical injector, or Gymatic 3B 20762 with chemical injector.

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

Repair video

Watch Annovi Reverberi's video on servicing and repairing XWL, XWLA, XWT and XWF series pumps: XWL, XWLA, XWT and XWF pump repair and maintenance video.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.
