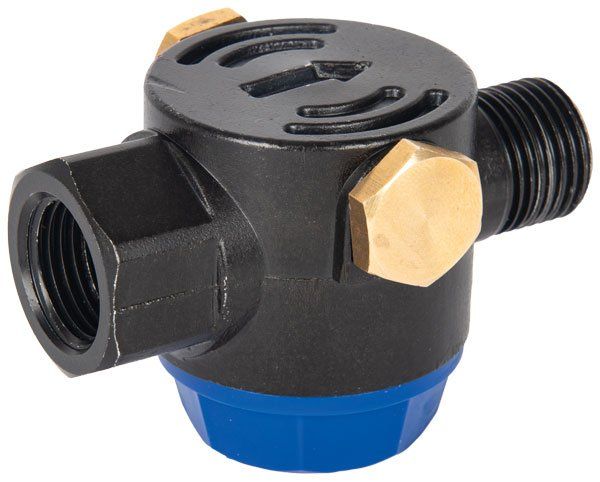

The 402-1080 Aluminium Inlet Filter provides effective water filtration before water enters a pressure-washer pump. Its stainless-steel filter screen captures dirt and other particles that could contribute to blocked valves, damaged seals or premature pump wear.

The compact, low-profile housing combines a durable aluminium body with a removable plastic cap, allowing access to the filter screen for routine inspection and cleaning. It handles water flows up to 22 litres per minute, temperatures up to 80°C and inlet pressures up to 12 Bar.

A ½″ BSP female inlet and ½″ BSP male outlet allow the filter to be installed directly into a suitable pressure-washer water supply. Two additional ¼″ BSP female ports provide connection points for compatible bypass or return arrangements.

Performance Figures

• Maximum pressure: 12 Bar
• Maximum flow rate: 22 LPM
• Maximum water temperature: 80°C

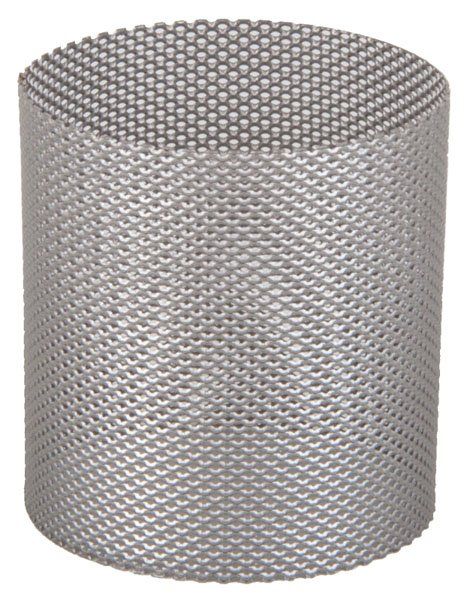

• Filter screen: 50 mesh, approximately 300 microns
• Product weight: approximately 0.2 kg

Construction Details

• Aluminium filter body
• Removable plastic cap
• Washable stainless-steel filter screen
• Compact, low-profile design

Ports

• Inlet: ½″ BSP female
• Outlet: ½″ BSP male
• Additional ports: 2 × ¼″ BSP female

Key Features

• Helps protect the pump from waterborne debris
• Suitable for pressure-washer inlet and bypass arrangements
• Washable and reusable stainless-steel screen
• Compact design for installations with limited space
• Handles water temperatures up to 80°C
• Suitable for flows up to 22 LPM
• Four threaded connection points

The filter should be installed on the low-pressure water inlet side of the pump and must not be exposed to high-pressure pump discharge pressure. Confirm that the flow capacity, temperature rating and connection sizes suit the intended installation before ordering. Specifications are supported by the published supplier listing.

For thread identification, see the Flowjet BSP Thread Size Chart.

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.
