Product Description

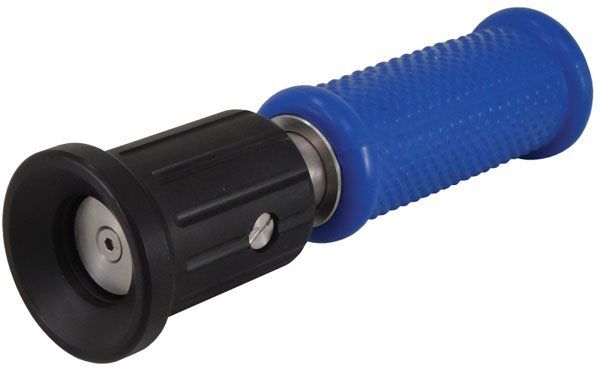

The AKBO Heavy-Duty Stainless Steel Spray Head is designed for high-volume cleaning and washdown applications requiring durable, corrosion-resistant equipment.

Turning the spray head allows the operator to adjust both the water volume and spray pattern, providing controlled rinsing across machinery, floors, vehicles, walls and processing areas.

Its stainless steel housing and EPDM protective cover make it particularly suitable for demanding industrial environments. The spray head is approved in accordance with EC No. 1935/2004 and EU No. 10/2011, making it suitable for appropriate food and beverage processing applications.

Performance Figures

• Maximum pressure: 16 Bar
• Maximum flow rate: 150 LPM
• Maximum water temperature: 80°C
• Spray pattern: Adjustable
• Water volume: Adjustable
• Weight: Approximately 520 g

Construction Details

The spray head uses a robust stainless steel housing for strength and corrosion resistance. An EPDM cover helps protect the head and surrounding equipment while providing additional grip during operation.

EPDM seals are used internally for dependable operation in industrial washdown environments.

Inlet Connection

• Inlet: 1/2″ BSP female
• AKBO model: AKRSH03-B
• Product code: 406-1081

Check the connection dimensions using the Flowjet BSP Thread Size Chart.

Key Features

• Heavy-duty stainless steel housing
• Maximum flow rate of 150 LPM
• Maximum working pressure of 16 Bar
• Suitable for water temperatures up to 80°C
• Adjustable water volume
• Adjustable spray pattern
• Protective EPDM cover
• EPDM internal seals
• 1/2″ BSP female inlet
• Food-contact approved construction
• Suitable for industrial and food-production washdown systems
• Manufactured by AKBO

Always check that the available water pressure, flow rate, temperature and hose connection are compatible before installation. This spray head requires a suitable upstream control valve or washdown gun if positive shut-off is needed.

For help checking compatibility with your washdown system, contact Flowjet Cleaning Equipment.
