PA Foam Injector With Metering Valve PA Foam Injector With Metering Valve

AIS Adjustable Chemical / Foam Injector 3/8" BSP – 6–32 L/min, 310 Bar Stainless Steel (MTM AIS35)

MTM Hydro

AIS Adjustable Chemical / Foam Injector 3/8" BSP – 6–32 L/min, 310 Bar Stainless Steel (MTM AIS35)

SKU 1141020120

Max pressure: 310 bar

Inlet: ⅜" BSP Female
Outlet: ⅜" BSP Male · Thread chart

£150.95 ex VAT

£181.14 inc. VAT

In stockOrder by 2pm for next-day delivery.

Free UK mainland delivery over £200 ex VATDelivery & returns
Finance on orders over £1,000Kennet finance calculator
Bulk discounts available
Large or urgent order?Stock moves quickly. Call 015395 66193 to confirm availability.

Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

MTM Hydro AIS35 adjustable chemical and foam injector in stainless steel. A metering valve adjusts the chemical draw, and the 10mm chemical barb rotates through 360° so the hose can be positioned as needed. It is used for industrial washdown, vehicle wash systems and foam cleaning.

It covers flows from 6 to 32 litres per minute when fitted with the matching AIS35 venturi and nozzle kit, sold separately. It has a 3/8" BSP female inlet and a 3/8" BSP male outlet and is rated to 310 bar and 90°C.

Specification

Part number	1141020120
Brand	MTM Hydro
Model	AIS35
Type	Adjustable chemical and foam injector
Flow range	6 to 32 litres per minute, depending on nozzle kit
Inlet	3/8" BSP female
Outlet	3/8" BSP male
Chemical connection	10mm barb, rotates through 360°
Dose adjustment	Metering valve
Material	Stainless steel
Maximum pressure	310 bar
Maximum temperature	90°C

Compatibility

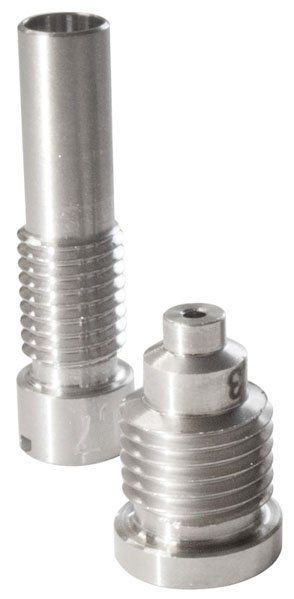

AIS35 venturi and nozzle kits.

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

MTM Hydro AIS35 stainless steel adjustable chemical and foam injector, 6 to 32 litres per minute with nozzle kit, 310 bar.

Specifications

Brand: MTM Hydro
Max Pressure Rating: 310 bar
Inlet: ⅜" BSP Female

Outlet: ⅜" BSP Male
Foam & Chemical Method: Pressure Washer Foam Injector
Material: Stainless Steel

Technical information

6-32 Lpm flow*

310 Bar rated pressure

90°C rated temperature

Variable rate dependant on nozzle

Stainless steel construction

3/8" BSPF inlet

3/8" BSPM outlet

10mm chemical barb (can rotate through 360°)

Documents

MTM AIS35 TECH DATA
