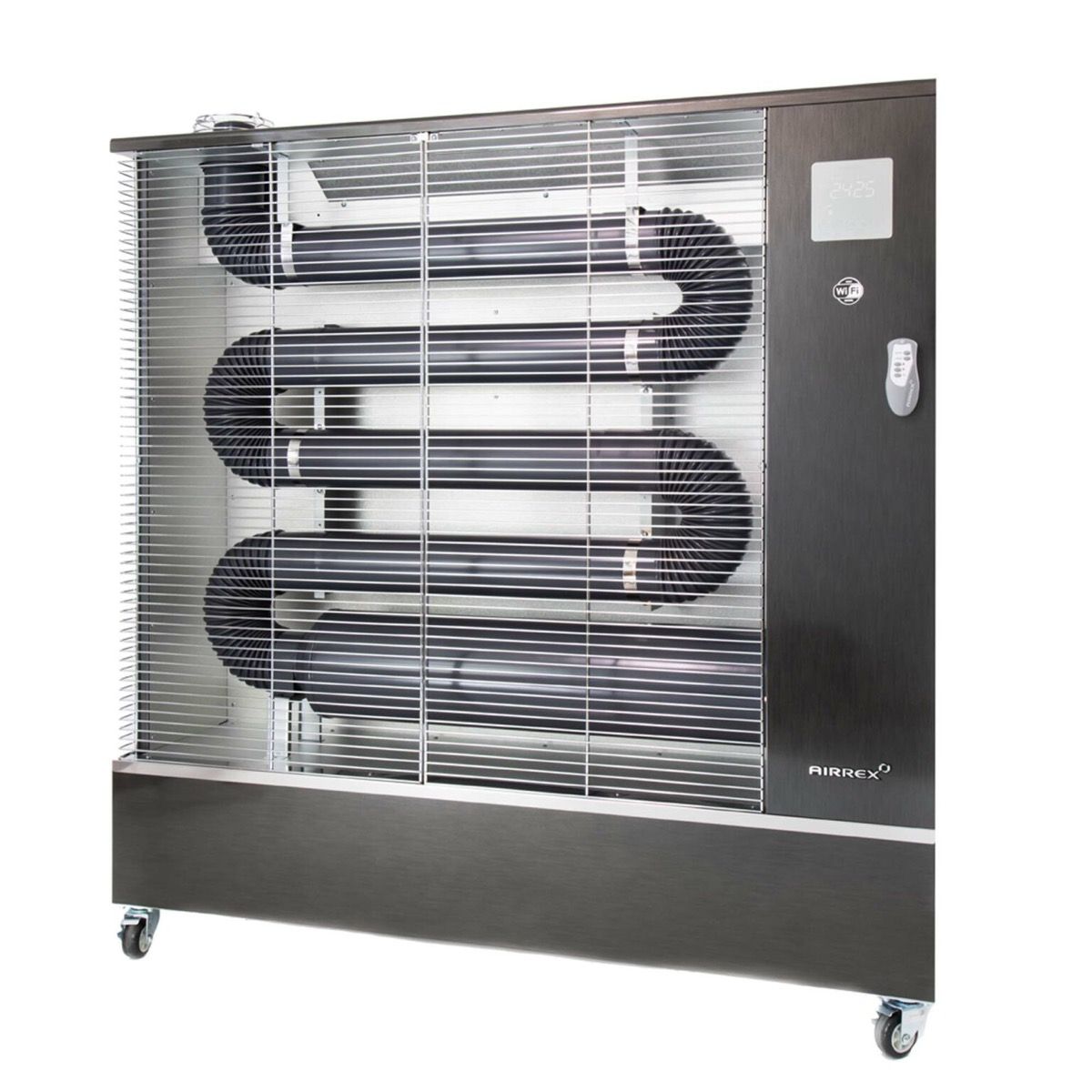

Name: Airrex AH-800i Diesel Infrared Heater, 22kW, 230V
Brand: Rexener
SKU: AH-800i

Overview

Airrex AH-800i diesel-fuelled infrared heater with a 22kW (75,000 BTU per hour) output, for heating indoor spaces up to 2000 cubic metres such as workshops, warehouses, garages and barns. It has no fan, so it does not blow dust around.

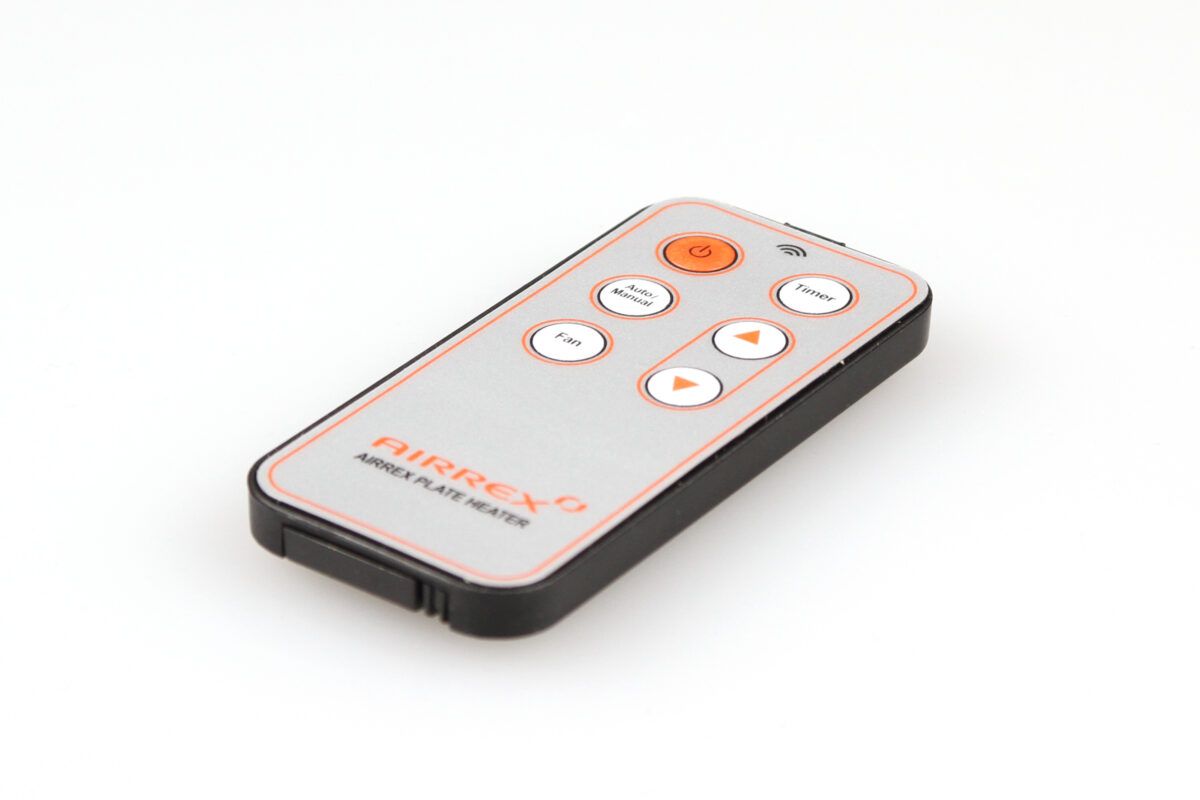

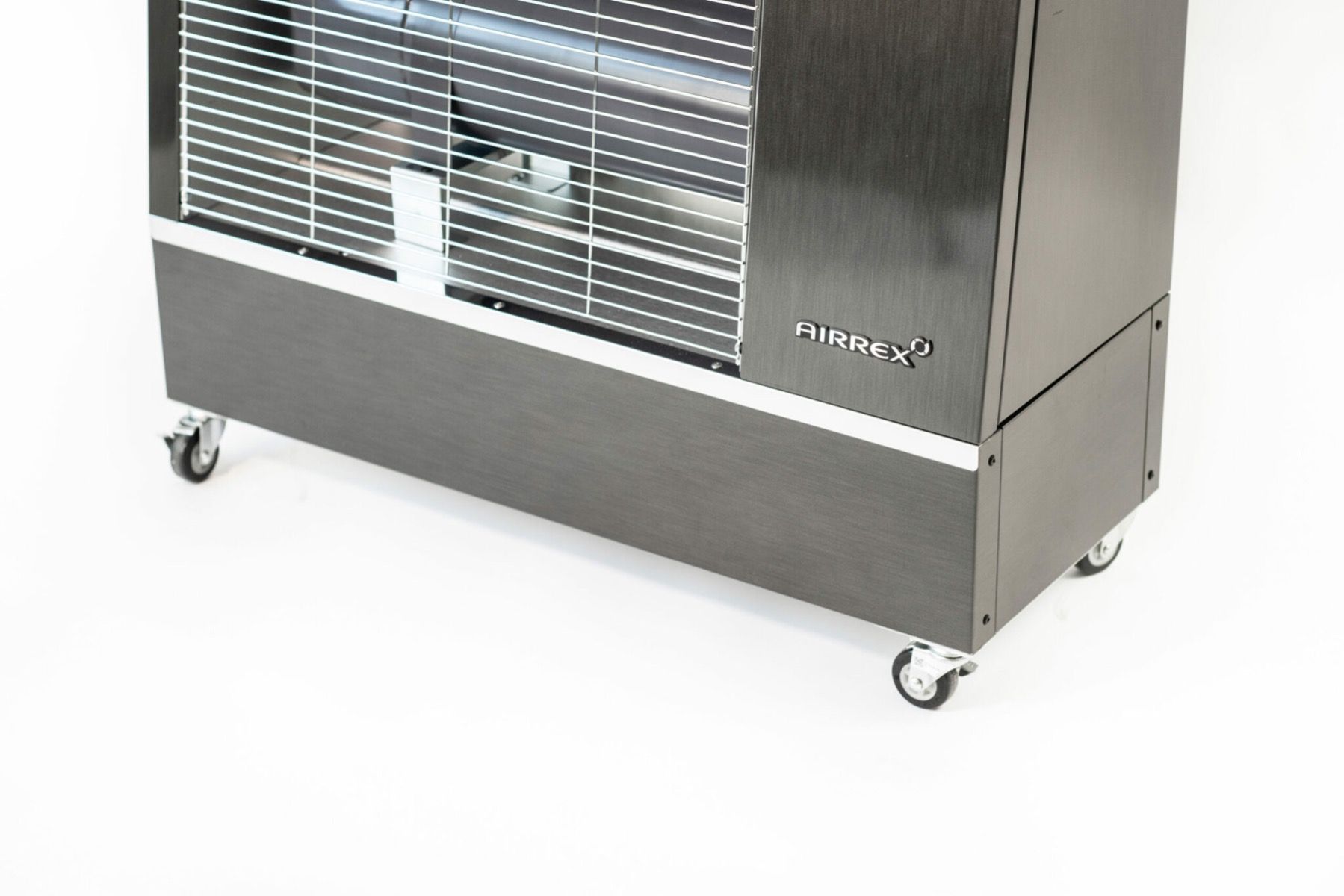

It runs on diesel, red diesel or biodiesel from a 70 litre tank, using 1.71 to 1.9 litres per hour. A thermostat holds a set temperature between 0 and 40°C, with a 0 to 24 hour stop timer and an interval mode. It can be controlled from the soft-touch LED panel, an infrared remote or the Airrex app over WiFi or 4G. Safety systems shut it down on tilt, shaking, overheating, low fuel or a sensor error. It is mounted on wheels and comes with a battery-powered fuel pump for refuelling. A three-year warranty applies on registration.

Specification

Part number	AH-800i
Brand	Rexener
Heat output	22kW, 75,064 BTU per hour
Heating area	Up to 2000 cubic metres
Fuels	Diesel, red diesel, biodiesel, renewable diesel
Fuel consumption	1.71 to 1.9 litres per hour
Fuel tank	70 litres
Power consumption	80W, 230V, 50Hz
Noise level	48 dB
Thermostat	Automatic, 0 to 40°C
Timers	0 to 24 hour stop timer; interval mode of 5 to 60 minutes with 5 minute breaks
Controls	Soft-touch LED panel, infrared remote, Airrex app over WiFi or 4G
Safety	Odour prevention, fuel level, tilt, shaking and overheating protection
Weight	81kg
Dimensions	1300 x 350 x 1340mm (W x D x H)

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Airrex AH-800i 22kW diesel infrared heater with 70 litre tank and app control.

Specifications

Brand: Rexener

Weight: 81 kg

Technical information

HEATING CAPACITY. 22 kW/h = 75064 Btu/h

WEIGHT 81 kg

DIMENSIONS 130 x 35 x 134 cm (W x D x H)

SUITABLE FUELS Biodiesel, renewable diesel, diesel or red diesel

FUEL CONSUMPTION 1,71 – 1,9 L/h (continuous heating))

FUEL TANK VOLUME 70 L

POWER CONSUMPTION 80 W (230 V, 50 Hz)

NOISE LEVEL 48dB

THERMOSTAT CONTROL Yes, automatic

TEMPERATURE ADJUSTMENT RANGE 0-40°C

REMOTE-CONTROLLED Yes

NETWORK CONNECTION WiFi (or 4G)

MOBILE APPLICATIONS Airrex (Android Google Play or IOS AppStore)

CONTROL PANEL Simple soft-touch control panel with LED screen

STOP TIMER 0-24h

INTERVAL TIMER 5-60min use time + 5min break in between

REMOTE CONTROL Yes. Infrared

SECURITY SYSTEM Odour prevention system, fuel level, tilt, shaking, overheating and burner operation detector and alarm, error sensor for temperature sensor, locking device, automatic shutdown
