Overview

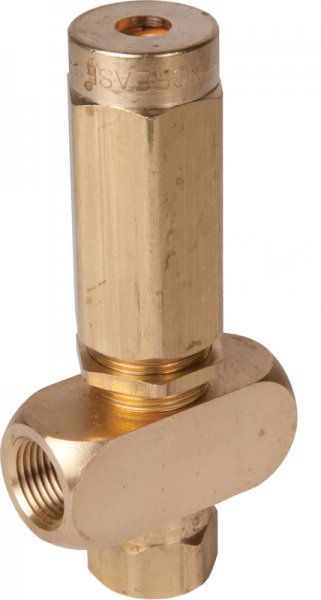

556 series pressure regulator for 70 bar maximum, mounted in line. It has a brass body, a red spring and stainless steel internals, and is not preset.

Specification

Maximum pressure: 70 bar
Maximum flow: 25 LPM
Rated water temperature: 80°C
Mounting: in line
Body: brass
Spring: red
Internals: stainless steel
Not preset
Inlet: 3/8" NPT female
Outlet: 3/8" NPT female
Bypass: 3/8" NPT female

556 series in line pressure regulator, 70 bar and 25 LPM maximum, with a brass body, red spring and stainless steel internals.

Specifications

Max Pressure Rating: 70 bar
Material: Brass

Weight: 0.4 kg

Technical information

70 Bar max pressure

25 Lpm max flow

80°C rated water temperature

Mount in line

Brass body - Red spring

Stainless steel internals

Not preset

3/8"NPT female thread inlet

3/8"NPT female thread outlet

3/8"NPT female thread bypass

Documents

SMC 555-556 Series and Parts List.pdf

SMC 556 Series Technical Data.pdf
