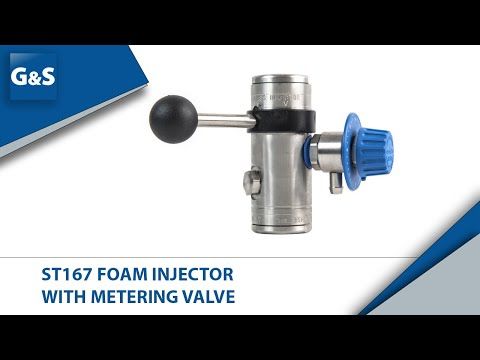

R+M Suttner 500 BAR bypass injectors ST-167, easyfoam365+ -2.0mm, 80 LPM, 1/2" F x 1/2" F

ST167 easyfoam365+ bypass foam injector from R+M Suttner, 500 bar version, in stainless steel, 2.0mm injector size. Used with an ST72, ST74 or ST75 foam lance, or an adjustable or triple nozzle, it draws chemical into the water stream, and a lever switches between chemical and rinse mode. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock.

Chemical dosing is set with 10 exchangeable nozzle inserts from 0.5mm to 2.0mm, and the chemical connection is a 9mm hose tail. Fit a chemical filter on the end of the chemical tube and check the viscosity of the chemical, as it affects the draw rate. It has a 1/2" BSP female inlet and outlet and is rated to 500 bar, 80 litres per minute and 100°C. It weighs 1.26kg.

Specification

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.
