R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 1
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 2
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 3
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 4
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 5
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 6
R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM – image 7
R&M SuttnerCompressed Air Injector

R+M Suttner ST168 By-Pass Inj 1/2" F SS + 1.3mm Nozzle, 350 Bar, 80 LPM

SKU 200168505
Max pressure
350 bar
Max flow
80 LPM
Max temperature
100°C
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
£392.00 ex VAT
£470.40 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

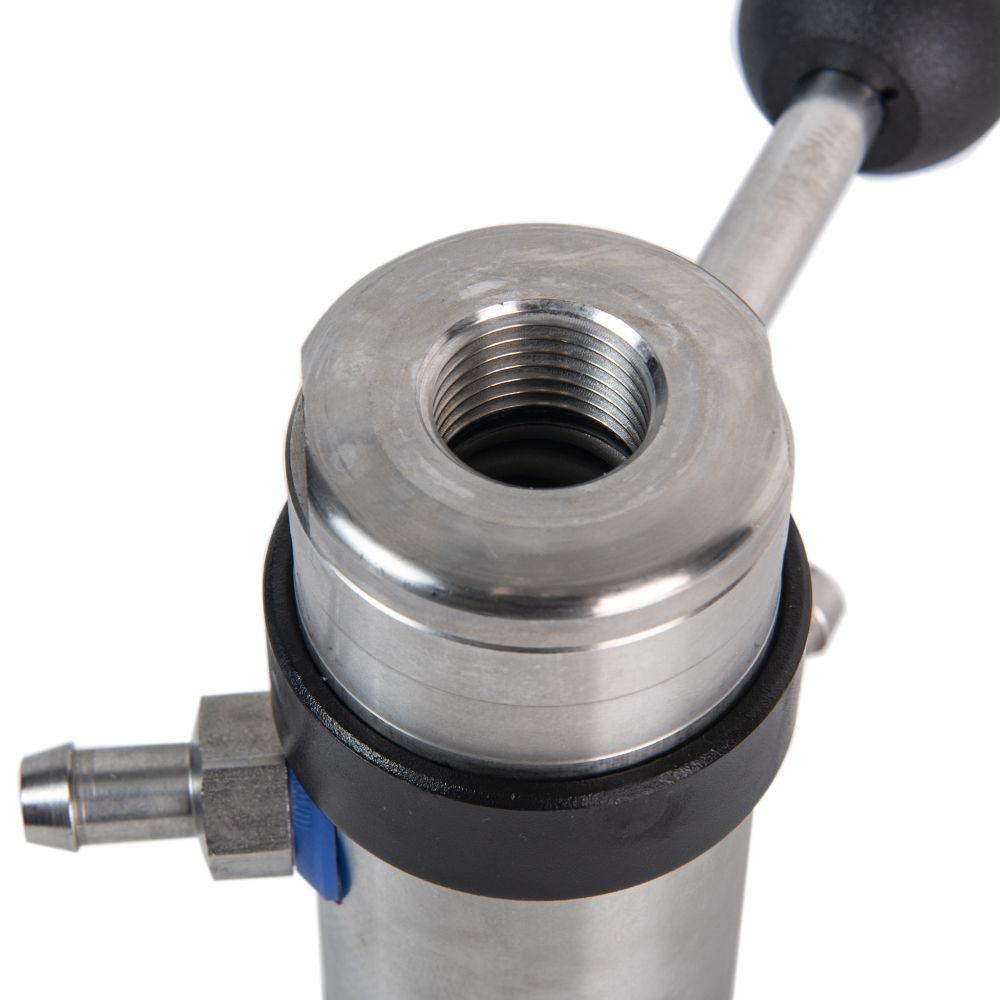

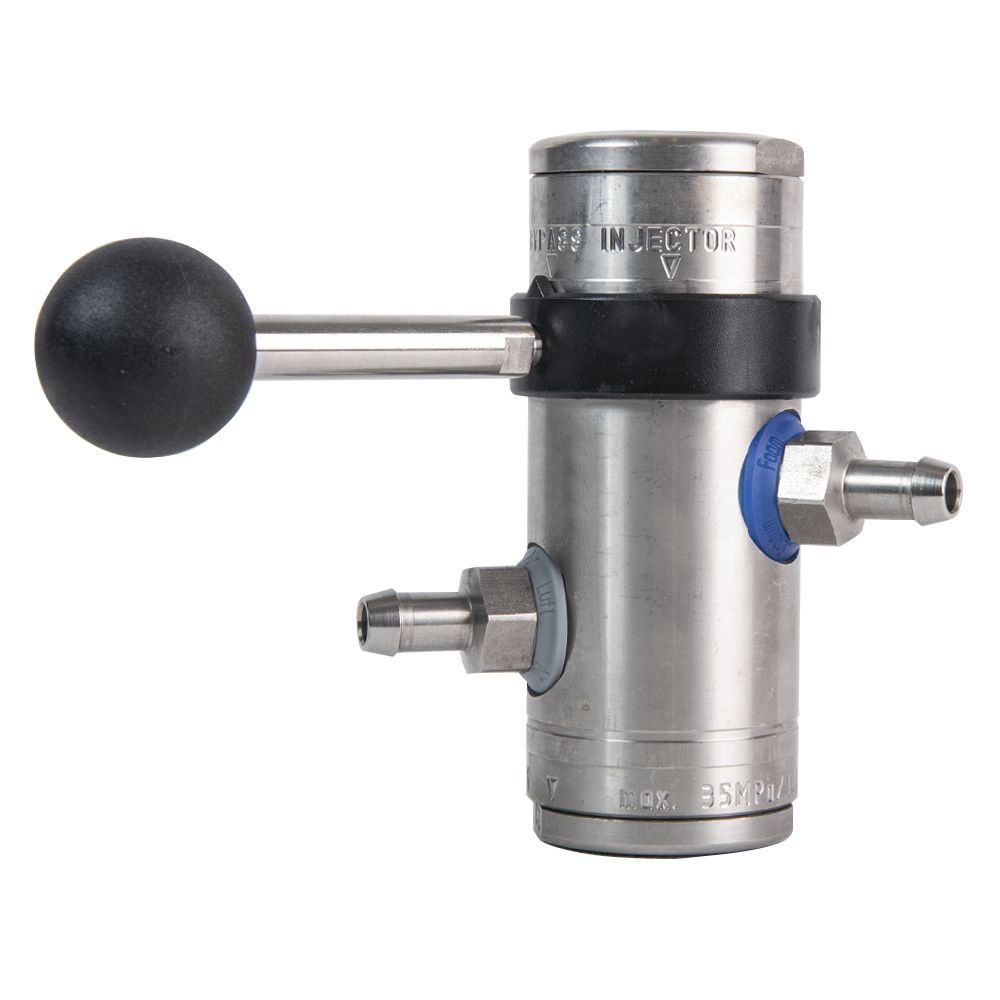

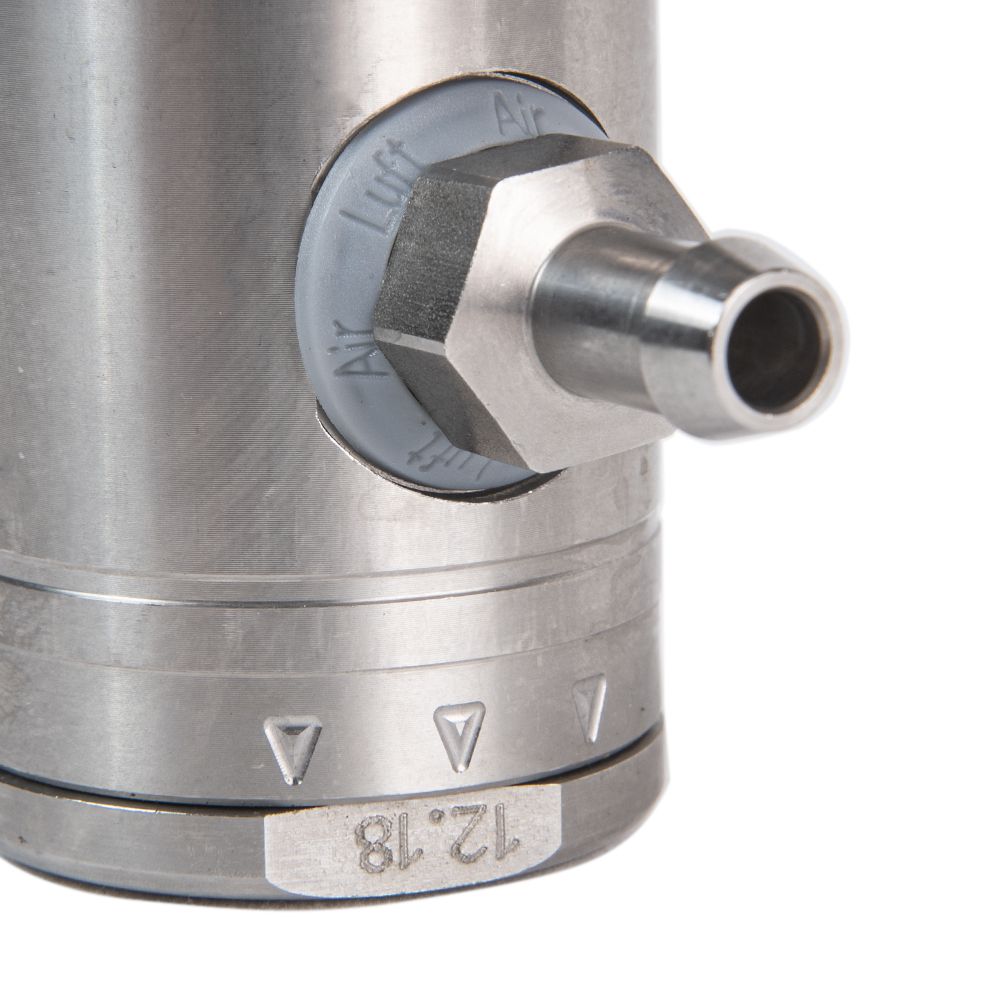

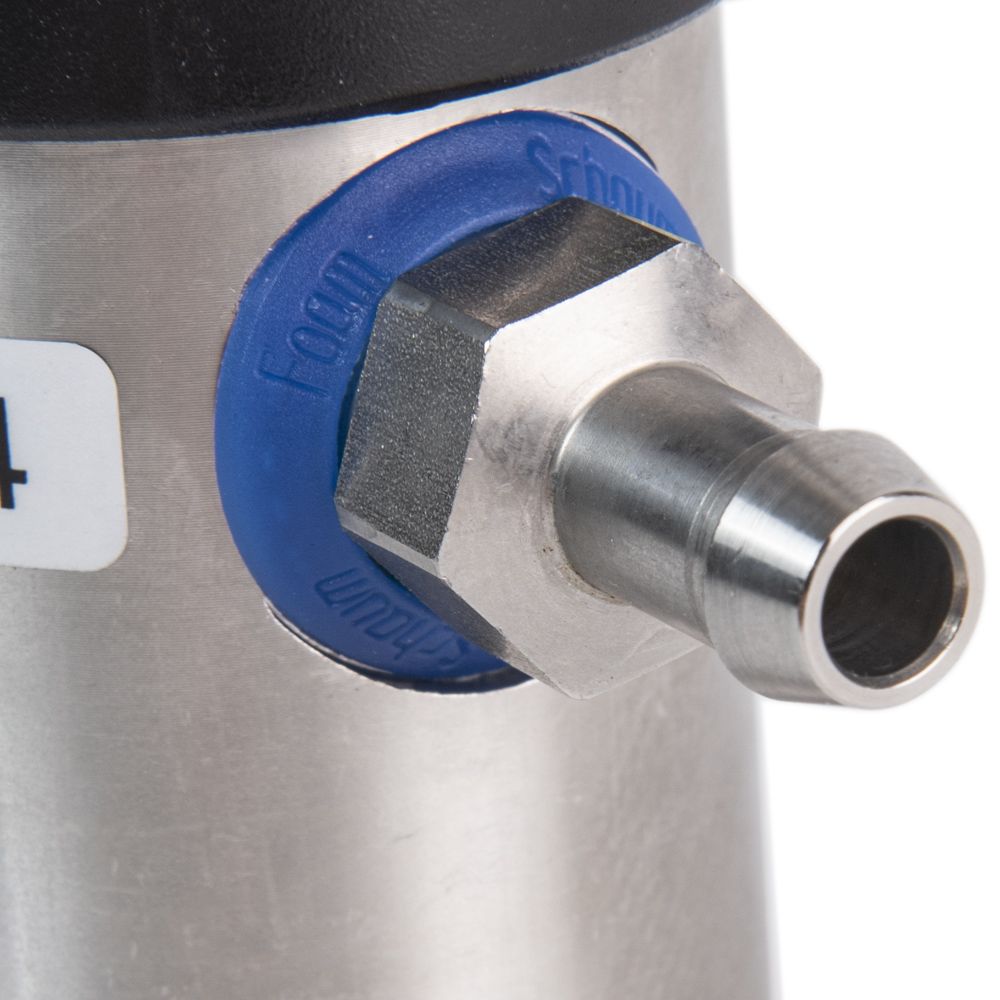

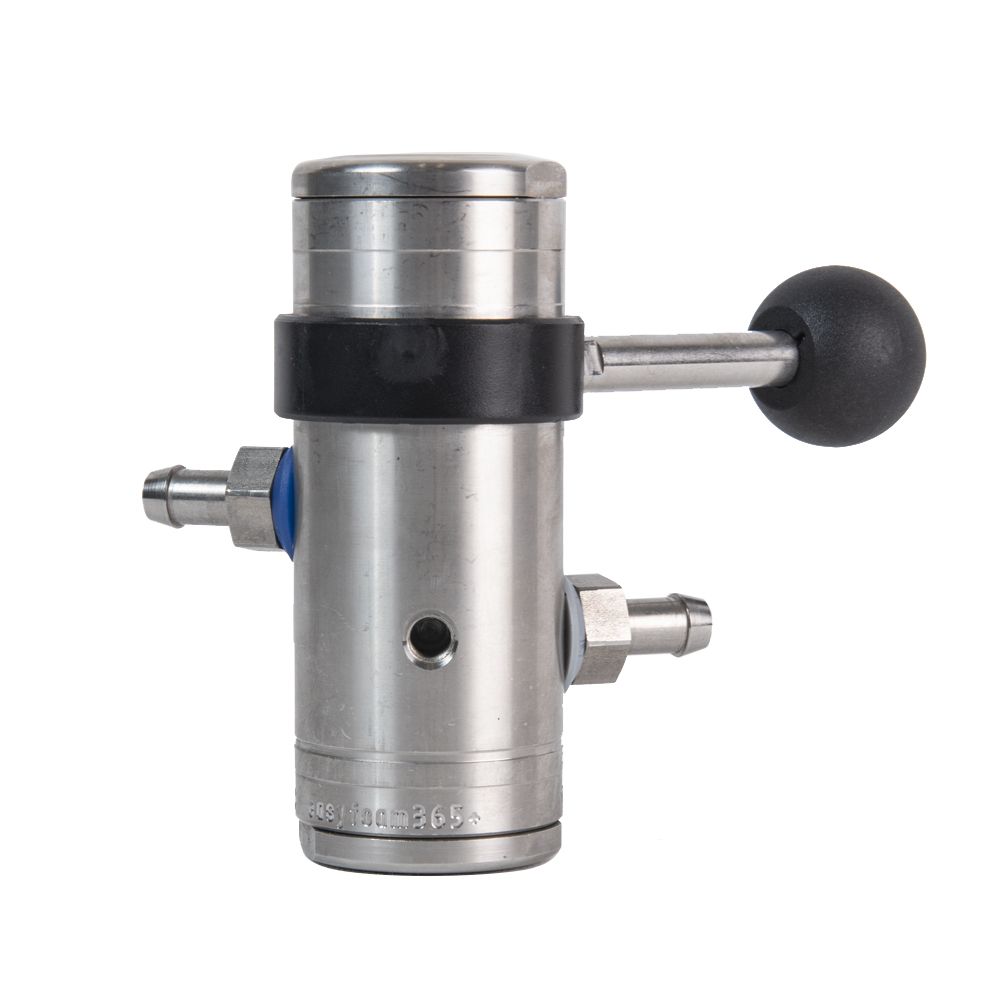

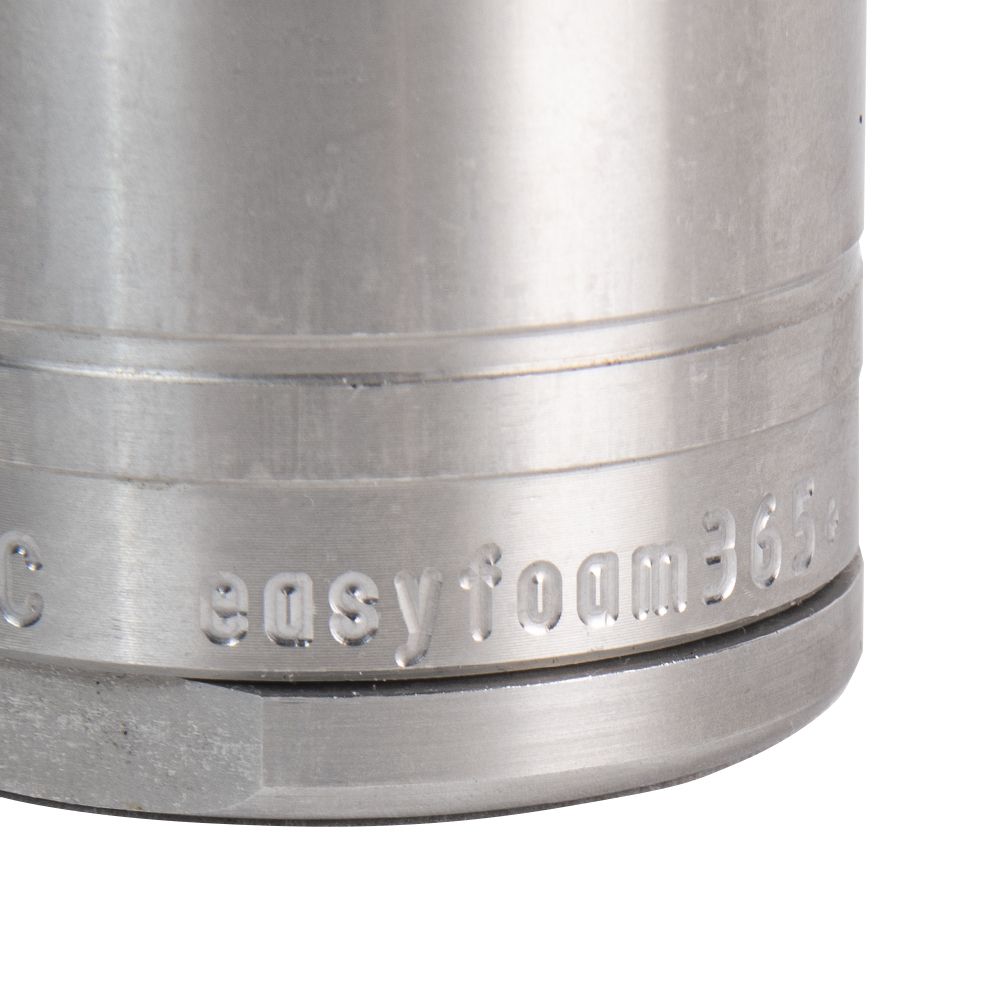

R+M Suttner ST168 easyfoam365+ bypass foam injector in stainless steel with a 1.3mm injector nozzle and a compressed air module. A lever on the injector switches between chemical and rinse mode.

It has 1/2" BSP female inlet and outlet connections and is rated to 350 bar, 80 litres per minute and 100°C. It can be used on high and low pressure systems, or on water line pressure of 5 bar, and works with a foam lance without air intake. Use a DN12 hose with a 1/2" inlet and outlet wash gun to stop the foam collapsing when using compressed air. It weighs 1.25kg.

Specification

Part number200168505
BrandR+M Suttner
MaterialStainless steel
Orifice diameter1.3mm
Maximum pressure350 bar
Maximum flow80 litres per minute
Maximum temperature100°C
Inlet1/2" BSP female
Outlet1/2" BSP female
Hose tail9mm
Weight1.25kg
Country of originGermany

Before installation: Choose the nozzle size to suit the pressure and flow of your pump using our pressure washer nozzle chart, and check the thread using our BSP thread size chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
80 LPM
Inlet
½" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam & Chemical Method
Compressed Air Foam Injector
Injector / Nozzle Size
ST-168 Injector (⌀1.3mm)
Material
Stainless Steel
Weight
1.25 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 80 litres per minute

Maximum temperature: 100°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Hose tail: 9mm

Material: Stainless steel

Orifice diameter: 1.3mm

Weight: 1.25kg

Country of origin: Germany

Compare similar products

Detail
This product
R+M Suttner Hose Tail Plastic Tapered Male-3/8" TM x 10mm
Spraying Systems High Pressure Nozzle – 1/8" MEG, 25° Fan Jet, Size 06 PMEG (Stainless Steel)
VB60 Ultra High Pressure Unloader Without Switch, 600 Bar, 60 LPM, 1/2" F x 1/2" F
Price£392.00 ex VAT
£470.40 inc VAT
Call for price£9.60 ex VAT
£11.52 inc VAT
£1,062.00 ex VAT
£1,274.40 inc VAT
Max pressure350 bar––600 bar
Max flow80 LPM––60 LPM
Max temperature100°C60°C–90°C
Inlet½" BSP Female⅜" BSP Male⅛" Male NPT PMEG½" BSP Female
Outlet½" BSP FemaleHose Tail ⌀ 10mm (⅜)–½" BSP Female
AvailabilityIn stockIn stockIn stockIn stock

Documents

200168505200168505
ST-167 & 168 Foam Injector Technical DataST-167 & 168 Foam Injector Technical Data
Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
