ST167 Foam Injector with BypassST167 Foam Injector with Bypass
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM – image 1
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM – image 2
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM – image 3
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM – image 4
R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM – image 5
R&M Suttner

R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 2.2mm, 350 Bar, 80 LPM

SKU 200167610
Max pressure
350 bar
Max flow
80 LPM
Max temperature
100°C
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
£395.00 ex VAT
£474.00 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

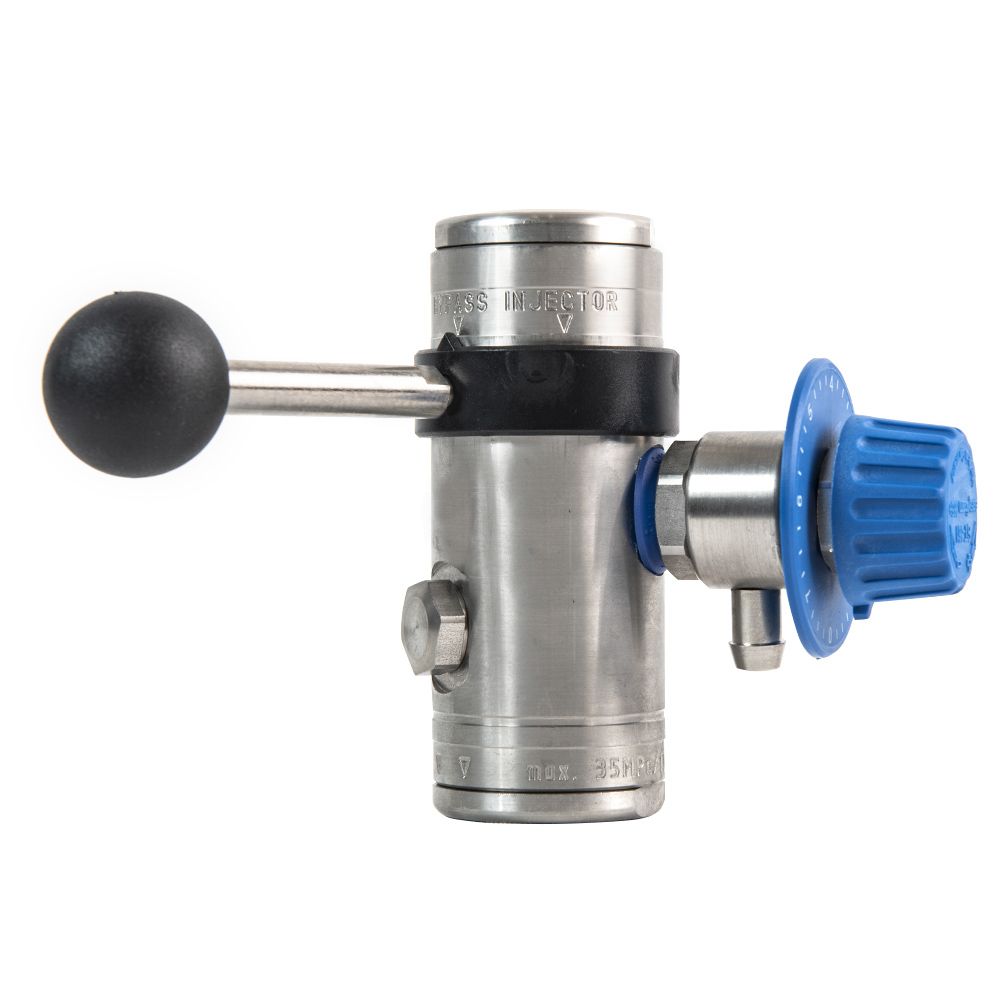

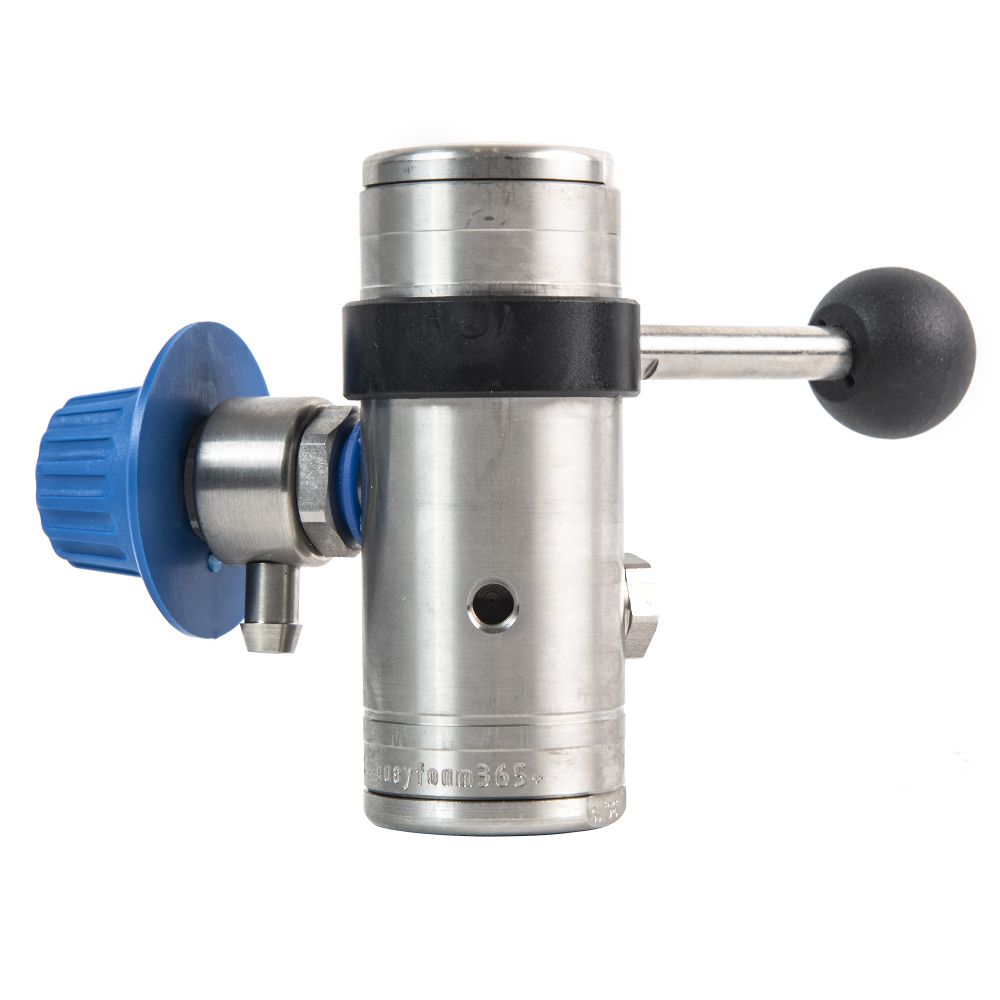

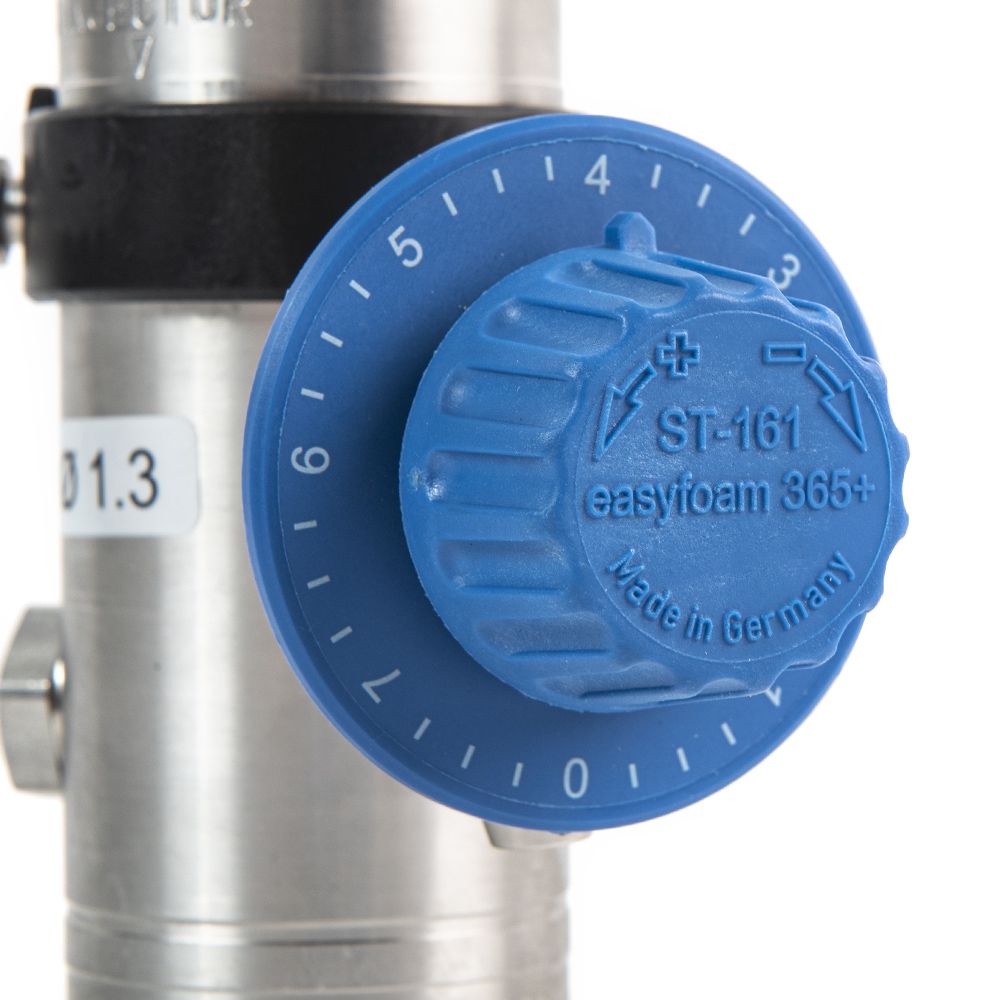

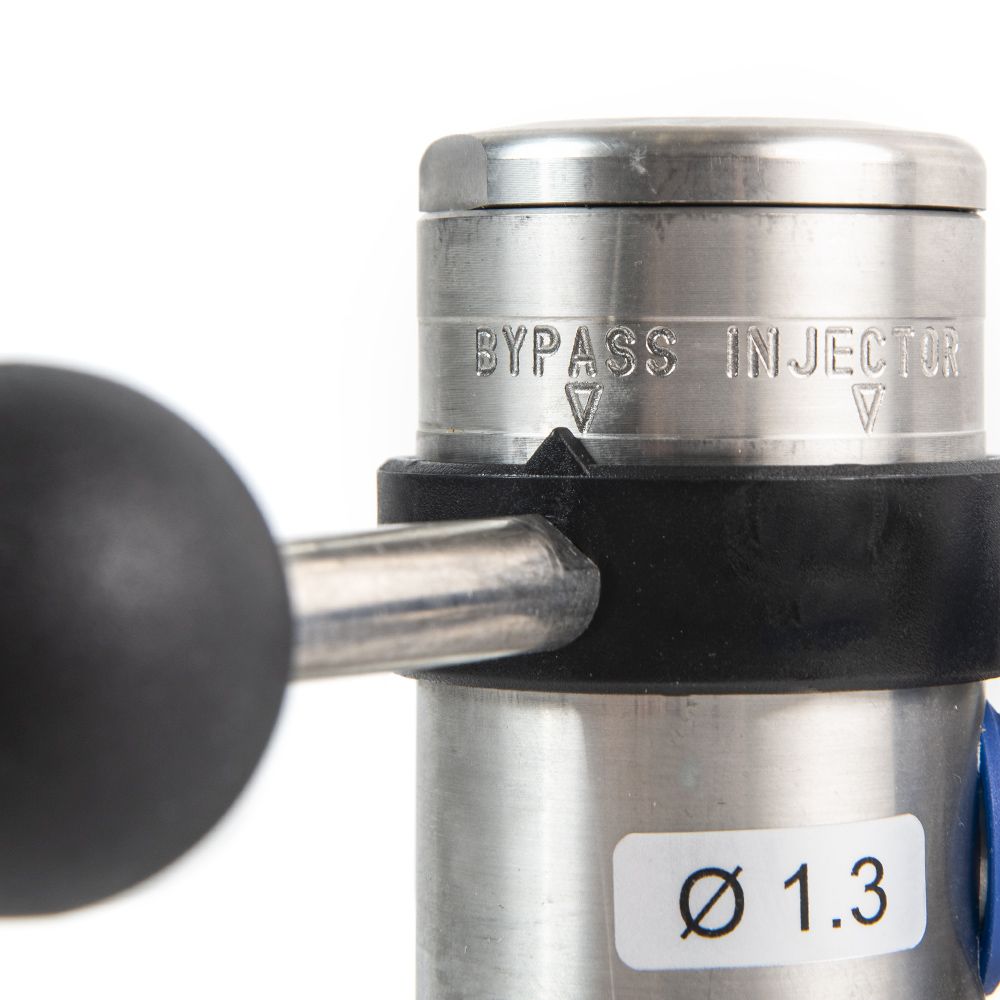

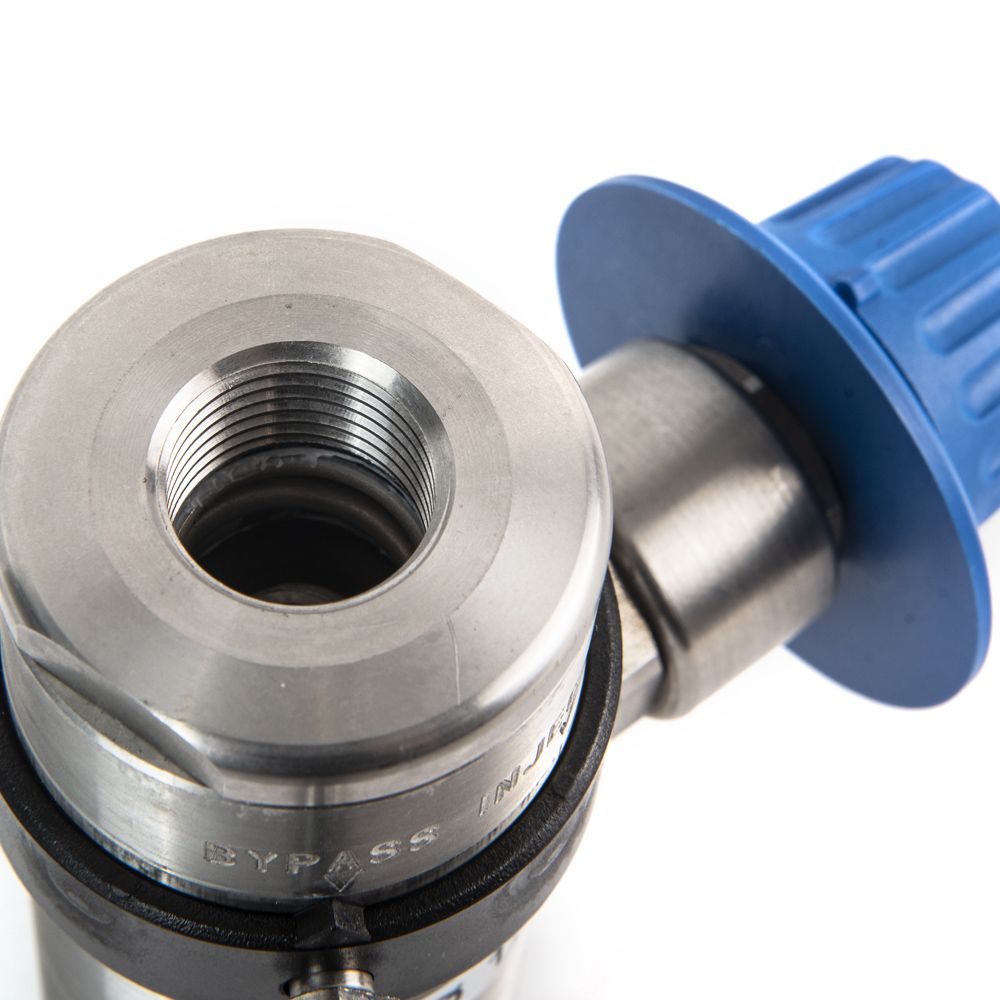

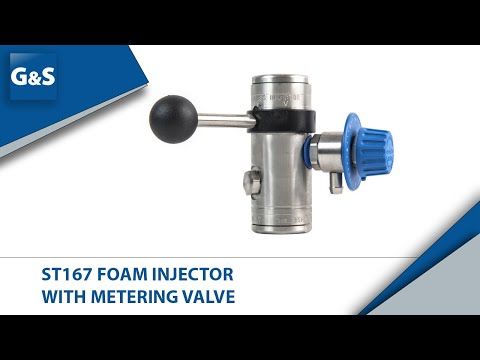

Suttner ST167 easyfoam365+ bypass foam injector in stainless steel with a metering valve and a 2.2mm nozzle. A lever switches between chemical and rinse mode.

Inlet and outlet are 1/2" BSP female. It is rated to 350 bar, 80 litres per minute and 100°C. It is used with an ST72, ST74 or ST75 foam lance, or an adjustable or triple nozzle, and dosing is set by turning the metering valve. It weighs 1.35kg.

Specification

Part number200167610
BrandR+M Suttner
MaterialStainless steel
ColourBlue
Orifice diameter2.2mm
Maximum pressure350 bar
Maximum flow80 litres per minute
Maximum temperature100°C
Inlet1/2" BSP female
Outlet1/2" BSP female
Weight1.35kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
80 LPM
Inlet
½" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam & Chemical Method
Pressure Washer Foam Injector
Injector / Nozzle Size
ST-167 Injector (⌀2.2mm)
Material
Stainless Steel
Colour
Blue
Weight
1.35 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 80 litres per minute

Maximum temperature: 100°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Material: Stainless steel

Colour: Blue

Orifice diameter: 2.2mm

Weight: 1.35kg

Country of origin: Germany
