R+M Suttner ST167 By-Pass Inj 1/2" F SS+VLV+ 1.7mm, 350 Bar, 80 LPM

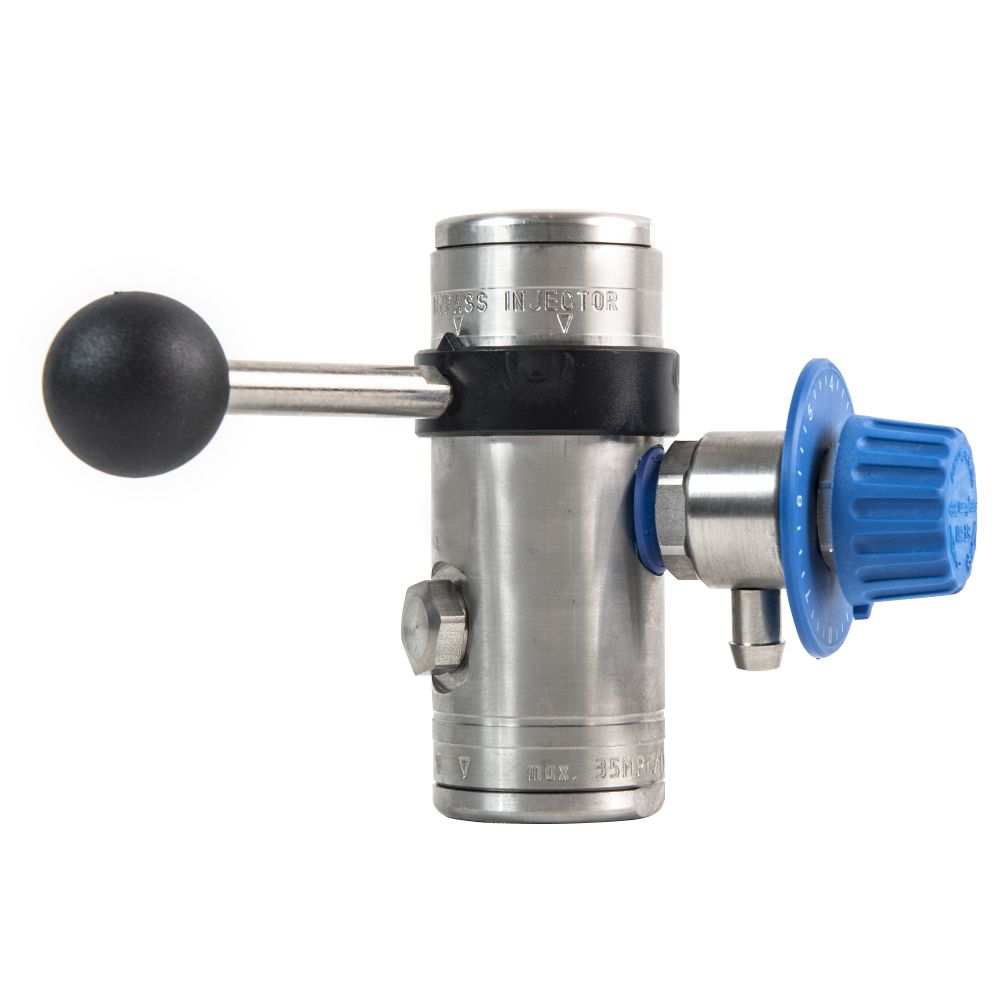

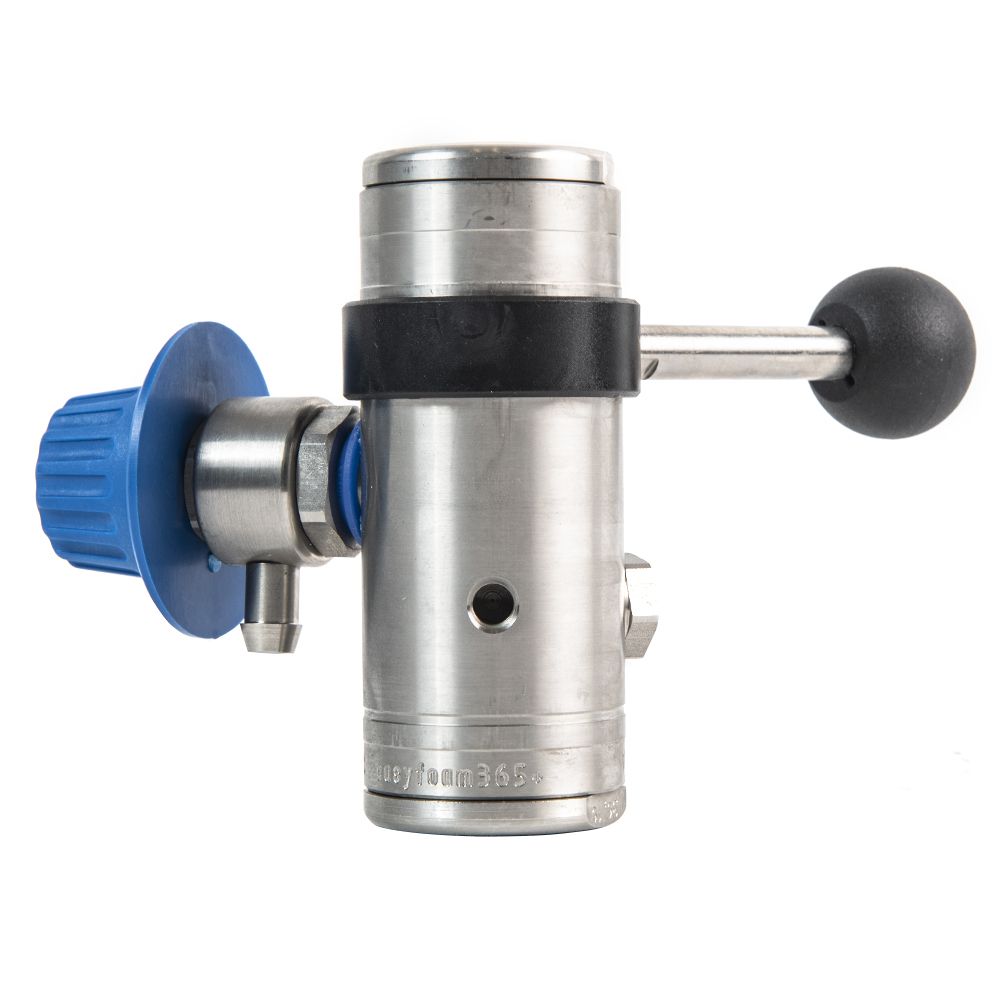

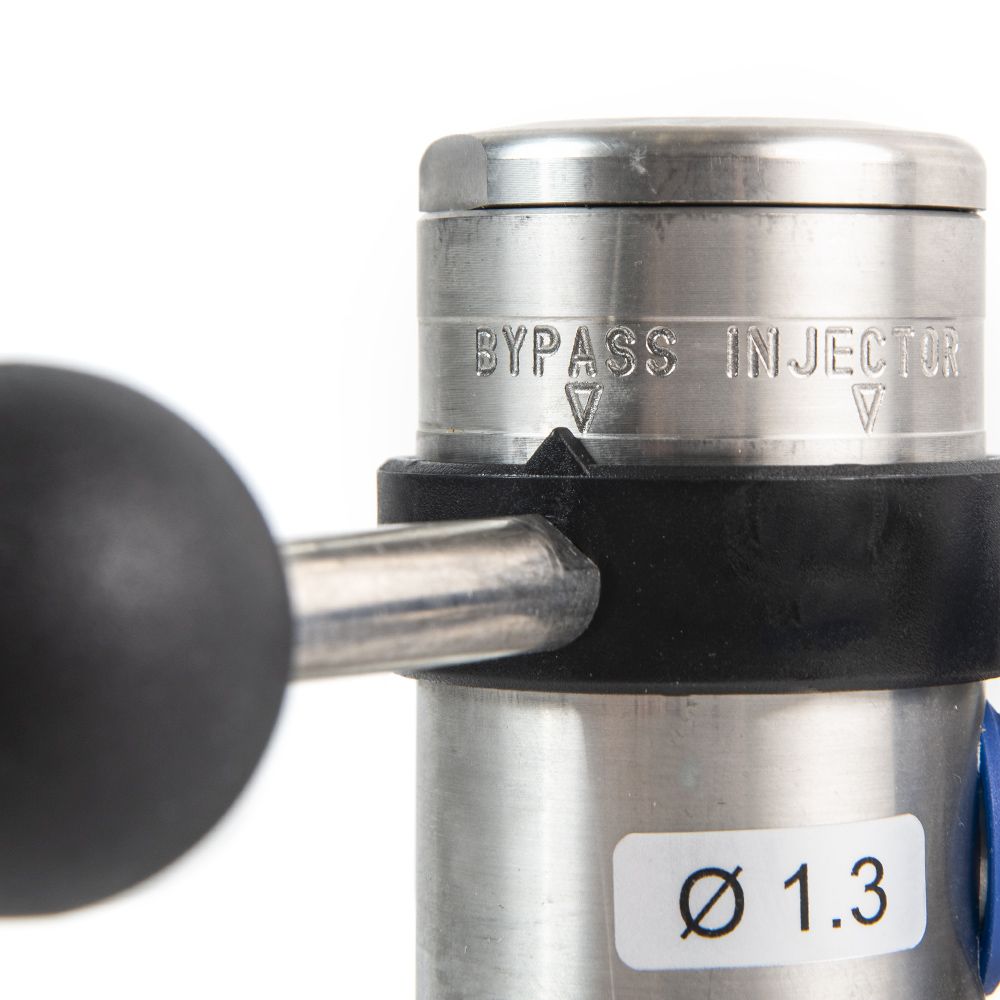

ST167 easyfoam365+ bypass foam injector from R+M Suttner in stainless steel, with a metering valve and a 1.7mm injector size. Used with an ST72, ST74 or ST75 foam lance, it draws chemical into the water stream, and a lever switches between chemical and rinse mode. It is used for vehicle washing, factory hygiene and agricultural cleaning.

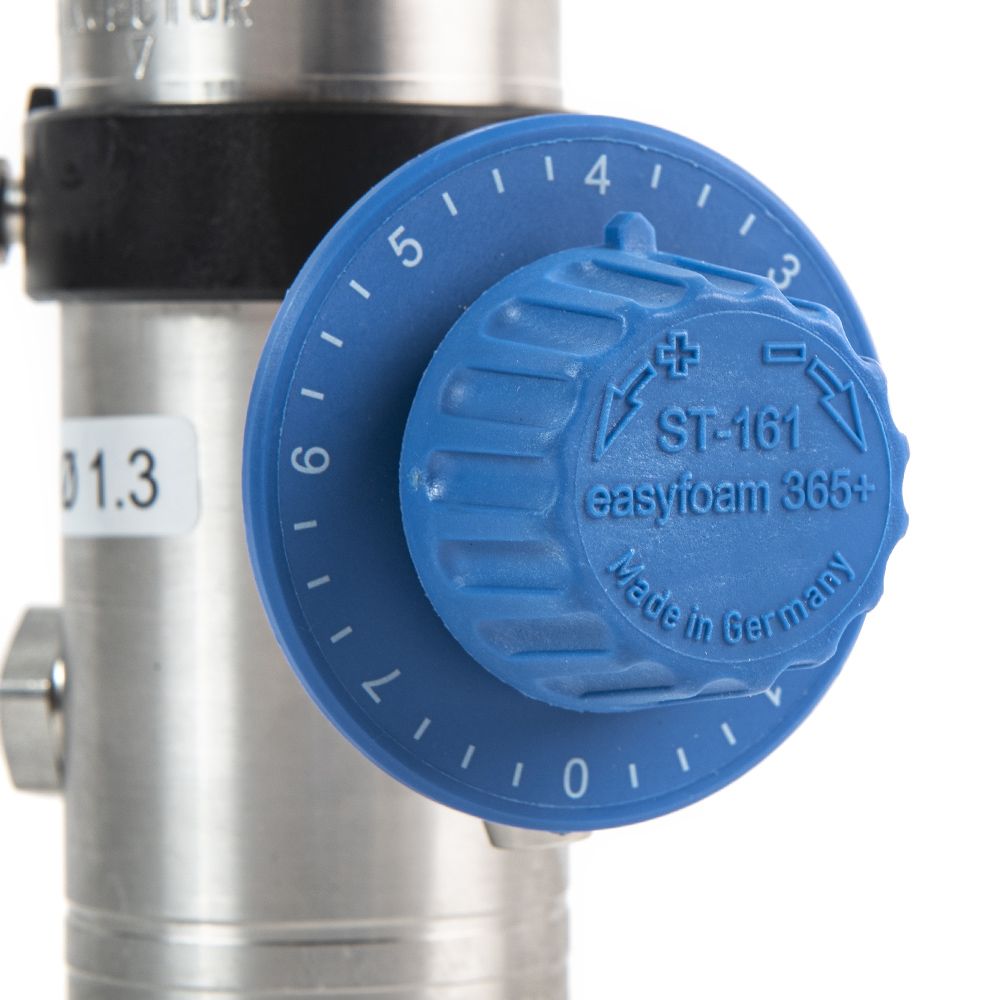

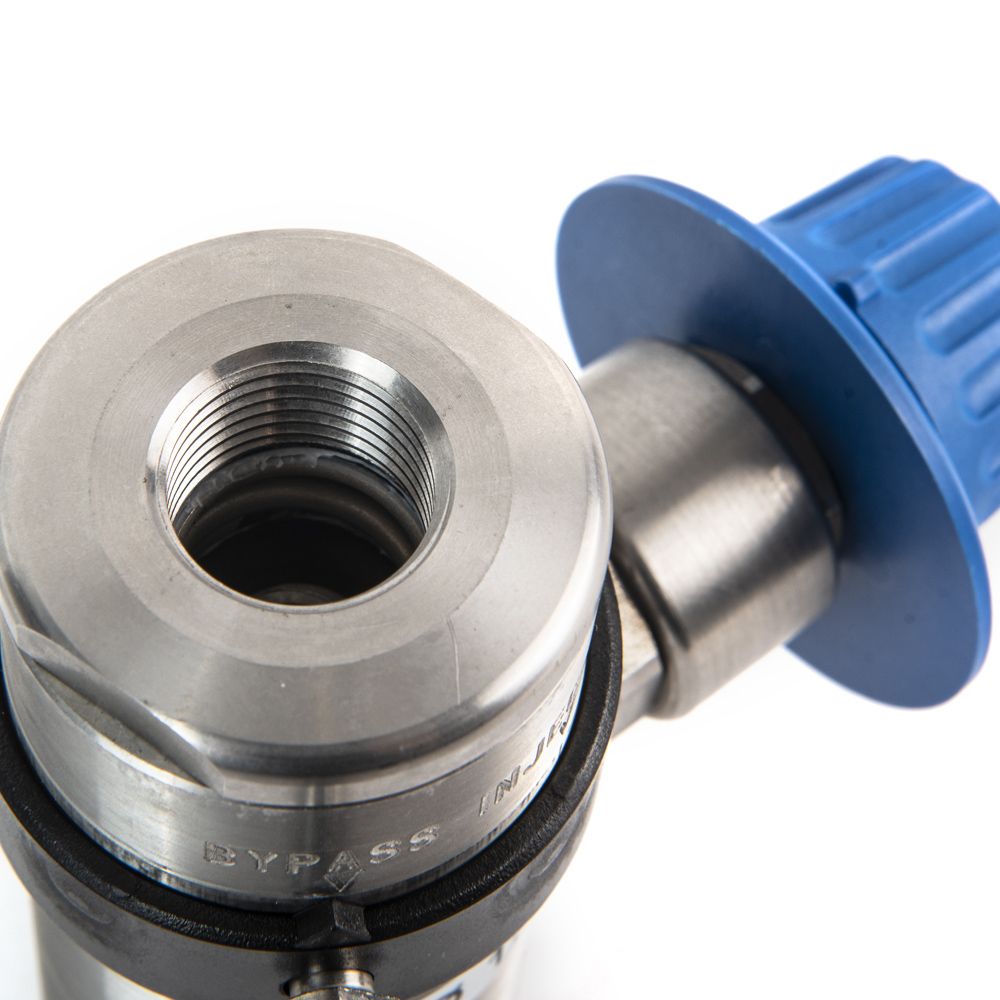

Chemical dosing is adjusted with the metering valve, without nozzle inserts. It has a 1/2" BSP female inlet and outlet and is rated to 350 bar, 80 litres per minute and 100°C. The injector is also made in sizes from 1.2mm to 2.8mm. It weighs 1.35kg.

Specification

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.
