350 BAR bypass injectors ST-167, With Metering Valve, easyfoam365+,
ST-167 Foam Injector
350 BAR bypass injectors ST-167, With Metering Valve, easyfoam365+, – image 2
From £395.00 ex VAT
R&M SuttnerClick For More Sizes

350 BAR bypass injectors ST-167, With Metering Valve, easyfoam365+,

SKU 350 BAR bypass injectors ST-167, With Metering Valve
Max pressure
350 bar
Max flow
80 LPM
Max temperature
100°C
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
Injector / Nozzle Size
ST-167 Injector (⌀1.2mm)
ST-167 Injector (⌀1.3mm)
ST-167 Injector (⌀1.4mm)
ST-167 Injector (⌀1.5mm)
ST-167 Injector (⌀1.6mm)
ST-167 Injector (⌀1.7mm)
ST-167 Injector (⌀1.8mm)
ST-167 Injector (⌀1.9mm)
ST-167 Injector (⌀2.0mm)
ST-167 Injector (⌀2.1mm)
ST-167 Injector (⌀2.3mm)
ST-167 Injector (⌀2.4mm)
ST-167 Injector (⌀2.5mm)
ST-167 Injector (⌀2.8mm)
£395.00 ex VAT
£474.00 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

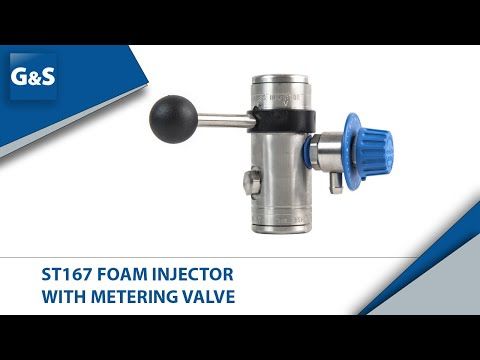

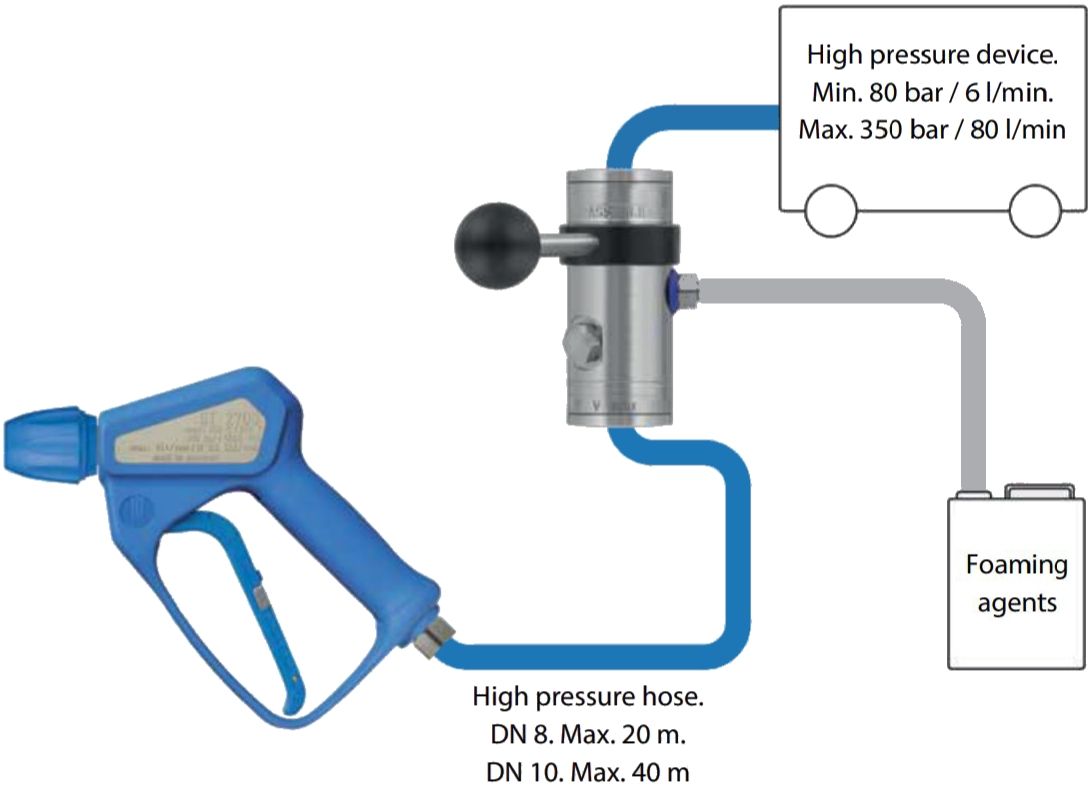

ST167 easyfoam365+ bypass foam injector from R+M Suttner in stainless steel, with a metering valve. Used with an ST72, ST74 or ST75 foam lance, or an adjustable or triple nozzle, it draws chemical into the water stream, and a lever switches between chemical and rinse mode. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock. Choose the injector size, from 1.2mm to 2.8mm, when ordering.

Chemical dosing is adjusted with the metering valve, without nozzle inserts. It has a 1/2" BSP female inlet and outlet and is rated to 350 bar and 100°C. On vertical surfaces, apply foam from the bottom upwards. The ST167 is also made in a 500 bar version.

Specification

Part number350 BAR bypass injectors ST-167, With Metering Valve
BrandR+M Suttner
SeriesST167 easyfoam365+
TypeBypass foam injector with metering valve
Injector size1.2mm to 2.8mm (choose when ordering)
Inlet1/2" BSP female
Outlet1/2" BSP female
Dose adjustmentMetering valve
MaterialStainless steel
Maximum pressure350 bar
Maximum temperature100°C

Compatibility

ST72, ST74 and ST75 foam lances, and adjustable and triple nozzles.

Sizing help

To choose the right nozzle size, see our foam nozzle size chart.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

R+M Suttner ST167 easyfoam365+ bypass foam injector with metering valve, 1/2" BSP female, 350 bar, choice of injector sizes.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
80 LPM
Inlet
½" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam and Chemical Method
Pressure Washer Foam Injector
Injector / Nozzle Size
ST-167 Injector (⌀1.2mm), ST-167 Injector (⌀1.3mm), ST-167 Injector (⌀1.4mm), ST-167 Injector (⌀1.5mm), ST-167 Injector (⌀1.6mm), ST-167 Injector (⌀1.7mm), ST-167 Injector (⌀1.8mm), ST-167 Injector (⌀1.9mm), ST-167 Injector (⌀2.0mm), ST-167 Injector (⌀2.1mm), ST-167 Injector (⌀2.3mm), ST-167 Injector (⌀2.4mm), ST-167 Injector (⌀2.5mm), ST-167 Injector (⌀2.8mm)
Material
Stainless Steel
Colour
Blue

Technical information

Stainless Steel

Inlet: 1/2" Female

Outlet: 1/2" Female

Max: 350 bar

Max: 100°C

Compare similar products

Detail
This product
R+M Suttner Injector Wall Bracket Inc Mounting Bolt
R+M Suttner ST-167 Bypass Foam Injector 1.8/2.3, ST45 Couplings, Brass
R+M Suttner ST-167 Bypass Foam Injector 1.8/2.3, ST45 Couplings, Stainless Steel
Price£395.00 ex VAT
£474.00 inc VAT
£27.50 ex VAT
£33.00 inc VAT
£464.00 ex VAT
£556.80 inc VAT
£502.00 ex VAT
£602.40 inc VAT
Max pressure350 bar–250 bar250 bar
Max flow80 LPM–––
Max temperature100°C100°C100°C100°C
Inlet½" BSP Female–ST45 / AR31 Quick Release Female (⌀ 20mm)ST45 / AR31 Quick Release Female (⌀ 20mm)
Outlet½" BSP Female–ST45 Quick Release Probe ⌀ 20 mmST45 Quick Release Probe ⌀ 20 mm
AvailabilityIn stockIn stockIn stockIn stock
