ST168 Foam Injector with Bypass & Compressed Air module ST168 Foam Injector with Bypass & Compressed Air module

R+M Suttner 350 BAR bypass injector ST-168, with compressed air module and Metering Valve -2.0mm

R&M SuttnerCompressed Air Injector

R+M Suttner 350 BAR bypass injector ST-168, with compressed air module and Metering Valve -2.0mm

SKU 200168608

Max pressure: 350 bar
Max flow: 80 LPM
Max temperature: 100°C

Inlet: ½" BSP Female
Outlet: ½" BSP Female · Thread chart

£420.00 ex VAT

£504.00 inc. VAT

In stockOrder by 2pm for next-day delivery.

Free UK mainland delivery over £200 ex VATDelivery & returns
Finance on orders over £1,000Kennet finance calculator
Bulk discounts available
Large or urgent order?Stock moves quickly. Call 015395 66193 to confirm availability.

Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

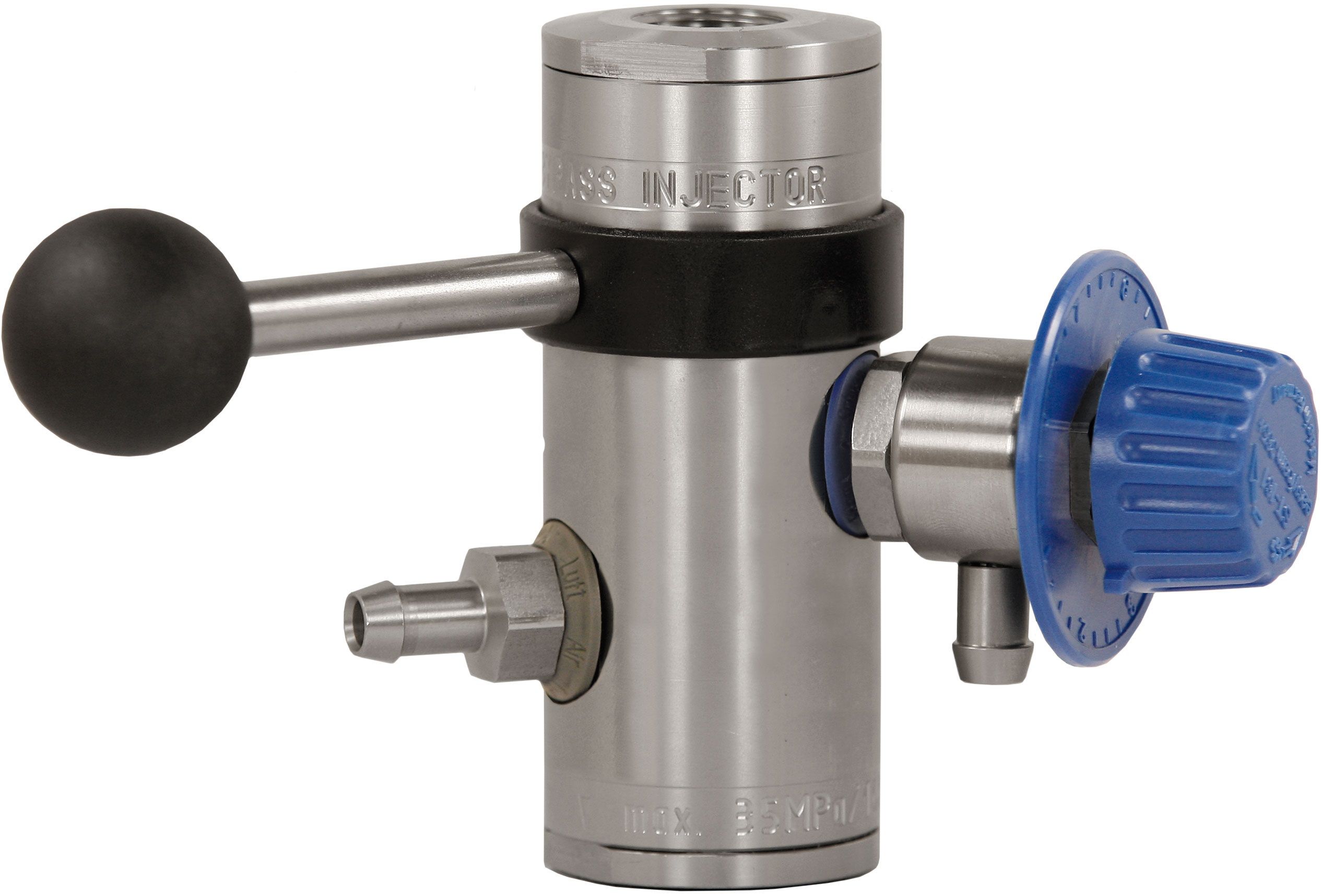

R+M Suttner ST-168 stainless steel bypass injector with a compressed air module and a metering valve, with a 2.0mm nozzle.

Inlet and outlet are 1/2" BSP female and it is rated to 350 bar, 80 litres per minute and 100°C. A lever switches between rinse and injector mode, and foam needs a foam lance without air intake as the air is fed in at the injector. It weighs 1.34kg.

Specification

Part number	200168608
Brand	R+M Suttner
Material	Stainless steel
Colour	Blue
Orifice diameter	2.0mm
Maximum pressure	350 bar
Maximum flow	80 litres per minute
Maximum temperature	100°C
Inlet	1/2" BSP female
Outlet	1/2" BSP female
Bore	9mm
Weight	1.34kg
Country of origin	Germany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

Specifications

Brand: R&M Suttner
Max Pressure Rating: 350 bar
Max Flow Rating: 80 LPM
Inlet: ½" BSP Female
Outlet: ½" BSP Female
Max Temperature Rating: 100°C

Foam & Chemical Method: Compressed Air Foam Injector
Injector / Nozzle Size: ST-168 Air & Valve Injector (⌀2.0mm)
Material: Stainless Steel
Colour: Blue
Weight: 1.34 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 80 litres per minute

Maximum temperature: 100°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Bore: 9mm

Material: Stainless steel

Colour: Blue

Orifice diameter: 2.0mm

Weight: 1.34kg

Country of origin: Germany
