R+M Suttner 24V Electric Drive Reel 1/2" F - Type 3, 300 Bar
24V Electric Drive Reel 1/2"F Type 3
24V Electric Drive Reel 1/2"F Type 3
24V Electric Drive Reel 1/2"F Type 3
24V Electric Drive Reel 1/2"F Type 3

R+M Suttner 24V Electric Drive Reel 1/2" F - Type 3, 300 Bar

SKU 739600242
Max pressure
300 bar
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
£5,200.00 ex VAT
£6,240.00 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

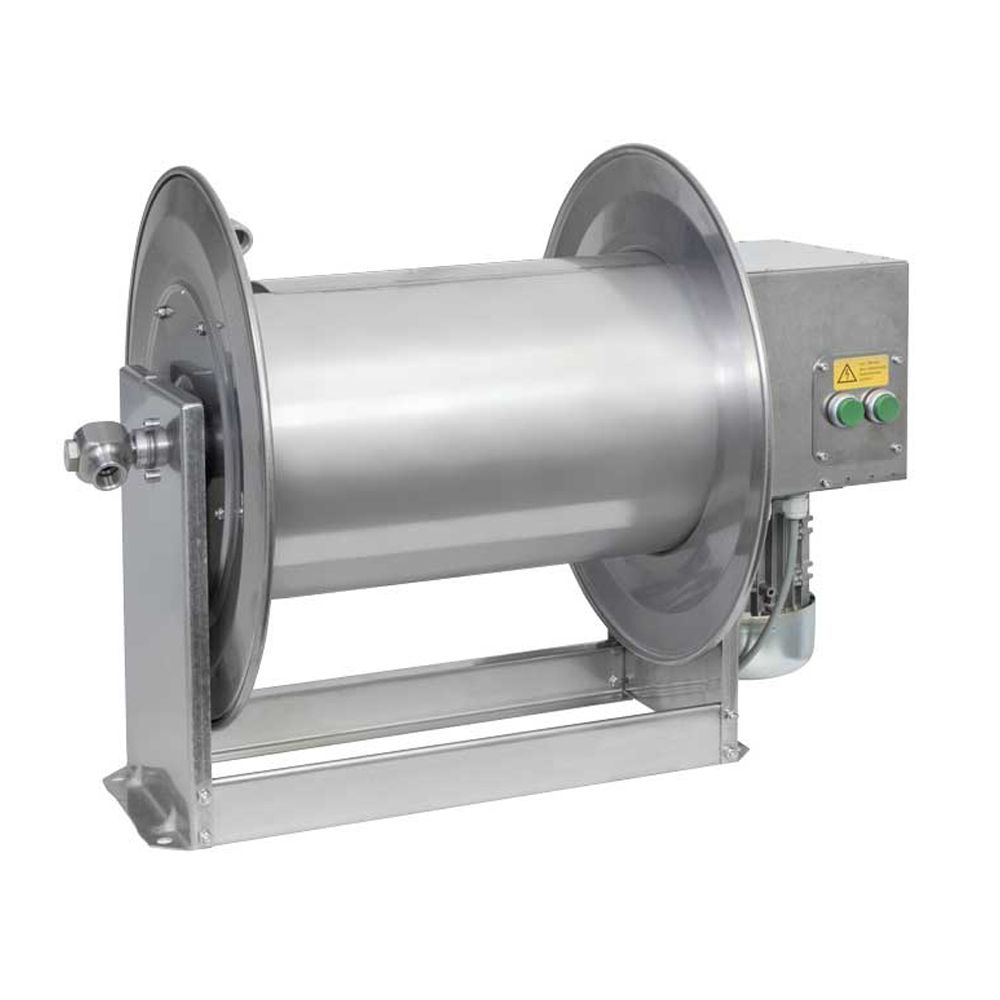

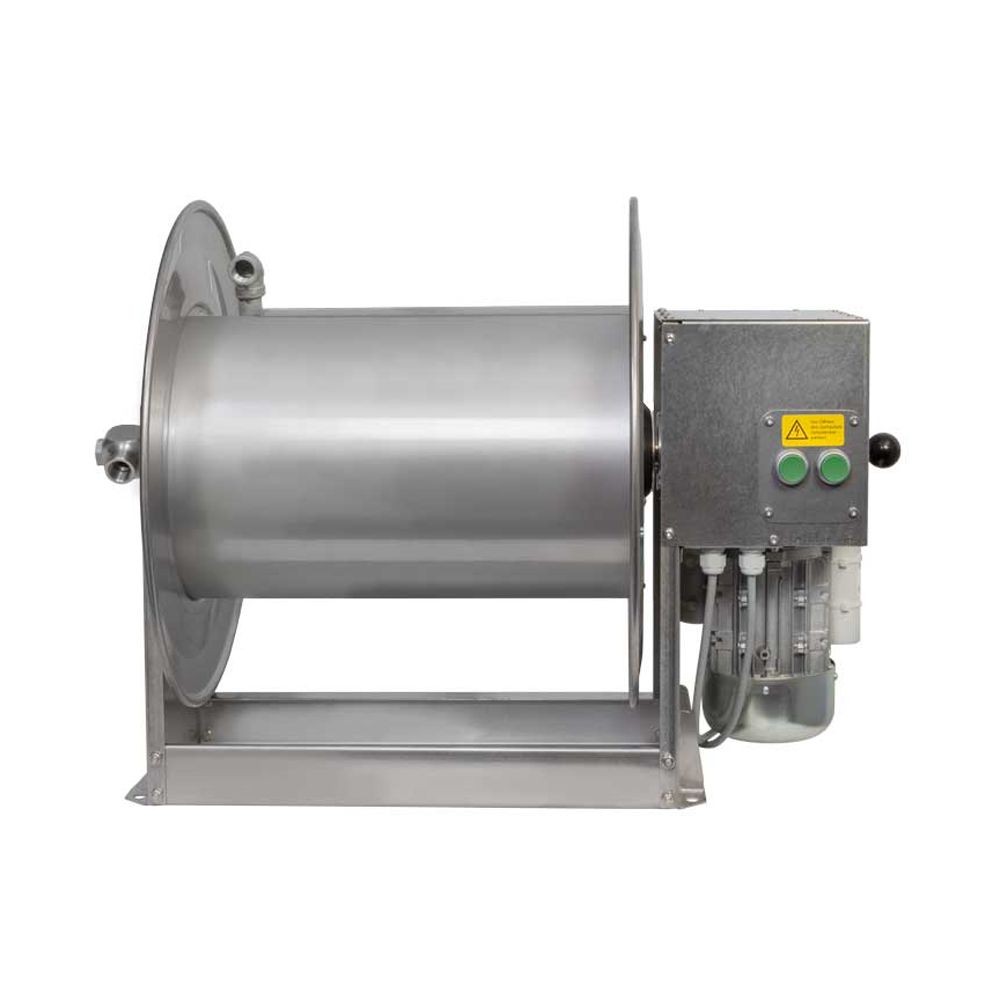

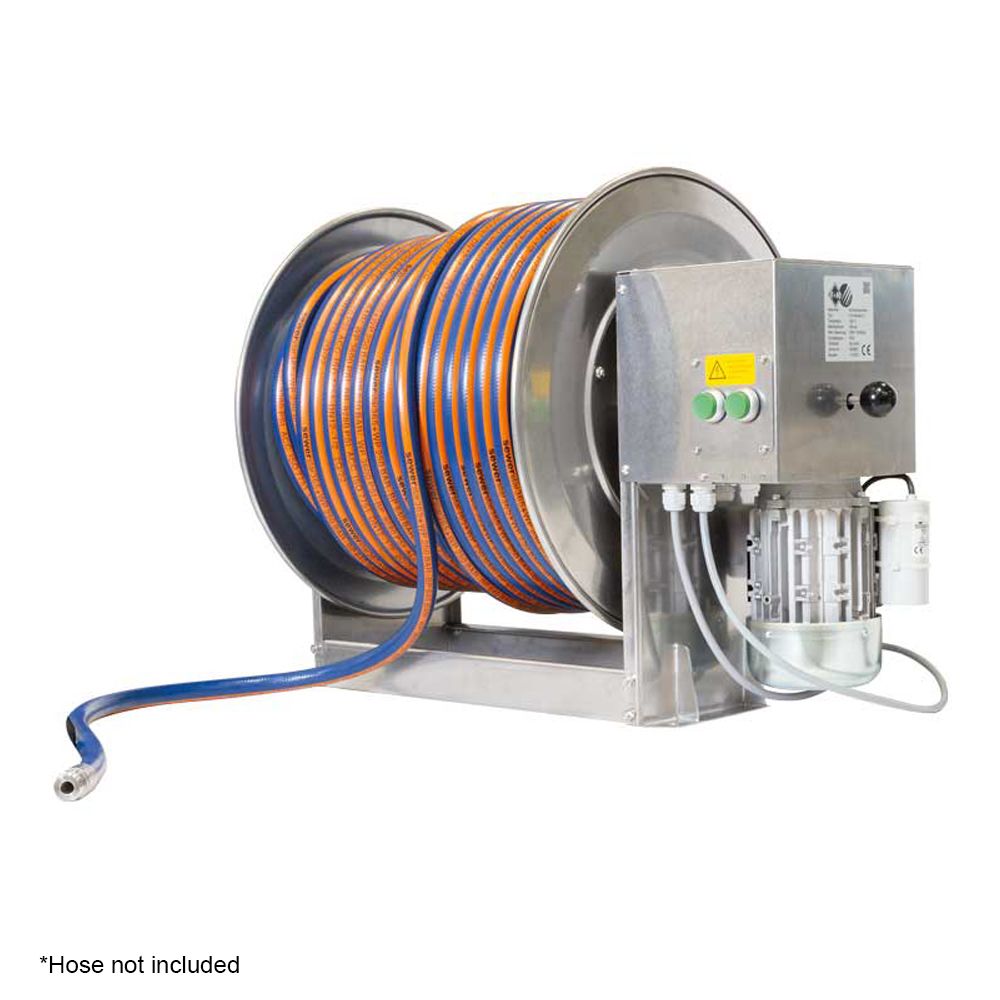

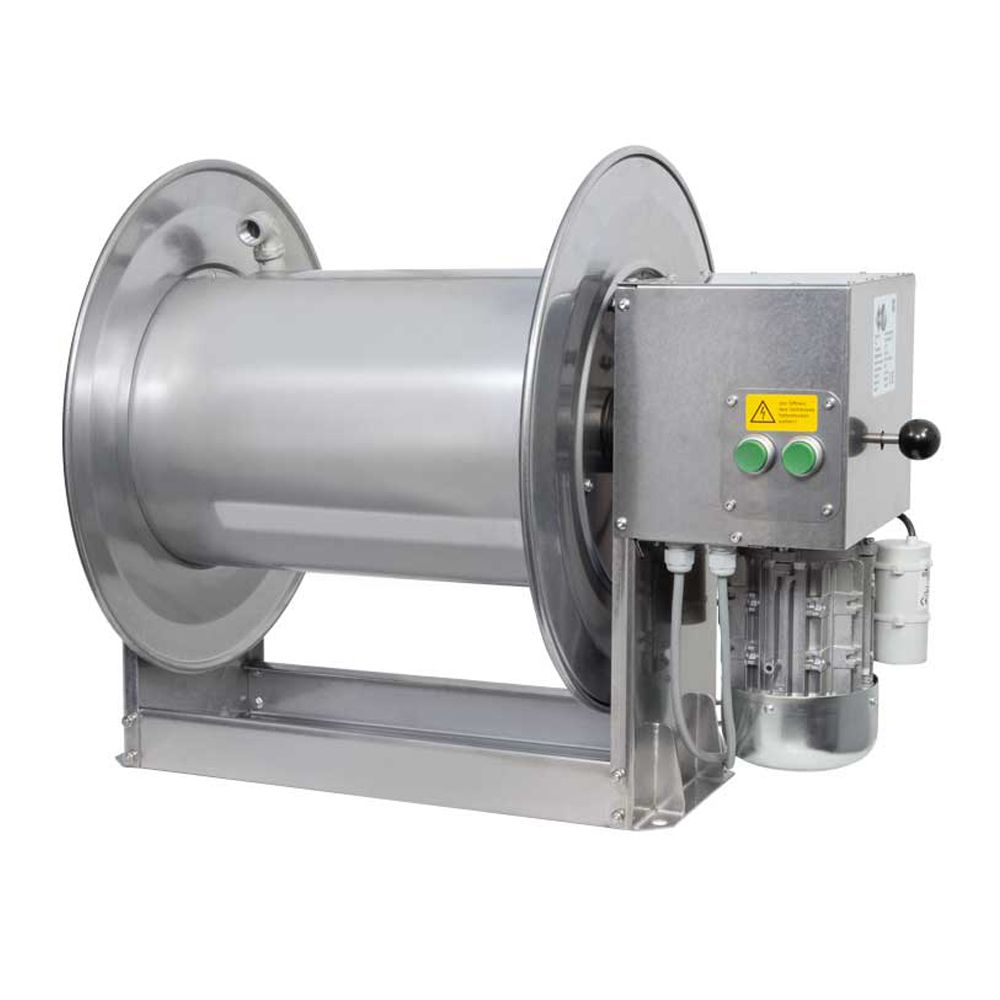

R+M Suttner STKi2Mo 24V electric drive hose reel, type 3, for longer and heavier hoses. It holds 185m of DN8 hose or 100m of DN12 hose. Two push buttons turn the drum clockwise or anticlockwise, and the motor can be disengaged with the sliding clutch to unwind the hose by hand. An optional remote control lets the motor be run from a distance.

It has a 1/2" BSP female inlet and outlet. It weighs 26kg. The reel is stainless steel and made in Germany.

Specification

Part number739600242
BrandR+M Suttner
ModelSTKi2Mo, type 3
TypeElectric drive hose reel
MaterialStainless steel
Maximum temperature90°C
Inlet1/2" BSP female
Outlet1/2" BSP female
Supply24V
Hose capacity185m of DN8 or 100m of DN12 hose
ClutchSliding clutch for manual unwinding
Controls2 push buttons, optional remote control
Voltage24V
DimensionsHeight 515mm, Width 930mm
Weight26kg
Country of originGermany

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Supplied with

Often bought with

R+M Suttner STKi2Mo 24V electric drive hose reel, type 3, for longer and heavier hoses. It holds 185m of DN8 hose or 100m of DN12 hose. Two push buttons turn the drum clockwise or anticlockwise, and the motor can be disengaged with the sliding clutch to unwind the hose by hand. An optional remote control lets the motor be run from a distance.

Delivery: 4–6 weeks.

Specifications

Brand
R&M Suttner
Max Pressure Rating
300 bar
Inlet
½" BSP Female
Outlet
½" BSP Female
Hose Reel Type
Type 03 For Outer ⌀ 17.0mm Hose Length 185m / ⌀ 22.0mm Hose Length 100m
Material
Stainless Steel
Weight
26 kg

Technical information

Maximum temperature: 90°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Supply: 24V

Voltage: 24V

Model: STKi2Mo, type 3

Type: Electric drive hose reel

Material: Stainless steel

Hose capacity: 185m of DN8 or 100m of DN12 hose

Clutch: Sliding clutch for manual unwinding

Controls: 2 push buttons, optional remote control

Dimensions: Height 515mm, Width 930mm

Weight: 26kg

Country of origin: Germany
