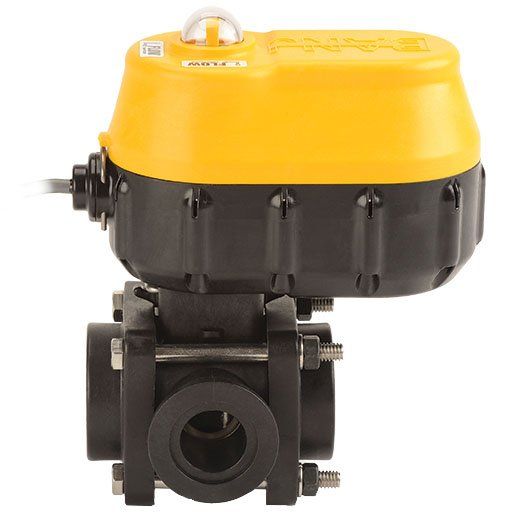

12V Elec 3WAY Valve 1"1/2F Thread/Flange

EVX offers the latest communication protocols ranging from direct control to CAN / ISO BUS to Bluetooth®** wireless technology, while diagnostic options measure and report voltage, temperature, and cycle count to warn of concerns before they become problems.

Description

12-volt DC operated

• 1 1/2" NPT F threads and 2" flange
• 1 1/2" F ball i.d. - Full port
• 12 Volt DC - 3 Wire
• 1.5 second cycle
• 17.2 Bar max pressure @21°C
• Fibreglass reinforced polypropylene body
• AISI316 stainless steel ball and stem
• PTFE seats - FKM seals
• Internally fused/auto reset
• Flow direction indicator
• IP68 waterproof
• Multiple communication protocols available

MATERIALS

• 316 stainless steel ball and stem
• Stainless steel hardware
• Fiberglass reinforced polypropylene
• PTFE seats
• FKM stem seals

On/Off

• Red = +12V DC
• Black = Ground
• White = +12VDC (Open) / 0VDC (Close)
