FOAMit 10 Gallon Fogging Unit with 3 Nozzles and Telescopic Mast

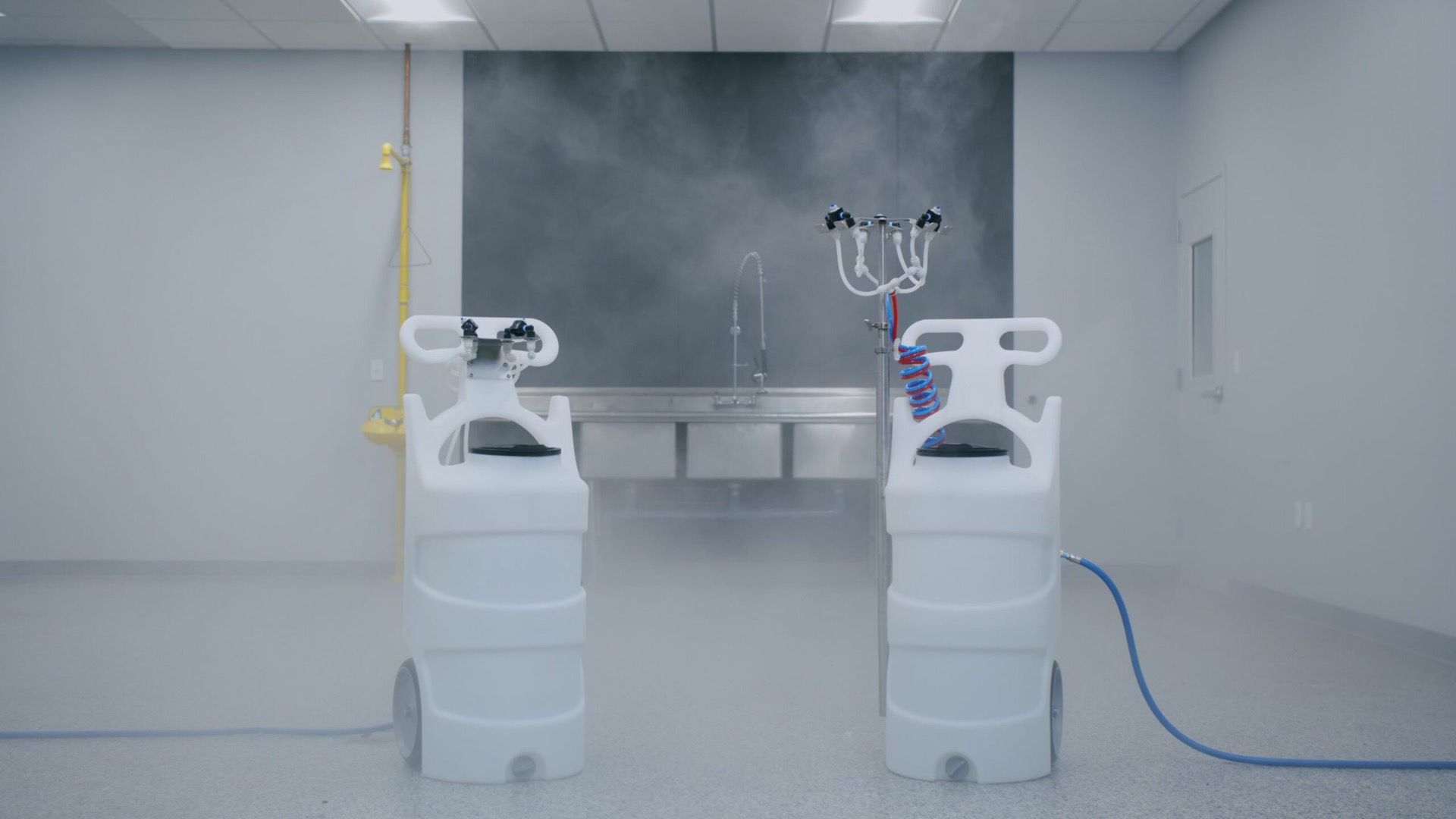

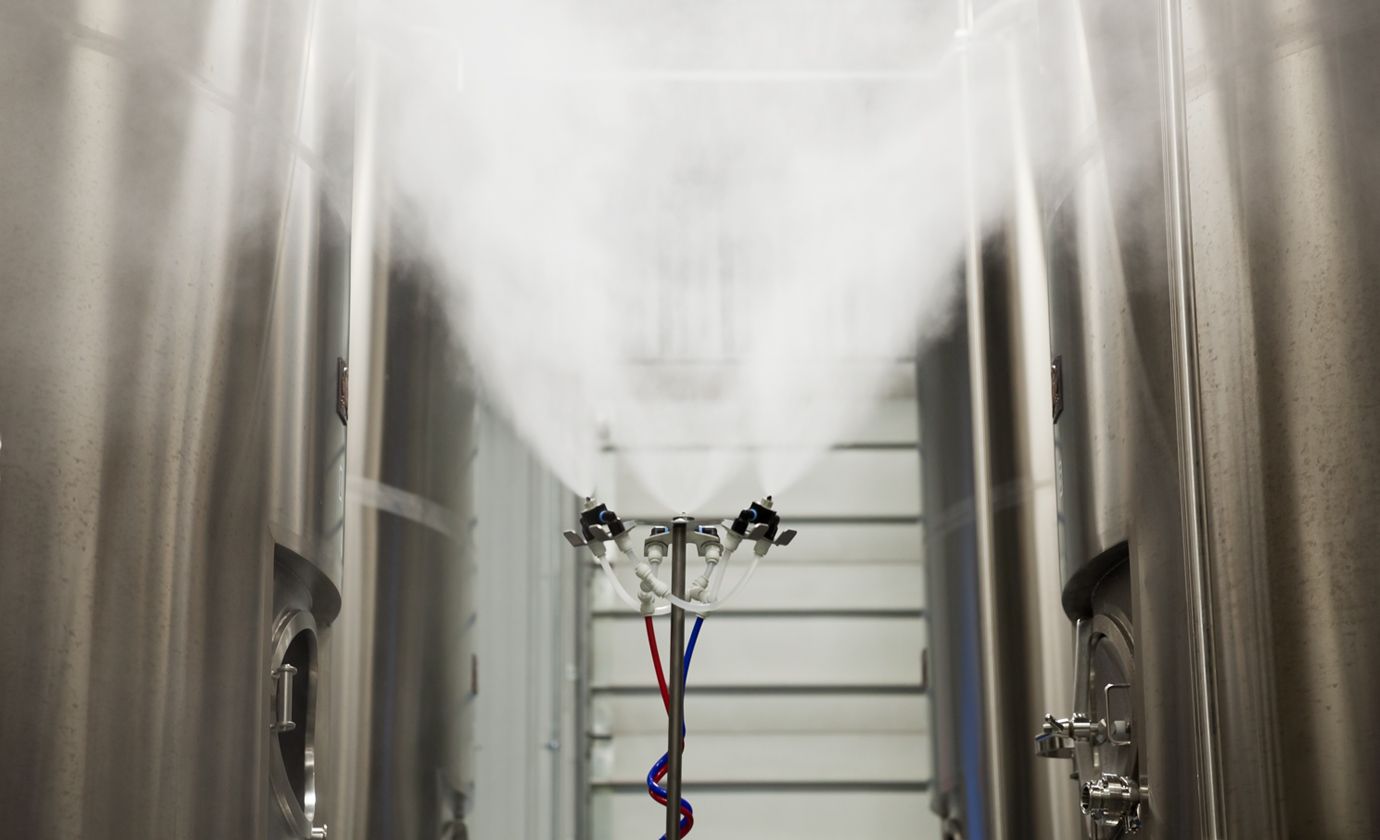

The DEMA FOAMit FG-10N-3 is a portable, compressed-air-powered fogging unit designed to apply pre-mixed chemical solutions throughout enclosed spaces. Three pneumatic fogging nozzles are mounted on an adjustable telescopic mast to help distribute a fine, consistent fog across the treatment area.

Producing droplets of approximately 15 microns at the specified operating pressure, the unit is suitable for professional sanitation, disinfection and biosecurity applications. The telescopic mast adjusts from approximately 1.1 to 2.6 metres, allowing the fog to be released at a suitable height for improved distribution.

The 37.9-litre translucent tank makes the remaining chemical level easy to see. Two large non-marking wheels allow the fogger to be moved between work areas, while the hinged rear plate provides tool-free access to the main components.

Key Features

• Genuine FOAMit equipment supplied through DEMA
• Portable industrial fogging system
• Powered entirely by compressed air
• 37.9-litre (10 US gallon) solution tank

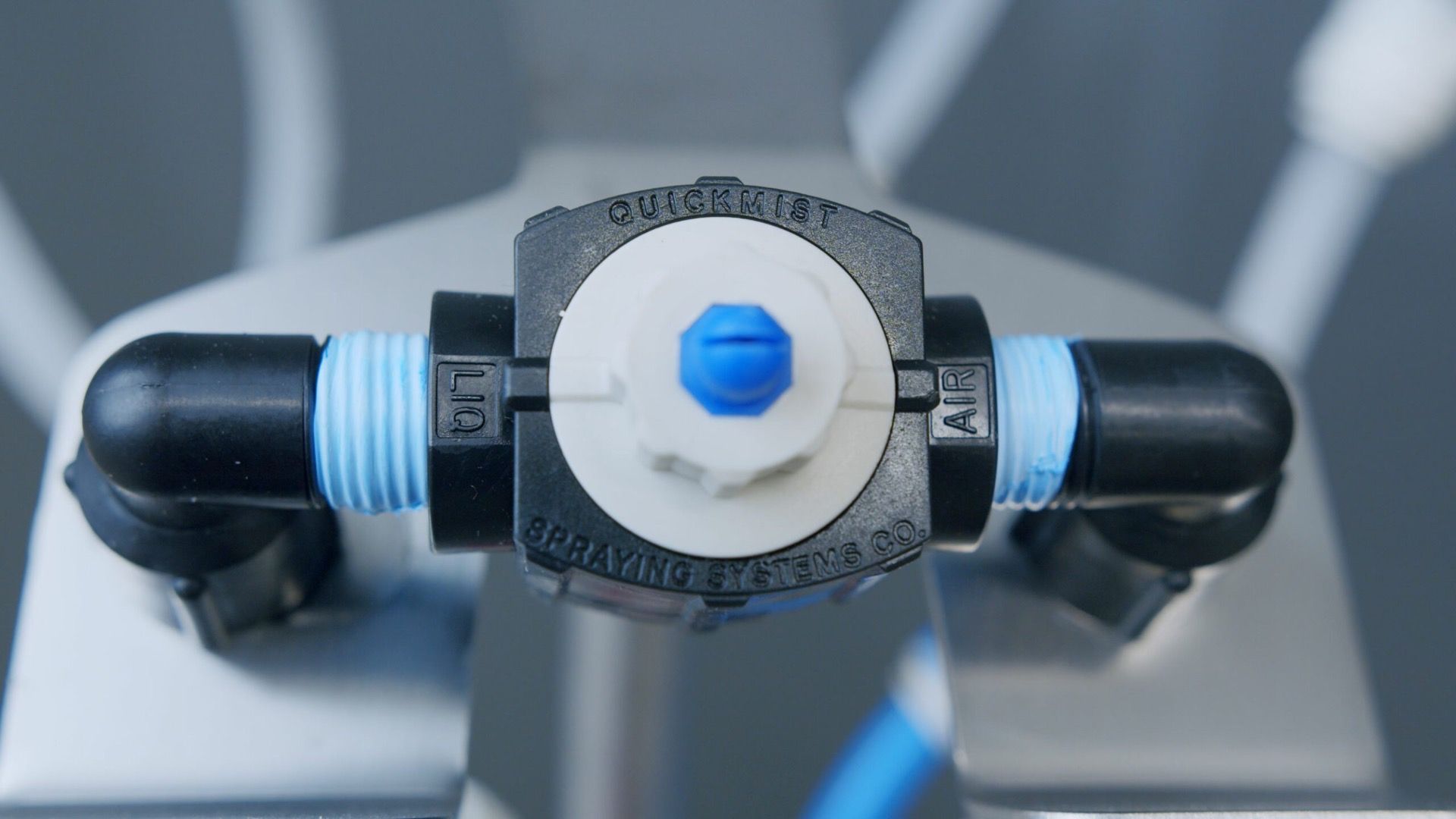

• Three pneumatic fogging nozzles
• Approximately 15-micron droplet size

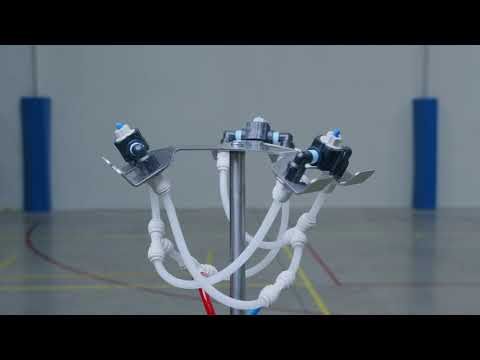

• Adjustable telescopic fogging mast
• Approximately one hour’s operation from a full tank*
• Draws from one pre-mixed chemical solution
• Polypropylene and Kynar nozzle construction
• Quick-change pump design
• Hinged rear plate for tool-free component access
• Translucent tank for easy level monitoring
• Hinged tank lid
• Front-facing drain
• In-line strainer to protect the pump from debris
• Two 254 mm non-marking wheels
• Optional delayed-start timer available

Technical Specifications

Typical Applications

The FG-10N-3 is suitable for controlled fogging within:

• Food and beverage production facilities
• Agricultural and biosecurity environments
• Manufacturing and processing areas
• Warehouses and storage facilities
• Changing rooms and washrooms
• Industrial hygiene areas
• Animal housing and agricultural buildings

Timer Option

The standard FG-10N-3 does not include a timer. A delayed-start timer is available as an option, allowing the operator to start the unit and leave the treatment area before fogging begins.

If an integrated timer is required, please confirm this when requesting a quotation.

Pump-Seal Options

The standard unit is supplied with Santoprene pump seals. Alternative seal materials are available for compatibility with different chemical formulations:

• Santoprene: standard specification
• Viton: model FG-10NV-3
• Kalrez: available for specialist chemical applications

Chemical compatibility must be confirmed before ordering. Always check the chemical manufacturer’s instructions and Safety Data Sheet to ensure the product is suitable for fogging and compatible with the selected seals and other wetted components.

What’s Included

• 37.9-litre mobile fogging unit
• Three pneumatic fogging nozzles
• Adjustable telescopic mast
• User manual

Compressed-air hose, air treatment equipment, chemicals and optional timer are not included unless stated in the quotation.

*Coverage, solution flow and operating time are approximate and can vary depending on chemical viscosity, dilution, humidity, airflow and operating conditions. Specifications are based on the manufacturer’s stated figures. View the manufacturer’s product information.

For prices, availability or assistance selecting the correct fogging equipment, contact us.
